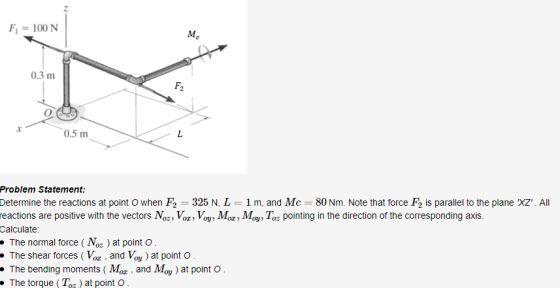

F1-100 N Mc 0.3 m F2 0.5 m Problem Statement: Determine the reactions at point O...
Determine the reactions at point O when F2=300 N, L=0.1 m, and Mc=70 Nm. Note that...
Determine the reactions at point O when F2=300
N, L=0.1 m, and Mc=70 Nm. Note that
force F2 is parallel to the plane 'XZ' .
All reactions are positive with the vectors
Noz,Vox,Voy,Mox,Moy,Toz
pointing in the direction of the corresponding axis.

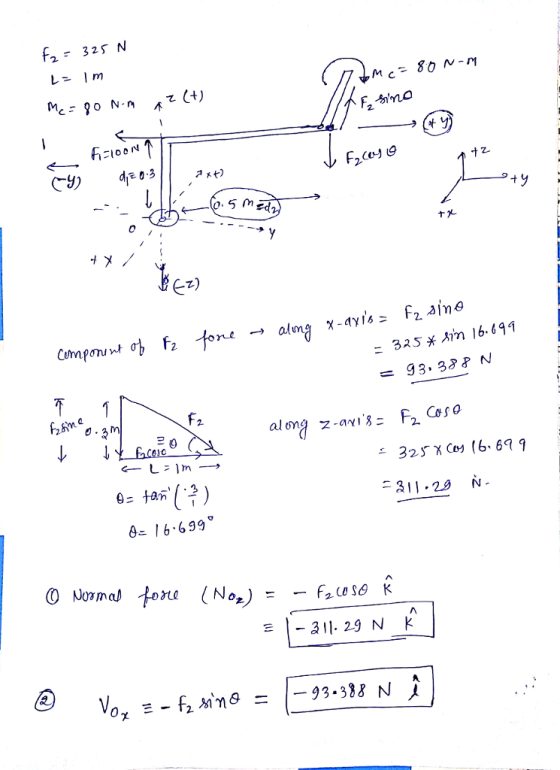

Calculate:
∙ The normal force ( Noz ) at
point O .
∙ The shear forces ( Vox , and
Voy ) at point O
.

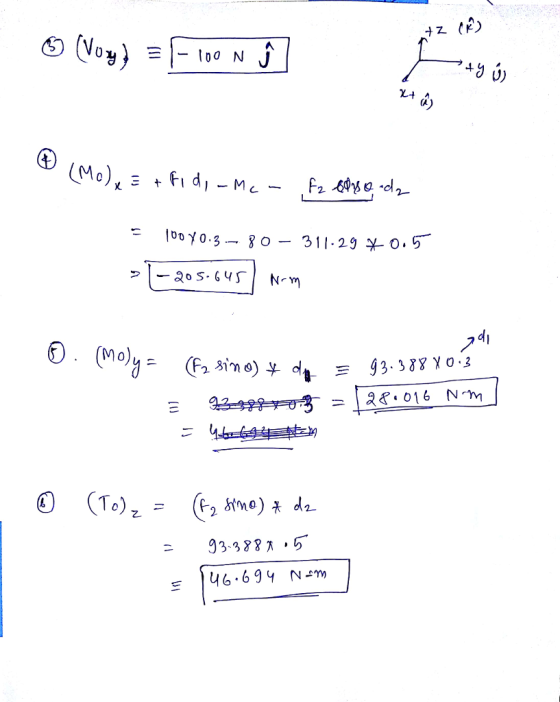

∙ The bending moments ( Mox ,
and Moy ) at point O...
Find the equivalent resultant force and couple system at points O and D, given: F1 = 45 lbs, F2 = 20 lbs, F3 = 15...
Find the equivalent resultant force and couple system at points
O and D, given:
F1 = 45 lbs,
F2 = 20 lbs,
F3 = 15 lbs,
L1 = 8 ft,
L2 = 6 ft,
L3 = 5 ft,
x,y,h
= 4,3,5, respectively
FR
= lbs Φ
= °
MO
= lb·ft
MD
= lb·ft
Find the equivalent resultant force and couple system at point
A. Express your answers as Cartesian vectors.
MB is parallel to the Z-axis
and MC is...
The pipe has a mass of 10 kg/m and is fixed to the wall at A. Three forces, F1=325 N, F2=440 N, and F3=565 N, act on t...
The pipe has a mass of 10 kg/m and is fixed to the wall at A. Three forces, F1=325 N, F2=440 N, and F3=565 N, act on the structure as shown.Part 1. Determine the resultant normal force acting on the cross
section at B.Part 2. Determine the resultant shear force acting in the x direction on the cross section at B.Part 3. Determine the resultant shear force acting in the z direction on the cross section at B.Part 4. Determine the resultant torque acting...
There are four forces acting on the point O as represented below. F1=20 N, F2= 30...
There are four forces acting on the point O as represented
below. F1=20 N, F2= 30 N, F3= 50N, F4= 25 N, and the forces F1, and
F2 are acting along the x- and y-axises, respectively. If Q1=30,
and Q2= 40, what is the net force at the point O?
F3 3 Q2 F FA
Question 3 Forces F1, F2, F3, and F4 and the moment of a couple Mc are...
Question 3 Forces F1, F2, F3, and F4 and the moment of a couple Mc are acting on a 3D rigid body as shown in Fig. 3. Convert this force and moment system into a single resultant force passing through Point F and an equivalent turning moment. Calculate both the resultant force at F and the corresponding turning moment as vectors. Further, reduce the force and moment system at F into a wrench resultant and calculate the turning moment of...
Ignore the pencil writing because its most likley wrong NAME: Exam 4 Engr225 Problem 1 (S0...
Ignore the pencil writing because its most likley wrong
NAME: Exam 4 Engr225 Problem 1 (S0 pts) Explain your work y The figure shows the cross-section of a beam. The beam is subjected to various forces and moments that cause internal loadings at the cross-section shown. Soo E Omm FEeo The figure shows the cross-section of interest and three differential elements D, E, and F. D is at the bottom and centered on the y-axis. E and F are on...
Determine the reactions at point O when F2=300
N, L=0.1 m, and Mc=70 Nm. Note that
force F2 is parallel to the plane 'XZ' .
All reactions are positive with the vectors
Noz,Vox,Voy,Mox,Moy,Toz
pointing in the direction of the corresponding axis.
Calculate:
∙ The normal force ( Noz ) at
point O .
∙ The shear forces ( Vox , and
Voy ) at point O
.
∙ The bending moments ( Mox ,
and Moy ) at point O...
Find the equivalent resultant force and couple system at points
O and D, given:
F1 = 45 lbs,
F2 = 20 lbs,
F3 = 15 lbs,
L1 = 8 ft,
L2 = 6 ft,
L3 = 5 ft,
x,y,h
= 4,3,5, respectively
FR
= lbs Φ
= °
MO
= lb·ft
MD
= lb·ft
Find the equivalent resultant force and couple system at point
A. Express your answers as Cartesian vectors.
MB is parallel to the Z-axis
and MC is...
The pipe has a mass of 10 kg/m and is fixed to the wall at A. Three forces, F1=325 N, F2=440 N, and F3=565 N, act on the structure as shown.Part 1. Determine the resultant normal force acting on the cross
section at B.Part 2. Determine the resultant shear force acting in the x direction on the cross section at B.Part 3. Determine the resultant shear force acting in the z direction on the cross section at B.Part 4. Determine the resultant torque acting...
There are four forces acting on the point O as represented
below. F1=20 N, F2= 30 N, F3= 50N, F4= 25 N, and the forces F1, and
F2 are acting along the x- and y-axises, respectively. If Q1=30,
and Q2= 40, what is the net force at the point O?
F3 3 Q2 F FA
Question 3 Forces F1, F2, F3, and F4 and the moment of a couple Mc are acting on a 3D rigid body as shown in Fig. 3. Convert this force and moment system into a single resultant force passing through Point F and an equivalent turning moment. Calculate both the resultant force at F and the corresponding turning moment as vectors. Further, reduce the force and moment system at F into a wrench resultant and calculate the turning moment of...
Ignore the pencil writing because its most likley wrong
NAME: Exam 4 Engr225 Problem 1 (S0 pts) Explain your work y The figure shows the cross-section of a beam. The beam is subjected to various forces and moments that cause internal loadings at the cross-section shown. Soo E Omm FEeo The figure shows the cross-section of interest and three differential elements D, E, and F. D is at the bottom and centered on the y-axis. E and F are on...
