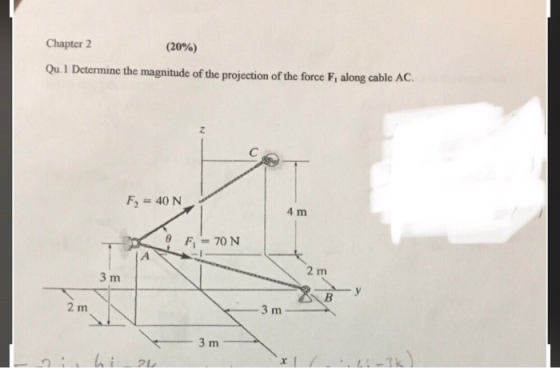

L Chapter 2 (20%) Qu.1 Determine the magnitude of the projection of the force F, along...

Question

Question

L

engineering Mechanical-Engineering

Answer 1

Answer #1

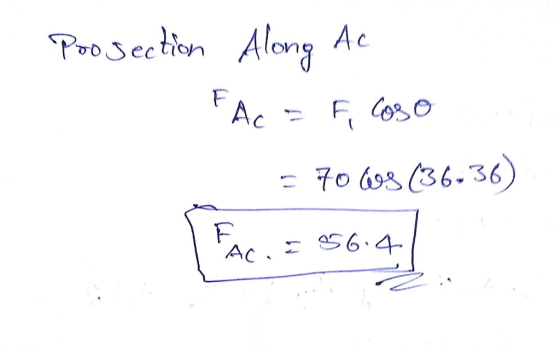

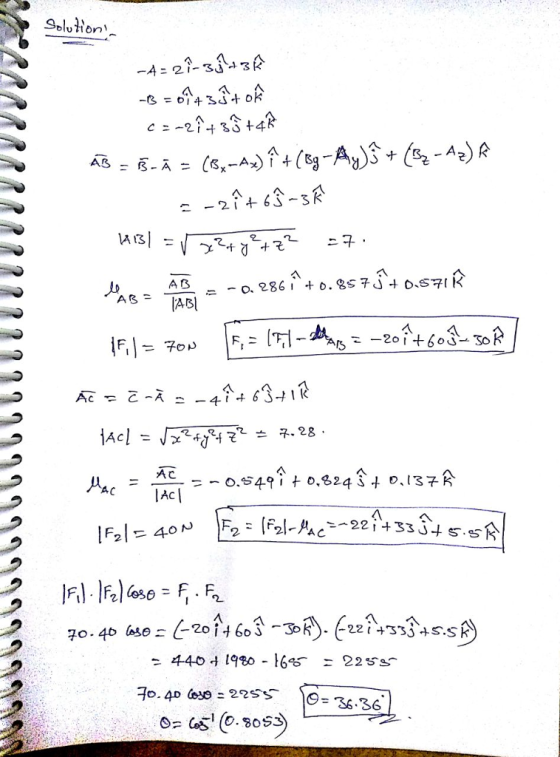

Solution A e ^ Ag--0, 2861 + o. gs? J.t 0.5귀 K ABI Mac = TACT 2SS 6.36 ㅠ○Section On

Answer 2

Similar Homework Help Questions

Part A Determine the magnitude of the projection of the force F1 along cable AC. Suppose...

Part A Determine the magnitude of the projection of the force F1 along cable AC. Suppose that α = 3.5 m and b = 4 m . (Figure 1) Express your answer to three significant figures and include the appropriate units I(FI)AC 623.598 Submit Previous Answers Request Answer Figure < 1of1 > X Incorrect; Try Again; 3 attempts remaining Provide Feedback 2 m 3 m 2 m
HW3 Determine the magnitude of the projection of force F 600 N along the u axis...

HW3 Determine the magnitude of the projection of force F 600 N along the u axis 4 mm
A force acting on the pole at point A. a.) Determine the magnitude of the projected...

A force acting on the pole at point A. a.) Determine the magnitude of the projected component of the force along the cable AB. b.) Determine the magnitude of the projected component of the force along the cable AC. c.) Determine the angle between cables AB and AC. 2 m 6 m 6 m 5 m 15° V F=1000 N

A force F with a magnitude 280 ib is applied as shown. Determine 1 The projection...

A force F with a magnitude 280 ib is applied as shown. Determine 1 The projection of F along line OA The moment about point A 2 The moment about line BR 3. 8 in 6 in F 10 in 280 1b 13 in 7 in R A force F with a magnitude 280 ib is applied as shown. Determine 1 The projection of F along line OA The moment about point A 2 The moment about line BR 3....
#1. (a) Determine the magnitude of the resultant force acting at A (as shown in Fig....

#1. (a) Determine the magnitude of the resultant force acting at A (as shown in Fig. 1). (b) Determine the magnitude of the projection of the resultant force along the line AO. (6 + 4 = 10 Points) 0.75 m FAB 300 N Fic=450 N 3 m O 2 m / 40°* 2 m B -1 m.
Problem 2.123 Part A Determine the magnitude of the projected component of the force F =...

Problem 2.123 Part A Determine the magnitude of the projected component of the force F = { 450 i- 200 j + 700 kN acting along the cable BA (Figure 1) Express your answer to three significant figures and include the appropriate units. A ? |FBA 91.25 N Previous Answers Reguest Answer Submit Figure 1 of 1 X Incorrect; Try Again; 5 attempts remaining Provide Feedback 3m 6 m

Suppose that Fab= 200 N. Part A) Determine the magnitude of the resultant force acting at...

Suppose that Fab= 200 N. Part A) Determine the magnitude of the resultant force acting at point A on the post. Part B) Determine the coordinate direction angle a (alpha) the resultant force acting at point A on the post. Part C) Determine the coordinate direction angle B (beta) the resultant force acting at point A on the post. Part D) Determine the coordinate direction angle y (gamma) the resultant force acting at point A on the post. Fac =...
Determine the magnitude of force F and its direction b in degrees if the magnitude of the resultant force R acting on the bracket is directed along the u axis

Determine the magnitude of force F and its direction b in degrees if the magnitude of the resultant force R acting on the bracket is directed along the u axis. Use R = 99 N, F1 = 69 N, F2 = 52 N, a = 50 degrees for your calculations.
Determine the magnitude of the projected component of the force F={350 i-300 j+500k} N acting along...

Determine the magnitude of the projected component of the force F={350 i-300 j+500k} N acting along the cable BA.

Chapter 2, Practice Problem 2/03 The force of magnitude F- 93 lb acts along the edge...

Chapter 2, Practice Problem 2/03 The force of magnitude F- 93 lb acts along the edge of the triangular plate. Determine the moment of F about point O. The moment is positive if counterclockwise, negative if clockwise. 19" 0 13" F-93 lb Answer: Mo si the tolerance is +/-2% would like to Show Work
