Homework Answers
Add Answer to:

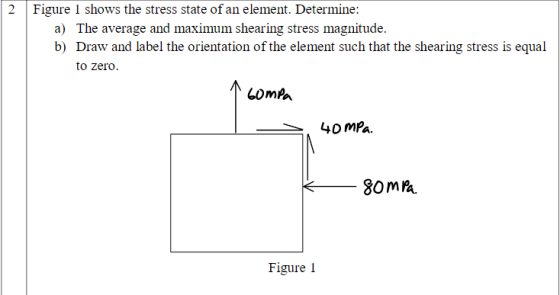

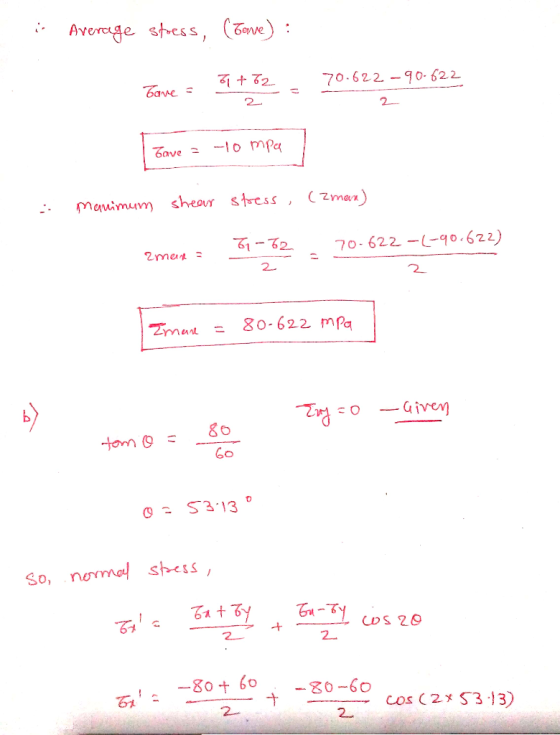

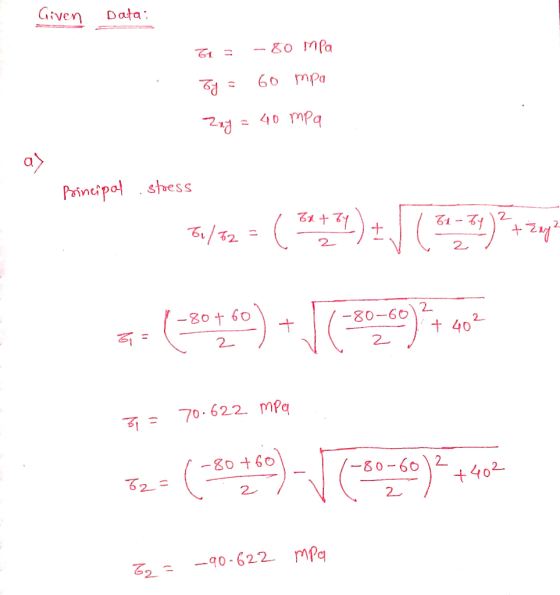

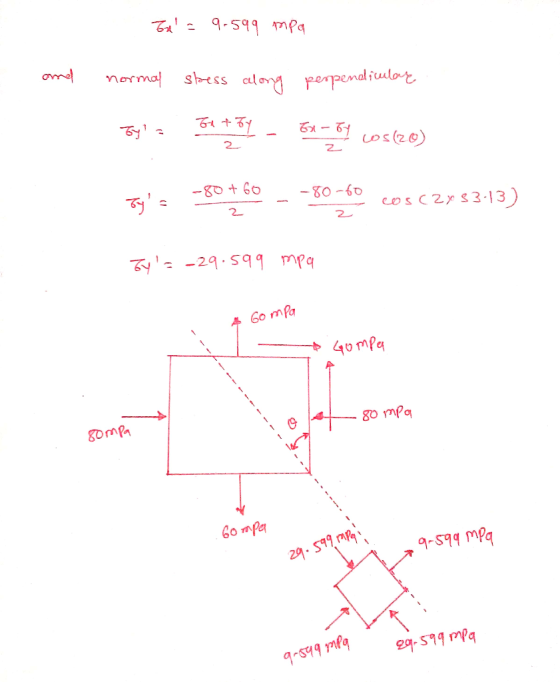

2 Figure 1 shows the stress state of an element. Determine: a) The average and maximum...
3. Figure shows a state of plane stress consists of normal stresses 60 MPa and Ly-40MPa;...
3. Figure shows a state of plane stress consists of normal stresses 60 MPa and Ly-40MPa; and unknown shear stress, The maximum principal stress was determined to be 104.34 MPa. Using Mohr's cirdle, determine a. the magnitude of the shear stress, b. the principal plane and the minimum principal stress. Then, sketch the element showing all stresses in its proper orientation, c. the maximum shear stress, associated normal stress and the orientation of the element. Then, sketch the element showing...
4) Consider a state of plane stress in the element shown in Fig 4 below; a)...
4) Consider a state of plane stress in the element shown in Fig 4 below; a) determine the average stress and maximum shearing stresses; b) draw the complete Mohr's Circle, c) find the angle, Op., and d) draw the orientation of the element for principal stresses. 0 -140 MPa 0 205 MPa Tx - 100 MPa Fig. 4
Figure 4 shows an element experiencing several stress components. Determine the following: 1. The stress components...
Figure 4 shows an element experiencing several stress components. Determine the following: 1. The stress components Oxvxr. Oysy, and T xuy, acting on the element oriented at a counter clockwise angle = 40° from the horizontal x axis 2. The principal stresses, the maximum shear stress and their associated angles For each of the stress state calculated in parts 1 and 2, show all results on sketches of properly oriented elements. Note: Solutions MUST be obtained using Mohr's circle ONLY....
LESSUI 9.3 Problem 9.19 Part D Determine the equivalent state of stress on an element at...
LESSUI 9.3 Problem 9.19 Part D Determine the equivalent state of stress on an element at the same point which represents the principal stress, and the maximum in-plane shear stress and the associated average normal stress. Also, for each case, determine the corresponding orientation of the element with respect to the element shown in the figure below. Suppose that T = 24 MPa (Figure 1) Determine the shear stress Try that acts on the element with orientation 0 .12.8° Express...
Question 4 20 pts Determine the equivalent state of stress on an element at the point...
Question 4 20 pts Determine the equivalent state of stress on an element at the point which represents (a) the principal stresses and (b) the maximum in-plane shear stress and the associated (c)average normal stress. Also, for each case, determine the corresponding "orientation" (angles) of the element with respect to the element shown and sketch the results on the element. 80 MPa 40 MPa Upload Choose a File
Solve for y. Revie Determine the equivalent state of stress on an element at the same...
Solve for y.
Revie Determine the equivalent state of stress on an element at the same point which represents the principal stress, and the maximum in-plane shear stress and the associated average normal stress. Also, for each case, determine the corresponding orientation of the element with respect to the element shown in the figure below. Suppose that I = 29 MPa. (Figure 1) Determine the normal stress on that acts on the element with orientation 1) = 29.9". Express your...
+ 25 MPa Determine the equivalent state of stress on an element at the same point...
+ 25 MPa Determine the equivalent state of stress on an element at the same point which represents (a) the principal stress, and (b) the maximum in-plane shear stress and the associated average normal stress Also, for each case, determine the corresponding orientation of the element with respect to the element shown and sketch the results on the element. - 100 MPa
40 M 45 MP 50 MPA - For the given state of stress, Part A: determine...
40 M 45 MP 50 MPA - For the given state of stress, Part A: determine analytically (using stress transformation equations): 1) the principal planes. 2) the principal stresses. 3) Sketch the stress element for the above condition 4) the orientation of the planes of maximum in-plane shearing stress, 5) the maximum in-plane shearing stress and the corresponding normal stress. 6) Sketch the stress element for the above condition Part B: Only use Mohr's circle to determine 1) the principal...
40 M 45 MP 50 MPA - For the given state of stress, Part A: determine...
40 M 45 MP 50 MPA - For the given state of stress, Part A: determine analytically (using stress transformation equations): 1) the principal planes. 2) the principal stresses. 3) Sketch the stress element for the above condition 4) the orientation of the planes of maximum in-plane shearing stress, 5) the maximum in-plane shearing stress and the corresponding normal stress. 6) Sketch the stress element for the above condition Part B: Only use Mohr's circle to determine 1) the principal...
Determine the equivalent state of stress on an element at the same point which represents the...
Determine the equivalent state of stress on an element at the same point which represents the principal stress, and the maximum in-plane shear stress and the associated average normal stress. Also, for each case determine the corresponding orientation of the element with respect to the element shown in the figure below. Suppose that 24 MPa (Figure 1) Determine the normal stress that acts on the element with orientation 8-12.8 Express your answer to three significant figures and include the appropriate...
3. Figure shows a state of plane stress consists of normal stresses 60 MPa and Ly-40MPa; and unknown shear stress, The maximum principal stress was determined to be 104.34 MPa. Using Mohr's cirdle, determine a. the magnitude of the shear stress, b. the principal plane and the minimum principal stress. Then, sketch the element showing all stresses in its proper orientation, c. the maximum shear stress, associated normal stress and the orientation of the element. Then, sketch the element showing...
4) Consider a state of plane stress in the element shown in Fig 4 below; a) determine the average stress and maximum shearing stresses; b) draw the complete Mohr's Circle, c) find the angle, Op., and d) draw the orientation of the element for principal stresses. 0 -140 MPa 0 205 MPa Tx - 100 MPa Fig. 4
Figure 4 shows an element experiencing several stress components. Determine the following: 1. The stress components Oxvxr. Oysy, and T xuy, acting on the element oriented at a counter clockwise angle = 40° from the horizontal x axis 2. The principal stresses, the maximum shear stress and their associated angles For each of the stress state calculated in parts 1 and 2, show all results on sketches of properly oriented elements. Note: Solutions MUST be obtained using Mohr's circle ONLY....
LESSUI 9.3 Problem 9.19 Part D Determine the equivalent state of stress on an element at the same point which represents the principal stress, and the maximum in-plane shear stress and the associated average normal stress. Also, for each case, determine the corresponding orientation of the element with respect to the element shown in the figure below. Suppose that T = 24 MPa (Figure 1) Determine the shear stress Try that acts on the element with orientation 0 .12.8° Express...
Question 4 20 pts Determine the equivalent state of stress on an element at the point which represents (a) the principal stresses and (b) the maximum in-plane shear stress and the associated (c)average normal stress. Also, for each case, determine the corresponding "orientation" (angles) of the element with respect to the element shown and sketch the results on the element. 80 MPa 40 MPa Upload Choose a File
Solve for y.
Revie Determine the equivalent state of stress on an element at the same point which represents the principal stress, and the maximum in-plane shear stress and the associated average normal stress. Also, for each case, determine the corresponding orientation of the element with respect to the element shown in the figure below. Suppose that I = 29 MPa. (Figure 1) Determine the normal stress on that acts on the element with orientation 1) = 29.9". Express your...
+ 25 MPa Determine the equivalent state of stress on an element at the same point which represents (a) the principal stress, and (b) the maximum in-plane shear stress and the associated average normal stress Also, for each case, determine the corresponding orientation of the element with respect to the element shown and sketch the results on the element. - 100 MPa
40 M 45 MP 50 MPA - For the given state of stress, Part A: determine analytically (using stress transformation equations): 1) the principal planes. 2) the principal stresses. 3) Sketch the stress element for the above condition 4) the orientation of the planes of maximum in-plane shearing stress, 5) the maximum in-plane shearing stress and the corresponding normal stress. 6) Sketch the stress element for the above condition Part B: Only use Mohr's circle to determine 1) the principal...
40 M 45 MP 50 MPA - For the given state of stress, Part A: determine analytically (using stress transformation equations): 1) the principal planes. 2) the principal stresses. 3) Sketch the stress element for the above condition 4) the orientation of the planes of maximum in-plane shearing stress, 5) the maximum in-plane shearing stress and the corresponding normal stress. 6) Sketch the stress element for the above condition Part B: Only use Mohr's circle to determine 1) the principal...
Determine the equivalent state of stress on an element at the same point which represents the principal stress, and the maximum in-plane shear stress and the associated average normal stress. Also, for each case determine the corresponding orientation of the element with respect to the element shown in the figure below. Suppose that 24 MPa (Figure 1) Determine the normal stress that acts on the element with orientation 8-12.8 Express your answer to three significant figures and include the appropriate...
