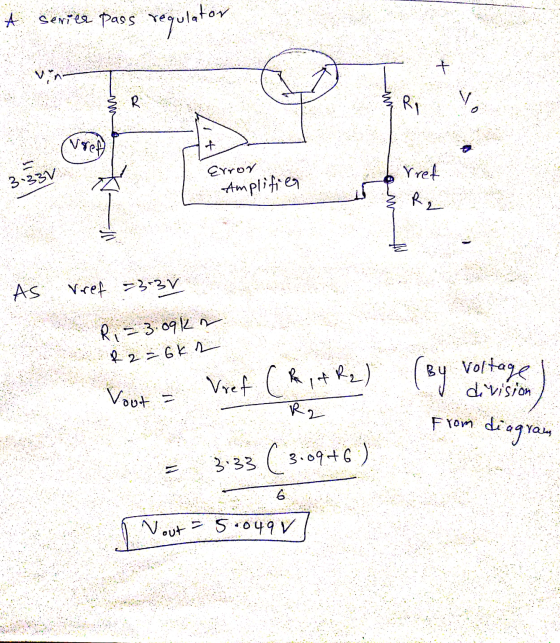

In the series pass regulator the feedback is developed across the voltage divider R1, R2 and fed back into the error amp. If R1=3.09K, R2= 6K and Vref = 3.33V, what is the output at Vo

In the series pass regulator the feedback is developed across the voltage divider R1, R2 and...
Problem 3: Determine explicitly the voltage across R3 in the circuit below R2 R1 R3 R4 (Hint: R2 and R3 are in parallel with R1... this combination is in series with R4. The total resistance can give you the total voltage drop AND then you can just analyze as a voltage divider.)
0 40 V The no-load voltage across R2 in the voltage-divider circuit shown is shown is vo.no_load 8 V The smallest load resistor that is ever connected to the divider is RL,smallest 3.6 k Ω (kilo Ohm) When the voltage divider is loaded by RLsmallest, VO is not to drop below 7.5 V A) Assume the power ratings of commercially available resistors are 1/16, 1/8, 1/4, 1, and 2 W What power rating would you specify? PR1,rating Watt PR2.rating =...
The circuit below is used as a voltage divider. The input voltage is 12 V. The output voltage (that is the voltage across R2) must be 8.3 V. The current consumed by the divider must be 4.2 mA. Find the required resistances R1 and R2. (Unit:Ohm) RI X NAA R1 - R2- Submit Answer Incorrect. Tries 1/3 Previous Tries
Good morning, I need help with the following, they all relate to
OP Amps. Thanks in advance.
2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circuit given below, where R1-18 kΩ and R2-14 k 2. 20 kΩ R1 1% R2 The voltage gain vo/vs of the circuit is Hints Referene eBook & Resources Hint#1 Check my work 3. 1000 points value Problem 05.025-Voltage follower Calculate the output voltage vo in...
Sketch the output Vout of the following circuits as a function of Vin. Mark and expressx- and y- intercepts in terms of parameters given in the drawing. (Hint: voltage divider) Vin Vref-AW R2 Vout VEE
Sketch the output Vout of the following circuits as a function of Vin. Mark and expressx- and y- intercepts in terms of parameters given in the drawing. (Hint: voltage divider) Vin Vref-AW R2 Vout VEE
II Problem (16 points) Fig.3 shows a series voltage regulator with amplifying function, A is the ideal op-amp, answer the following questions. 1.Describe the principle of the voltage regulation circuit. For example, assume the output voltage drops a small amount, illustrate what would happen. 2.Derive the voltage range of output voltage Uo on Figure. 3
II Problem (16 points) Fig.3 shows a series voltage regulator with amplifying function, A is the ideal op-amp, answer the following questions. 1.Describe the principle...
2(b): Do as directed i. What is the input impedance with feedback for a voltage-series feedback having A=-100, Ri 15 kQ, Ro 20 k0, anda feedback of B-0.25? [1 m] Which feedback topology provides high input impedance and high output impedance? And Why? [2 m] Identify the feed back topology from Figure 2 and find an expression for only B (feedback factor). [2m] RL R2 R1 Figure 2
18. The voltage divider below is the
feedback network for the amplifier shown. If the op amp in the
amplifier is a μA741, what is the closed-loop
gain of the amplifier?
Using typical values of
the μA741 parameters, what are the closed-loop input and output
resistances of the amplifier of problem 18
The STMicroelectronics datasheet for
the μA741 lists the total harmonic distortion (THD) as 6%. What
will be the total harmonic distortion in the amplifier of problem
18?
(a) The following circuit shows a linear
voltage regulator. Assuming the zener diode has specifications (VZ
= 2.5 V, IZ = 60 mA), select adequate resistor values to provide a
regulated output voltage Vo = 10 V from an unregulated voltage Vi =
15V.
(b) Calculate the power efficiency of the
regulator when a load RL = 10Ω is connected to the regulator
output.
(c) Briefly explain the terms “dropout”, “line
regulation”, and “load regulation”, as they apply to voltage...
In voltage divider bias Vcc=25V R1=10k; R2=2.2K ; Rc=3.6K and RE=1K and beta =90 what are the emitter, collector and base voltages?
