. Rewrite this forwarding table, which uses longest prefix matching, using the a.b.c.d/x notation instead of...

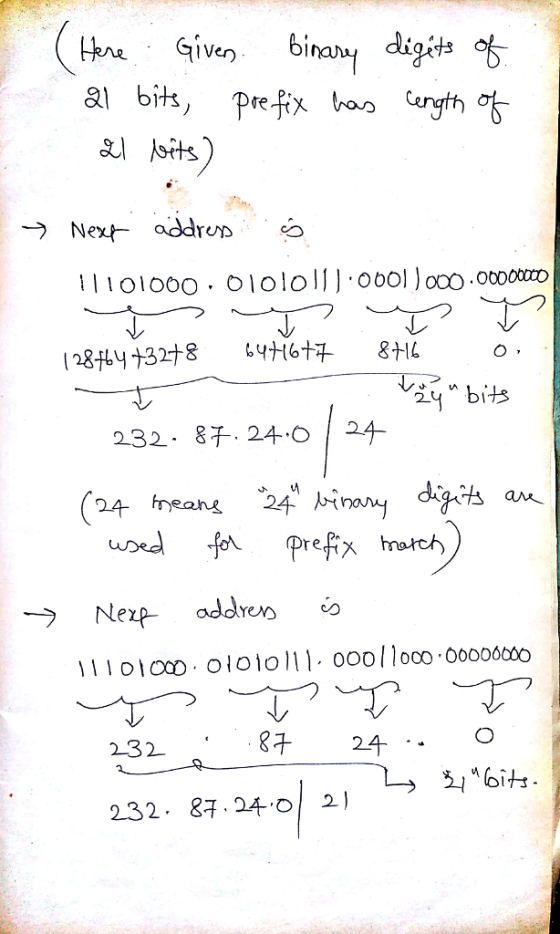

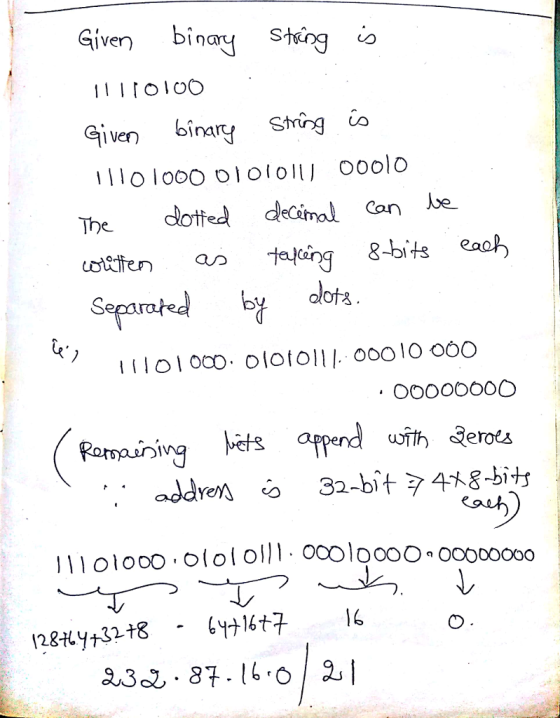

. Rewrite this forwarding table, which uses longest prefix matching, using the a.b.c.d/x notation instead of the binary string notation.

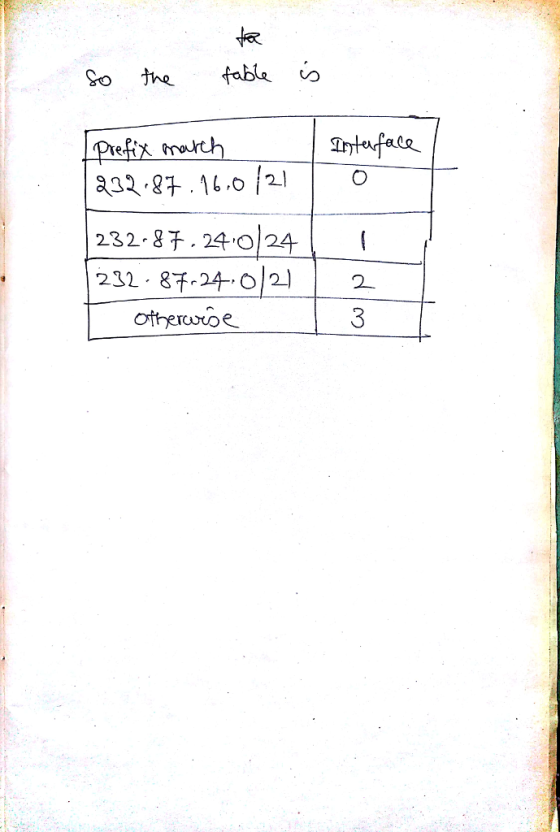

| Prefix Math | Interface |
| 11101000 01010111 00010 | 0 |
| 11101000 01010111 00011000 | 1 |
| 11101000 01010111 00011 | 2 |
| otherwise | 3 |
Homework Answers
