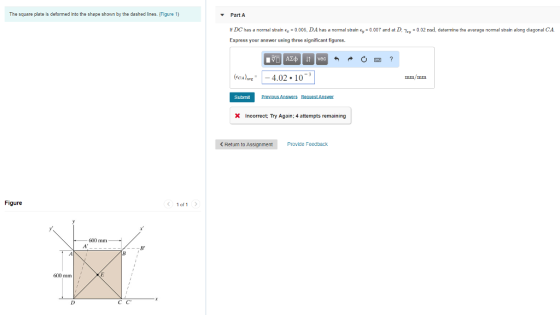

The square plate is deformed into the shape shown by the dashed lines. (Figure 1) Part...
Show your work please : Problem 2.29 The rectangular plate is deformed into the shape shown by the dashed lines. Su...
Show your work please :
Problem 2.29 The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 330 mm and b= 420 mm . (Figure 1) Figure 1 B of 1 Part A Determine the average normal strain along diagonal AC. Express your answer using three significant figures. Part B Determine the average shear strain at corner A. Express your answer to three significant figures and include the appropriate units.
Correct The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that...
Correct The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a 260 mm and b 410 mm (Figure 1) Part B Determine the average shear strain at corner A. Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 6 mm (Ta),,-10.004976 Irad 2 mm 6 mm ID Submit P ious Answers Request Answer XIncorrect; Try Again 1 2 mm 1 5 mm < Return to Assignment Provide...
Q.2(30pts) The rectangular plate is deformed into the shape of a parallelogram shown by the dashed...
Q.2(30pts) The rectangular plate is deformed into the shape of a parallelogram shown by the dashed lines. Determine the average shear strain Yxy at corners A and B. בחובו (accuracy:3 decimal places.) 300 mm ---- 75 mm - 400 mm
Will rate for Correct answer, please show full work The rectangular plate is deformed into the...
Will rate for Correct answer, please show full work
The rectangular plate is deformed into the shape shown by the dashed lines. The plate is made of a material whose stress-strain diagram is given below. a) Calculate the normal strain of diagonal AC. b) Calculate the shear strain at corner A. c) What stress is needed to cause the strain calculated at A? d) After all stress is removed from the plate, what is the permanent strain at corner A?...
The square detorms into the position shown by the dashed lines. (Figure 1) The dirmensions are S56mm, s' = 59 mm, Δ...
The square detorms into the position shown by the dashed lines. (Figure 1) The dirmensions are S56mm, s' = 59 mm, Δ#1 = 4 mm, and Δ*2 = 6 mm. Side D 'B'remains horizantal. (vi),,--0.221 rad Submit X Incorrect; Try Again; One attempt remaining Part C Determine the shear strain at C relative to the z, y axes. Figure 1 of 1 Express your anser to three significant figures and include appropriate units. As y0.2062 rad 91.5 Submit Previous Answers...
Part A) Determine the average normal strain along diagonal AC. Part B) determine the average shear...
Part A) Determine the average normal strain along diagonal
AC.
Part B) determine the average shear strain at corner A.
The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a =250 mm and b= 410 mm (Figure 1) Figure 1 of 1 6 mm h 2 2 mm mm 6 mm 2 mm B 3 mm
The square deforms into the position shown by the dashed lines. (Figure 1) The dimensions are...
The square deforms into the position shown by the dashed lines. (Figure 1) The dimensions are S 49 mm, S,-54 mm, ΔΧ1-4 mm, and ΔΖ2 : 8 mm. Side D'B, remains horizontal Part A Determine the shear strain at A relative to the z, y axes. Express your answer to three significant figures and include appropriate units Tay262-102 rad Previous A nswe Figure 1 of 1 Correct Ar Part B Determine the shear strain at B relative to the z,...
The rectangular plate is subjected to the deformation shown by the dashed line. The dimensions are...
The rectangular plate is subjected to the deformation shown by
the dashed line.
The dimensions are X=150 mmX=150 mm, Y=225 mmY=225 mm, and Δy=4
mmΔy=4 mm.
Determine the average shear strain in the plate.
Express your answer to three significant figures. ( rad )
Ay Problem 2.8 The rectangular plate is subjected to the deformation shown by the dashed line X Ay The dimensions are X = 150 mm, Y = 225 mm, and Ay = 4 mm. Part A...
Show your work please :
Problem 2.29 The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 330 mm and b= 420 mm . (Figure 1) Figure 1 B of 1 Part A Determine the average normal strain along diagonal AC. Express your answer using three significant figures. Part B Determine the average shear strain at corner A. Express your answer to three significant figures and include the appropriate units.
Correct The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a 260 mm and b 410 mm (Figure 1) Part B Determine the average shear strain at corner A. Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 6 mm (Ta),,-10.004976 Irad 2 mm 6 mm ID Submit P ious Answers Request Answer XIncorrect; Try Again 1 2 mm 1 5 mm < Return to Assignment Provide...
Q.2(30pts) The rectangular plate is deformed into the shape of a parallelogram shown by the dashed lines. Determine the average shear strain Yxy at corners A and B. בחובו (accuracy:3 decimal places.) 300 mm ---- 75 mm - 400 mm
Will rate for Correct answer, please show full work
The rectangular plate is deformed into the shape shown by the dashed lines. The plate is made of a material whose stress-strain diagram is given below. a) Calculate the normal strain of diagonal AC. b) Calculate the shear strain at corner A. c) What stress is needed to cause the strain calculated at A? d) After all stress is removed from the plate, what is the permanent strain at corner A?...
The square detorms into the position shown by the dashed lines. (Figure 1) The dirmensions are S56mm, s' = 59 mm, Δ#1 = 4 mm, and Δ*2 = 6 mm. Side D 'B'remains horizantal. (vi),,--0.221 rad Submit X Incorrect; Try Again; One attempt remaining Part C Determine the shear strain at C relative to the z, y axes. Figure 1 of 1 Express your anser to three significant figures and include appropriate units. As y0.2062 rad 91.5 Submit Previous Answers...
Part A) Determine the average normal strain along diagonal
AC.
Part B) determine the average shear strain at corner A.
The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a =250 mm and b= 410 mm (Figure 1) Figure 1 of 1 6 mm h 2 2 mm mm 6 mm 2 mm B 3 mm
The square deforms into the position shown by the dashed lines. (Figure 1) The dimensions are S 49 mm, S,-54 mm, ΔΧ1-4 mm, and ΔΖ2 : 8 mm. Side D'B, remains horizontal Part A Determine the shear strain at A relative to the z, y axes. Express your answer to three significant figures and include appropriate units Tay262-102 rad Previous A nswe Figure 1 of 1 Correct Ar Part B Determine the shear strain at B relative to the z,...
The rectangular plate is subjected to the deformation shown by
the dashed line.
The dimensions are X=150 mmX=150 mm, Y=225 mmY=225 mm, and Δy=4
mmΔy=4 mm.
Determine the average shear strain in the plate.
Express your answer to three significant figures. ( rad )
Ay Problem 2.8 The rectangular plate is subjected to the deformation shown by the dashed line X Ay The dimensions are X = 150 mm, Y = 225 mm, and Ay = 4 mm. Part A...
