Effective Length 4.7-2 An, HSS 10 x 6 x yis with F 46 ksi is used...

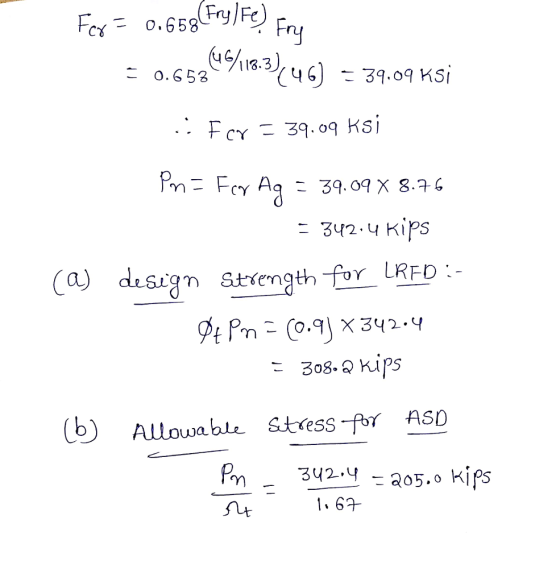

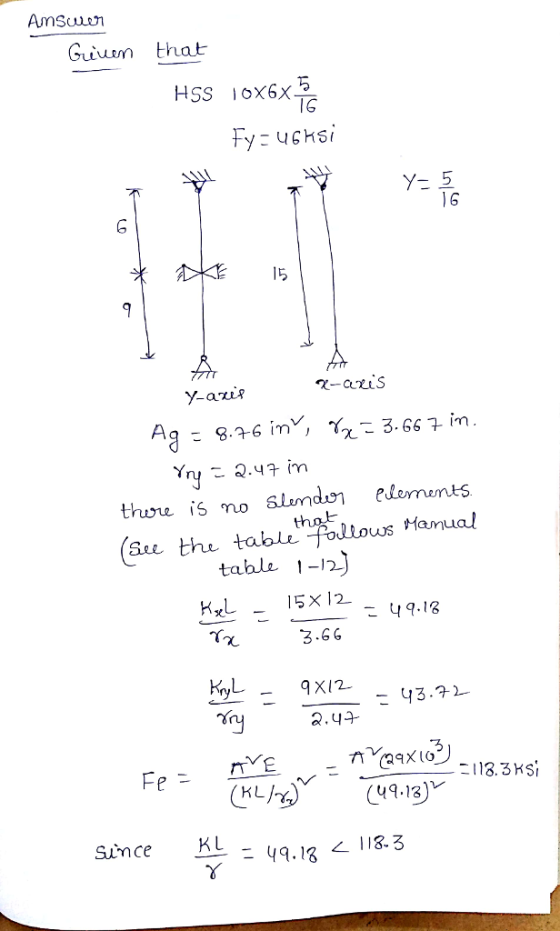

Effective Length 4.7-2 An, HSS 10 x 6 x yis with F 46 ksi is used as a column. The length is 15 feet. Both ends are pinned and there is support against weak axis buckling at a point 6 feet from the top. Determine a. the design strength for LRFD. b. the allowable stress for ASD.
Homework Answers
Add Answer to:
Effective Length 4.7-2 An, HSS 10 x 6 x yis with F 46 ksi is
used...
A HSS 12x 8 x % with Fy 46 ksi is used as a column member....
A HSS 12x 8 x % with Fy 46 ksi is used as a column member. The length of the member is 15 feet. Both ends are pinned, and there is an additional support against the weak axis buckling at a point 6 ft. from the top (Fig. P3). Determine the design compressive strength of the column for LRFD. 15' y-axis x-axis Fig, P3
Problem 2. Design and select an ASTM A992 (Fy" 50 ksi) W-shape column to carry an...
Problem 2. Design and select an ASTM A992 (Fy" 50 ksi) W-shape column to carry an axial dead load of 140 kips and live lond of 420 kips. The column is 30 feet long, and is pinned top and bottom in both axes. In addition, the column is laterally braced about the y-y axis (local weak/minor axis of the section) and torsionally braced at the midpoint. Limit the column size to a nominal 14 in. shape, that is W14 shape...
11. (10 points) Check to determine if a W14x159 used as a column can support an...
11. (10 points) Check to determine if a W14x159 used as a column can support an axial dead load of 250k and an axial live load of 1000k if the length of the column is 14 feet and the value of G for Joint A has been determined to be 0.8. Use the LRFD Design Method and assume that the columns are bending about their y axis as shown. (Hint: The answer is in the Manual) W14x159 Fixed Base at...
Could you please use AISC steel manual for the parts needed? 15th edition 2. The frame...
Could you please use AISC steel
manual for the parts needed? 15th edition
2. The frame shown in the figure below is unbraced, and bending is about the x-axis of all members. All beams are W16 x 40. Column BC is supported in the weak direction (i.e 2 direction perpendicular to the plane of the frame) at mid height and it is assumed pinned at both ends in this direction (i.e. Ky=1) Assuming that all columns are rectangular HSS 14x6x5/8,...
The A992 steel column can be considered pinned at its top and bottom and braced against...
The A992 steel column can be considered pinned at its top and bottom and braced against its weak axis at the mid-height (Figure 1) Part A Determine the maximum allowable force P that the column can support without buckling. Apply a F. S. = 2 against buckling. Take A = 7.4 (10-3) m² , 1x = 88.1 (10–6 m4, and 1y = 18.2 (10-6 m4. Express your answer to three significant figures and include the appropriate units. นกิdo rede resett...
Design Column B2: KL 30, Use an HSS section, Fy 46 ksi. pe 0.9 Use table 10.5 from handout Calcul...
Answer the following blanks for design column B2
Design Column B2: KL 30, Use an HSS section, Fy 46 ksi. pe 0.9 Use table 10.5 from handout Calculate the following: Column tributary area: Artb (At2) Total column load: Pu (kips)- Column nominal Load: Pr (Kkips)- Lightest Column Section: Column Selection Table Pu (kips)- BLE 10.5 Safe Factored Loads for Selected 46-ksi Yield Stress Tube Steel Columns Effective Length (KL) in feet Area (in.2) 06 8 10 12 14 16 18...
A single compression member of 30 ft effective length is obtained by connecting two C6 x...
A single compression member of 30 ft effective length is
obtained by connecting two C6 x 13 steel channels with lacing bars
as shown in Figure 1. Determine the distance d for this
cross-section corresponding to the most efficient design against
buckling (the most efficient design occurs when the resistance to
buckling is equal in both planes of symmetry).
C6x 13 properties: A (in) d (in) bf (in) tf (in) tw (in) Ix (in“) rx (in) ly (in) ry (in)...
Problem #1: TO SELECT THE MOST ECONOMICAL Wio SHAPE COLUMN ZO FEET IN HEIGHT SUPPORT AH...
Problem #1: TO SELECT THE MOST ECONOMICAL Wio SHAPE COLUMN ZO FEET IN HEIGHT SUPPORT AH AXIAL LORD OF 370 KIPS using soksi STEEL! ASSUME A FIXED BASE ANDA PINGED TOP (CASE C) WIDE FLANGE SHAPES HP Axis Y-Y Theoretical Dimensions and Properties for Designing Flange Axis X-X | Weight Area Depth Web Section per of of Thick- Thick- Number Foot Section Section Width S 'T Sy Ty ness ness < * A by tw in. in. in.' in. in....
A HSS 12x 8 x % with Fy 46 ksi is used as a column member. The length of the member is 15 feet. Both ends are pinned, and there is an additional support against the weak axis buckling at a point 6 ft. from the top (Fig. P3). Determine the design compressive strength of the column for LRFD. 15' y-axis x-axis Fig, P3
Problem 2. Design and select an ASTM A992 (Fy" 50 ksi) W-shape column to carry an axial dead load of 140 kips and live lond of 420 kips. The column is 30 feet long, and is pinned top and bottom in both axes. In addition, the column is laterally braced about the y-y axis (local weak/minor axis of the section) and torsionally braced at the midpoint. Limit the column size to a nominal 14 in. shape, that is W14 shape...
11. (10 points) Check to determine if a W14x159 used as a column can support an axial dead load of 250k and an axial live load of 1000k if the length of the column is 14 feet and the value of G for Joint A has been determined to be 0.8. Use the LRFD Design Method and assume that the columns are bending about their y axis as shown. (Hint: The answer is in the Manual) W14x159 Fixed Base at...
Could you please use AISC steel
manual for the parts needed? 15th edition
2. The frame shown in the figure below is unbraced, and bending is about the x-axis of all members. All beams are W16 x 40. Column BC is supported in the weak direction (i.e 2 direction perpendicular to the plane of the frame) at mid height and it is assumed pinned at both ends in this direction (i.e. Ky=1) Assuming that all columns are rectangular HSS 14x6x5/8,...
The A992 steel column can be considered pinned at its top and bottom and braced against its weak axis at the mid-height (Figure 1) Part A Determine the maximum allowable force P that the column can support without buckling. Apply a F. S. = 2 against buckling. Take A = 7.4 (10-3) m² , 1x = 88.1 (10–6 m4, and 1y = 18.2 (10-6 m4. Express your answer to three significant figures and include the appropriate units. นกิdo rede resett...
Answer the following blanks for design column B2
Design Column B2: KL 30, Use an HSS section, Fy 46 ksi. pe 0.9 Use table 10.5 from handout Calculate the following: Column tributary area: Artb (At2) Total column load: Pu (kips)- Column nominal Load: Pr (Kkips)- Lightest Column Section: Column Selection Table Pu (kips)- BLE 10.5 Safe Factored Loads for Selected 46-ksi Yield Stress Tube Steel Columns Effective Length (KL) in feet Area (in.2) 06 8 10 12 14 16 18...
A single compression member of 30 ft effective length is
obtained by connecting two C6 x 13 steel channels with lacing bars
as shown in Figure 1. Determine the distance d for this
cross-section corresponding to the most efficient design against
buckling (the most efficient design occurs when the resistance to
buckling is equal in both planes of symmetry).
C6x 13 properties: A (in) d (in) bf (in) tf (in) tw (in) Ix (in“) rx (in) ly (in) ry (in)...
Problem #1: TO SELECT THE MOST ECONOMICAL Wio SHAPE COLUMN ZO FEET IN HEIGHT SUPPORT AH AXIAL LORD OF 370 KIPS using soksi STEEL! ASSUME A FIXED BASE ANDA PINGED TOP (CASE C) WIDE FLANGE SHAPES HP Axis Y-Y Theoretical Dimensions and Properties for Designing Flange Axis X-X | Weight Area Depth Web Section per of of Thick- Thick- Number Foot Section Section Width S 'T Sy Ty ness ness < * A by tw in. in. in.' in. in....
