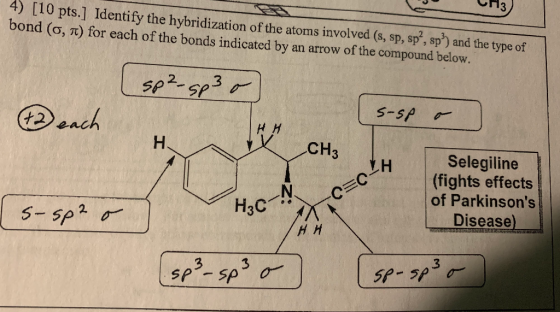

![13 4) [10 pts.] Identify the hybridization of the atoms involved (s, sp, sp, sp) and the type of bond (o, n) for each of the](http://img.homeworklib.com/questions/b73bac00-9a39-11eb-a02c-a1f1a8421076.png?x-oss-process=image/resize,w_560)
Could you please very detailed
and color-coded explain to me what is happening, (VERY
DETAILED,please)
Homework Answers
First of all single bond is formed by sp3 hybridisation and s orbital of Hydrogen atoms
Double bond is formed by sp2 hybridisation by Carbon, oxygen and nitrogen etc.
Triple bond is formed by sp hybridisation by Carbon and nitrogen.
Here top left box: sigma bond between sp2 and sp3 carbons.
Top right box: sigma bond between sp hybridisation carbon and s orbital of Hydrogen.
Bottom left box: Sigma bond between sp2 hybridisation carbon and s orbital of Hydrogen
Bottom middle box: Sigma bond between sp3-sp3 Carbon and nitrogen atoms
Bottom right box: Sigma bond between sp hybridisation and sp3 hybridisation carbon.
