Question

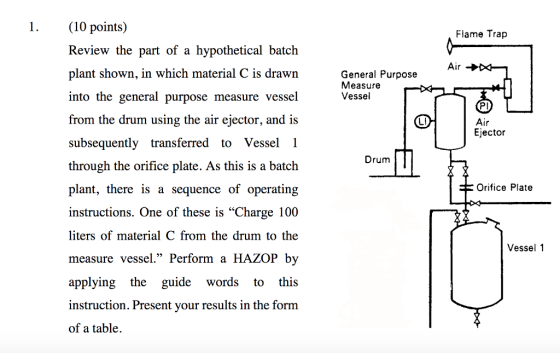

1.(10 points) Flame Trap Review the part of a hypothetical batch plant shown, in which material C is drawn into the general purpose measure vessel from the drum using the air ejector, and is subsequently transferred to Vessel 1 through the orifice plate. As this is a batch plant, there is a sequence of operating instructions. One of these is "Charge 100 liters of material C from the drum to the measure vessel." Perform a HAZOPb applying the guide words to this instruction. Present your results in the form of a table. Air General Purpose Measure Vessel PI Air Ejector LI Drum Orifice Plate Vessel 1

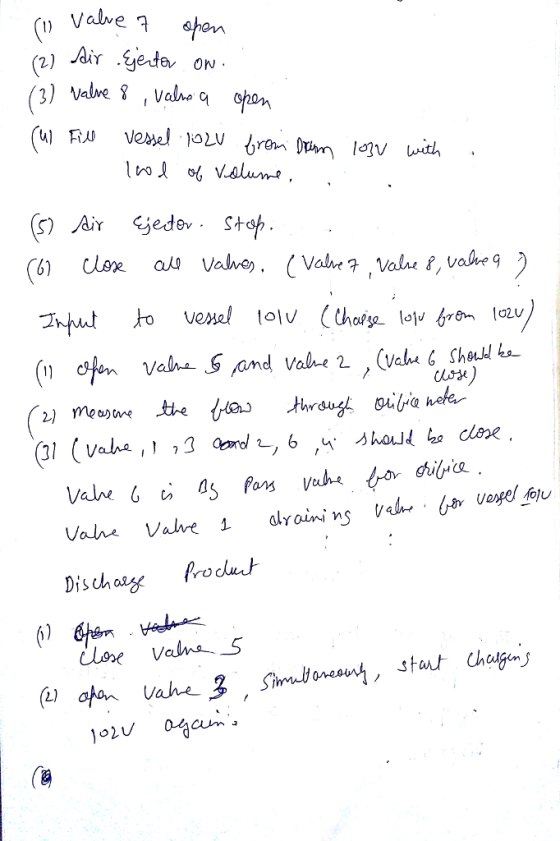

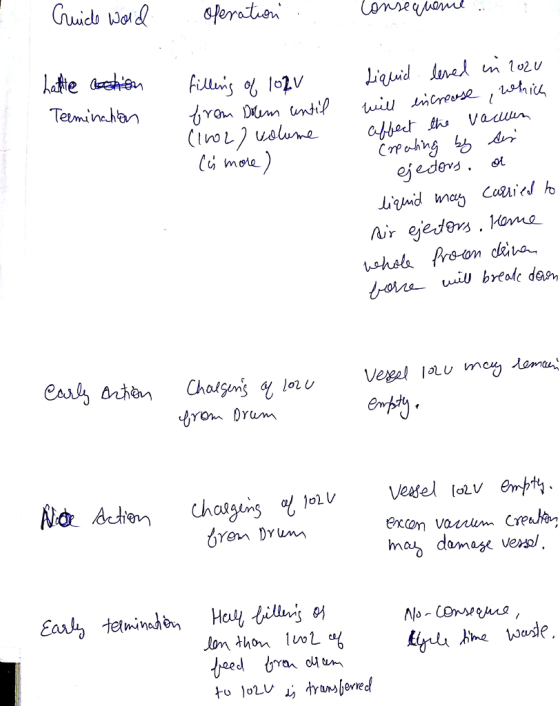

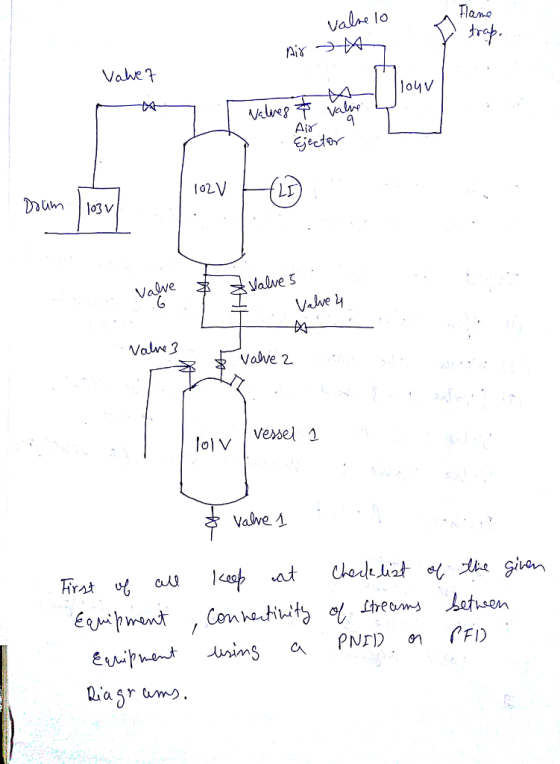

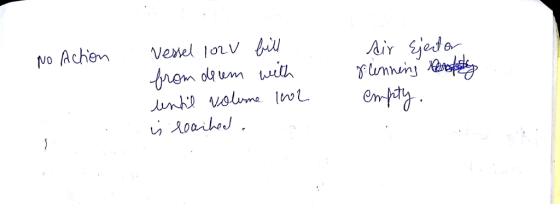

Answer 1
