A certain wire has a resistance of 120 Ω. What is the resistance of a second...

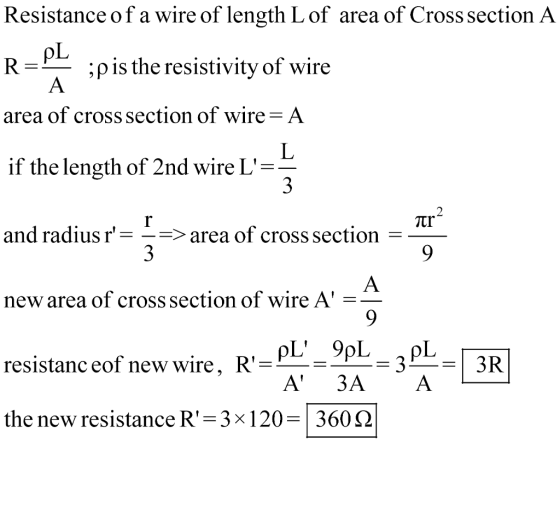

A certain wire has a resistance of 120 Ω. What is the resistance of a second wire, made of the same material, that is 1/3 as long and has 1/3 the diameter?
Homework Answers
Add Answer to:
A certain wire has a resistance of 120 Ω. What is the
resistance of a second...
A certain wire has a resistance of 140 Ω. What is the resistance of a second...
A certain wire has a resistance of 140 Ω. What is the resistance of a second wire, made of the same material, that is 1/3 as long and has 1/5 the diameter? (answer in ohms)
The resistance of a certain wire is 20 Ohms. Another wire of the same material has...
The resistance of a certain wire is 20 Ohms. Another wire of the same material has a diameter 1/3 as great and twice the length. What is the resistance of the second wire?
Tipler6 25.P.045.soln. A 1.30-m-long wire has a resistance equal to 0.290 Ω. A second wire made...
Tipler6 25.P.045.soln. A 1.30-m-long wire has a resistance equal to 0.290 Ω. A second wire made of identical material has a length of 1.70 m and a mass equal to the mass of the first wire. What is the resistance of the second wire? Ω
1. A conductor made of Silver wire has a resistance of 1 Ω. What will be...
1. A conductor made of Silver wire has a resistance of 1 Ω. What will be the resistance of a wire made of the alloy material Manganin which has one-third the length and one-third the diameter of the Silver wire? The resistivity of Manganin is 30 times that of silver (3 points)
1. A wire of length L and cross-sectional area A has a resistance of 5 Ω. What...
1. A wire of length L and cross-sectional area A has a resistance of 5 Ω. What is the resistance if the same amount of material is used to make a wire triple as long? 2. What is the resistance of 15 m length of household no. 14 copper circular wire having a diameter of 1.6 mm? (Hint: the resistivity of copper – textbook, page 782)
A wire of length L and cross-sectional area A has a resistance of 5 Ω. What...
A wire of length L and cross-sectional area A has a resistance of 5 Ω. What is the resistance if the same amount of material is used to make a wire triple as long?
A conducting wire of length L_0 and diameter d_) has resistance R_0. A second wire of...
A conducting wire of length L_0 and diameter d_) has resistance R_0. A second wire of the same material has 5L_0 length and diameter 3d_0. What is resistance of the second wire compared to R_0?
If a certain silver wire has a resistance of 5.20 Ω at 22.0°C, what resistance will...
If a certain silver wire has a resistance of 5.20 Ω at 22.0°C, what resistance will it have at 49.0°C? _________Ω
If a certain silver wire has a resistance of 4.00 Ω at 21.0°C, what resistance will...
If a certain silver wire has a resistance of 4.00 Ω at 21.0°C, what resistance will it have at 35.0°C? 2.65e-5 Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. Ω Need Help? į Readlt- LalktoaTutoru
5) A 1.20-m-long wire has a resistance equal to 0.420. A second wire made of identical...
5) A 1.20-m-long wire has a resistance equal to 0.420. A second wire made of identical material has a length of mass equal to the mass of the first wire. What is the resistance of the second wire? 3.50 m and a
1. A conductor made of Silver wire has a resistance of 1 Ω. What will be the resistance of a wire made of the alloy material Manganin which has one-third the length and one-third the diameter of the Silver wire? The resistivity of Manganin is 30 times that of silver (3 points)
A conducting wire of length L_0 and diameter d_) has resistance R_0. A second wire of the same material has 5L_0 length and diameter 3d_0. What is resistance of the second wire compared to R_0?
If a certain silver wire has a resistance of 4.00 Ω at 21.0°C, what resistance will it have at 35.0°C? 2.65e-5 Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. Ω Need Help? į Readlt- LalktoaTutoru
5) A 1.20-m-long wire has a resistance equal to 0.420. A second wire made of identical material has a length of mass equal to the mass of the first wire. What is the resistance of the second wire? 3.50 m and a
