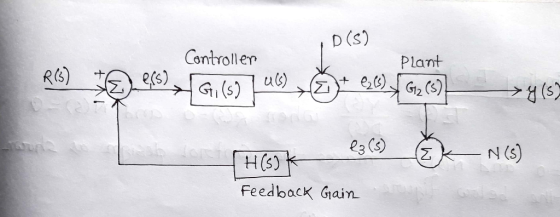

The Given Control Design is shown in the figure below-

Now We have to find out T1(s), T2(S), T3(s).

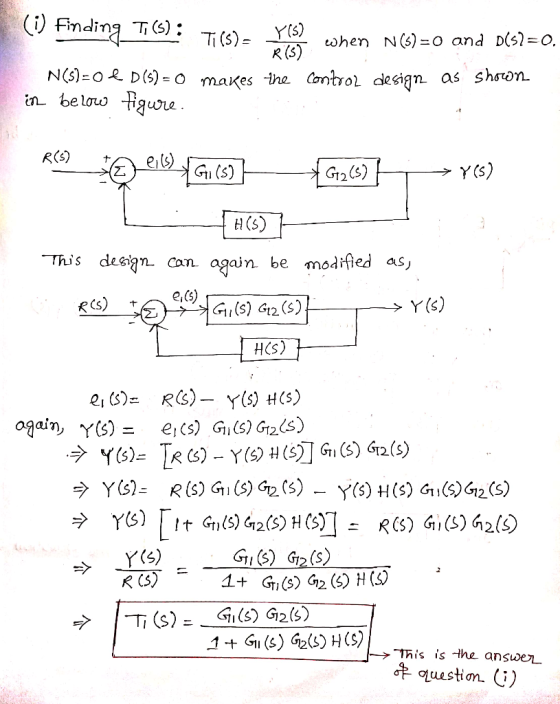

Let's find out all one by one----

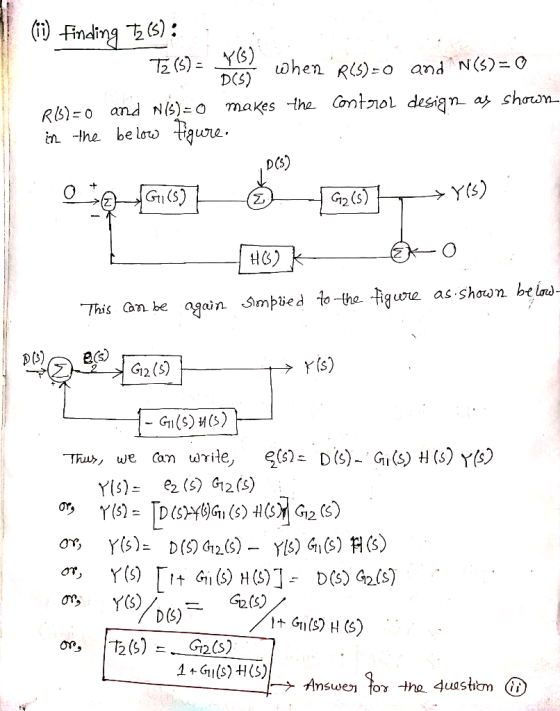

This is time to find out T2(S),

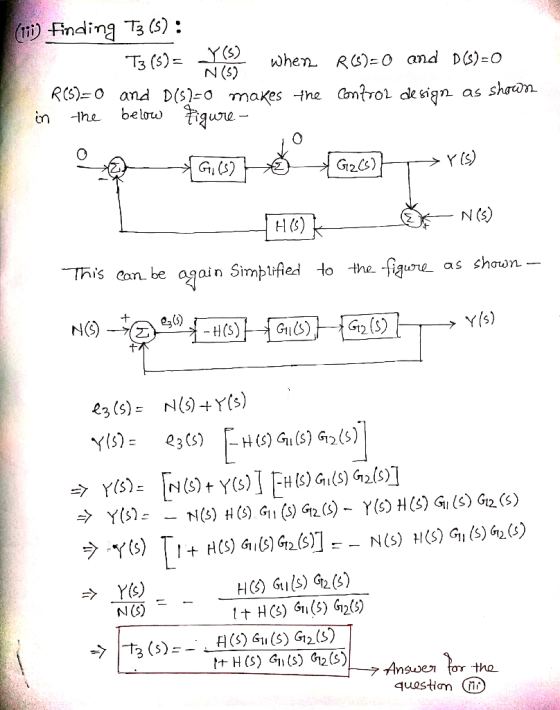

Now, let's find out the last transfer function T3(S),

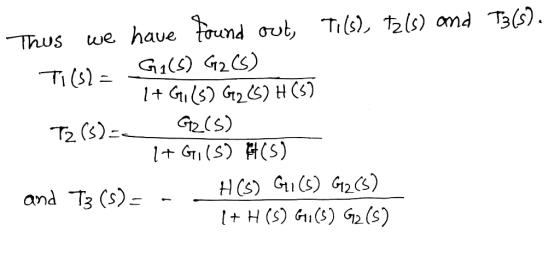

In this way, We have found out all the transfer functions. Look at the answers again-

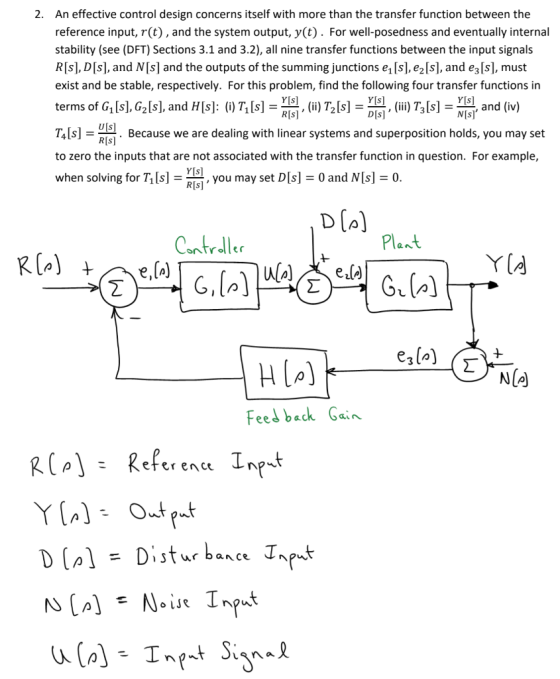

2. An effective control design concerns itself with more than the transfer function between the reference...
pleas show all work thank you
