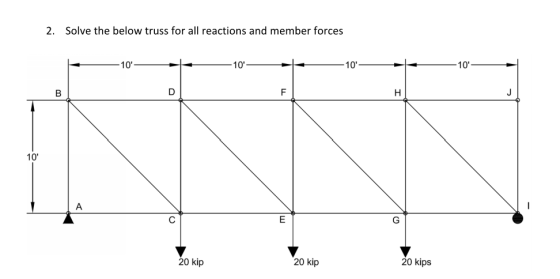

2. Solve the below truss for all reactions and member forces - 10 K 1 0'...
Problem # 1 For the plane truss shown below, determine the reactions and the member forces. 8 kip 10 kip 12 kip 8 f...
Problem # 1 For the plane truss shown below, determine the reactions and the member forces. 8 kip 10 kip 12 kip 8 ft h 8 ft f 20 ft 12 ft 12 ft 20 ft
Problem # 1 For the plane truss shown below, determine the reactions and the member forces. 8 kip 10 kip 12 kip 8 ft h 8 ft f 20 ft 12 ft 12 ft 20 ft
1. For the truss structure shown below, determine a. b. The reaction forces at D and...
1. For the truss structure shown below, determine a. b. The reaction forces at D and F The force in each truss member. Indicate whether each is in tension or compression. 1 kip I kip 6.4 ft 24 kips 12 ft 12 ft
For the symmetrical K-truss shown, find the forces in the truss members LE and ER. Loadings...
For the symmetrical K-truss shown, find the forces in the truss members LE and ER. Loadings and dimensions are shown on the sketch. (Hint: you may need to calculate forces in other members to find the force in member ER) 20' 5 kips5 kips 5 kips 5 kips 5 kips 5 kips 5 kips 8 x 10' 80
Problem 2: For the truss shown, compute all member forces using the method of consistent deformations...
Problem 2: For the truss shown, compute all member forces using the method of consistent deformations by taking the force in member M6 (between joints 1 and 4) as redundant. Given: E-29,000 ksi and A-2.0 in2 A-2.0 in for all members. 20 kips 3 4. M4 M5 M6 10 ft uo M1 2 10 ft
matrix structural Problem #1: Solve for nodal displacements, reactions, and member forces of the truss shown. The support at node 1 displaces down 0.6 in and node 4 displaces to the left 0.3 in....
matrix structural
Problem #1: Solve for nodal displacements, reactions, and member forces of the truss shown. The support at node 1 displaces down 0.6 in and node 4 displaces to the left 0.3 in. All areas are 2 in2 and E- 29 x 10° psi. Use the stiffness matrix method. 30000 All areas 2 in2 E-29x106 psi 21 ② 3 10 ft
Problem #1: Solve for nodal displacements, reactions, and member forces of the truss shown. The support at node...
Find the force in member IC in the simply-supported truss below. Identify any/all zero-force members in...
Find the force in member IC in the simply-supported truss below.
Identify any/all zero-force members in the truss.
1. Find the force in member IC in the simply-supported truss below. Identify any/all zero-force members in the truss. 3 kip 3 kip 2 kip 8 ft 1.5 kip 4 ft ID -10 ft _+__ 10 ft-+-- 10 ft-10 ft
Determine the forces developed in each member of the given truss and state whether each 2...
Determine the forces developed in each member of the given truss and state whether each 2 kip 5 kip 1 kip 5 ft 5 ft
Given the truss below, solve for the ten/comp in member BE. A B 15 ft E...
Given the truss below, solve for the ten/comp in member BE. A B 15 ft E C 20 kip 30 kip 24 ft 24 ft D
2. Calculate the forces in all members of the truss shown belovw 10 kips 5 kips...
2. Calculate the forces in all members of the truss shown belovw 10 kips 5 kips 10'-0" .A 8-0" 16'-0"
Problem 4 (30%) Determine the internal forces of every member of the truss in the figure....
Problem 4 (30%) Determine the internal forces of every member of the truss in the figure. Consider that member BE undergoes a temperature increase of 60°F and member BD is 0.75" too short. For all truss members assume E = 29,000 ksi, A = 5 in, and a=6.5-106/°F 15 ft 15 ft AT=+60°F) 200 kip 20 ft 204 20 ft 20 #
Problem # 1 For the plane truss shown below, determine the reactions and the member forces. 8 kip 10 kip 12 kip 8 ft h 8 ft f 20 ft 12 ft 12 ft 20 ft
Problem # 1 For the plane truss shown below, determine the reactions and the member forces. 8 kip 10 kip 12 kip 8 ft h 8 ft f 20 ft 12 ft 12 ft 20 ft
1. For the truss structure shown below, determine a. b. The reaction forces at D and F The force in each truss member. Indicate whether each is in tension or compression. 1 kip I kip 6.4 ft 24 kips 12 ft 12 ft
For the symmetrical K-truss shown, find the forces in the truss members LE and ER. Loadings and dimensions are shown on the sketch. (Hint: you may need to calculate forces in other members to find the force in member ER) 20' 5 kips5 kips 5 kips 5 kips 5 kips 5 kips 5 kips 8 x 10' 80
Problem 2: For the truss shown, compute all member forces using the method of consistent deformations by taking the force in member M6 (between joints 1 and 4) as redundant. Given: E-29,000 ksi and A-2.0 in2 A-2.0 in for all members. 20 kips 3 4. M4 M5 M6 10 ft uo M1 2 10 ft
matrix structural
Problem #1: Solve for nodal displacements, reactions, and member forces of the truss shown. The support at node 1 displaces down 0.6 in and node 4 displaces to the left 0.3 in. All areas are 2 in2 and E- 29 x 10° psi. Use the stiffness matrix method. 30000 All areas 2 in2 E-29x106 psi 21 ② 3 10 ft
Problem #1: Solve for nodal displacements, reactions, and member forces of the truss shown. The support at node...
Find the force in member IC in the simply-supported truss below.
Identify any/all zero-force members in the truss.
1. Find the force in member IC in the simply-supported truss below. Identify any/all zero-force members in the truss. 3 kip 3 kip 2 kip 8 ft 1.5 kip 4 ft ID -10 ft _+__ 10 ft-+-- 10 ft-10 ft
Determine the forces developed in each member of the given truss and state whether each 2 kip 5 kip 1 kip 5 ft 5 ft
Given the truss below, solve for the ten/comp in member BE. A B 15 ft E C 20 kip 30 kip 24 ft 24 ft D
2. Calculate the forces in all members of the truss shown belovw 10 kips 5 kips 10'-0" .A 8-0" 16'-0"
Problem 4 (30%) Determine the internal forces of every member of the truss in the figure. Consider that member BE undergoes a temperature increase of 60°F and member BD is 0.75" too short. For all truss members assume E = 29,000 ksi, A = 5 in, and a=6.5-106/°F 15 ft 15 ft AT=+60°F) 200 kip 20 ft 204 20 ft 20 #
