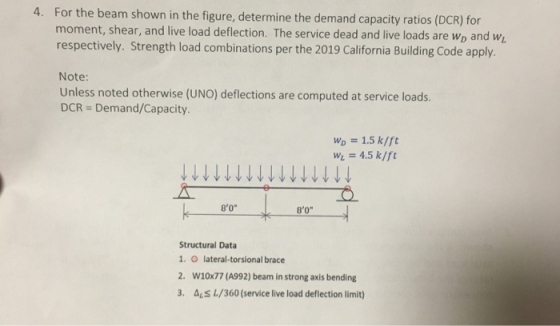

4. For the beam shown in the figure, determine the demand capacity ratios (DCR) for moment,...
Could you please use AISC steel manual for the parts needed? 15th edition. 4. The beam...
Could you please use AISC steel
manual for the parts needed? 15th edition.
4. The beam shown the Figure has lateral support only at the ends. The uniform load is a superimposed dead load, and the concentrated load is a live load. Use A992 steel and select an economical W shape. The live load deflection must not exceed L/360 (you may use the tables of Chapter 3). Also, calculate Fer for the selected W shape 25 k/ft A 15 15"...
3. Given a. W27X84 A992 Steel beam is simply supported over a 25' FT beam length. b. The compress...
Steel Design
3. Given a. W27X84 A992 Steel beam is simply supported over a 25' FT beam length. b. The compression flange of the beam is fully braced along the beam length. c. A uniformly distributed service dead load of 2.5 KLF. d. A uniformly distributed service live load of 3.5 KLF. e. A live load deflection limit of L/360. A dead live load deflection limit of L/240. f. Neglect the self-weight of the beam in all calculations. Determine: The...
Q3) A simply supported beam is subjected to a uniform service dead load of 2.3 kips/ft...
Q3) A simply supported beam is subjected to a uniform service dead load of 2.3 kips/ft (excluding the weight of the beam), a uniform service live load of 3.0 kips/ft. The beam is 30 feet long, and deflection not to exceed L/360. The beam has continuous lateral support, and A992 steel is used. Is a W27 x 84 adequate?
An A992 beam, simply supported at both ends, spans 20 ft and is loaded at mid-span...
An A992 beam, simply supported at both ends, spans 20 ft and is loaded at mid-span with a dead load of 8.o kips and live load of 24.0 kips, in addition to its self-weight. Assume full lateral support and a compact section. Select the lightest weight wide-flange members with respect to bending capacity. Does the member selected in part (a), satisfy the live load deflection criteria of L/360.? Does the member selected in part (a), satisfy the live load deflection...
Could you please use 15th edition of AISC Manual for proper solution. 4. Use A992 steel...
Could you please use 15th
edition of AISC Manual for proper solution.
4. Use A992 steel and select the lightest W12-shape for the beam-column shown in the figure below. The member is part of a braced frame, and the axial load and bending moment are based on service loads consisting of 30% dead load and 70% live load (the end shears are not shown) Bending is about the strong axis, and K= Ky=1.0. The frame analysis was performed consistent with...
a simply supported beam shown has a span length of 16 ft. the beam is laoded...
a simply supported beam shown has a span length of 16 ft. the
beam is laoded with to concentrated service live loads of 40 kips
and 80 kips as shown. if lateral support is provided only at both
ends, select the lightest w section of A992 steel that can carry
these applied loads. neglect the weight of the beam.
***Need this answered ASAP please***
***Please show ALL steps***
steel design - please show what tables the values come from.
thank...
Select the lightest W shape for the loading below. All loads are dead loads and the...
Select the lightest W shape for the loading below. All loads are dead loads and the 2 k/ft includes th beam weight. The steel is A992, the compression flange is supported at the ends and at the concentrated load and C 1.0. The maximum service load deflection cannot exceed 1/1000 of the span. Design for moment and check shear and deflection. Identify what zone the beam is in and check that it does not exceed zone 1 maximum strength. 13...
Check the adequacy of a W18X35 for a beam (the beam in the vertical direction in...
Check the adequacy of a W18X35 for a beam (the beam in the vertical direction in the plan) in a floor framing system in terms of 1) bending strength; 2) shear strength and 3) deflection. The beams support a 4-inch-thick reinforced concreted floor slab (with a density of 150 lbs/ft?). Besides the weight of the structure, loads consist of a uniform live load of 80 psf and moveable partitions (with a uniformly distributed load of 20 psf of floor surface)....
Problem # 2 The 24-kip concentrated load shown is a service live load. Determine whether the beam...
please show your step thoroughly!
Problem # 2 The 24-kip concentrated load shown is a service live load. Determine whether the beam satisfies the AISC Specification if A992 steel is used. Lateral support is provided at the ends only. (Flexure, shear, deflection) 24k Δ4 W14 x 109 15
Problem # 2 The 24-kip concentrated load shown is a service live load. Determine whether the beam satisfies the AISC Specification if A992 steel is used. Lateral support is provided at the...
Design a W-shape floor beam for the intermediate beam marked A on the floor plan shown...
Design a W-shape floor beam for the intermediate beam marked A on the floor plan shown below. The beam is loaded uniformly by the floor with a live load of 70psf and a dead load in addition to beam self-weight of 60psf. The beam has a full lateral support provided by the floor deck. Use A992 steel (50ksi) and provisions of LRFD 壬 26 ft L-trib
Could you please use AISC steel
manual for the parts needed? 15th edition.
4. The beam shown the Figure has lateral support only at the ends. The uniform load is a superimposed dead load, and the concentrated load is a live load. Use A992 steel and select an economical W shape. The live load deflection must not exceed L/360 (you may use the tables of Chapter 3). Also, calculate Fer for the selected W shape 25 k/ft A 15 15"...
Steel Design
3. Given a. W27X84 A992 Steel beam is simply supported over a 25' FT beam length. b. The compression flange of the beam is fully braced along the beam length. c. A uniformly distributed service dead load of 2.5 KLF. d. A uniformly distributed service live load of 3.5 KLF. e. A live load deflection limit of L/360. A dead live load deflection limit of L/240. f. Neglect the self-weight of the beam in all calculations. Determine: The...
Q3) A simply supported beam is subjected to a uniform service dead load of 2.3 kips/ft (excluding the weight of the beam), a uniform service live load of 3.0 kips/ft. The beam is 30 feet long, and deflection not to exceed L/360. The beam has continuous lateral support, and A992 steel is used. Is a W27 x 84 adequate?
An A992 beam, simply supported at both ends, spans 20 ft and is loaded at mid-span with a dead load of 8.o kips and live load of 24.0 kips, in addition to its self-weight. Assume full lateral support and a compact section. Select the lightest weight wide-flange members with respect to bending capacity. Does the member selected in part (a), satisfy the live load deflection criteria of L/360.? Does the member selected in part (a), satisfy the live load deflection...
Could you please use 15th
edition of AISC Manual for proper solution.
4. Use A992 steel and select the lightest W12-shape for the beam-column shown in the figure below. The member is part of a braced frame, and the axial load and bending moment are based on service loads consisting of 30% dead load and 70% live load (the end shears are not shown) Bending is about the strong axis, and K= Ky=1.0. The frame analysis was performed consistent with...
a simply supported beam shown has a span length of 16 ft. the
beam is laoded with to concentrated service live loads of 40 kips
and 80 kips as shown. if lateral support is provided only at both
ends, select the lightest w section of A992 steel that can carry
these applied loads. neglect the weight of the beam.
***Need this answered ASAP please***
***Please show ALL steps***
steel design - please show what tables the values come from.
thank...
Select the lightest W shape for the loading below. All loads are dead loads and the 2 k/ft includes th beam weight. The steel is A992, the compression flange is supported at the ends and at the concentrated load and C 1.0. The maximum service load deflection cannot exceed 1/1000 of the span. Design for moment and check shear and deflection. Identify what zone the beam is in and check that it does not exceed zone 1 maximum strength. 13...
Check the adequacy of a W18X35 for a beam (the beam in the vertical direction in the plan) in a floor framing system in terms of 1) bending strength; 2) shear strength and 3) deflection. The beams support a 4-inch-thick reinforced concreted floor slab (with a density of 150 lbs/ft?). Besides the weight of the structure, loads consist of a uniform live load of 80 psf and moveable partitions (with a uniformly distributed load of 20 psf of floor surface)....
please show your step thoroughly!
Problem # 2 The 24-kip concentrated load shown is a service live load. Determine whether the beam satisfies the AISC Specification if A992 steel is used. Lateral support is provided at the ends only. (Flexure, shear, deflection) 24k Δ4 W14 x 109 15
Problem # 2 The 24-kip concentrated load shown is a service live load. Determine whether the beam satisfies the AISC Specification if A992 steel is used. Lateral support is provided at the...
Design a W-shape floor beam for the intermediate beam marked A on the floor plan shown below. The beam is loaded uniformly by the floor with a live load of 70psf and a dead load in addition to beam self-weight of 60psf. The beam has a full lateral support provided by the floor deck. Use A992 steel (50ksi) and provisions of LRFD 壬 26 ft L-trib
