Four electric charge are is 2 uC, -2uC, 5 uC and -5 uC successively placed at...

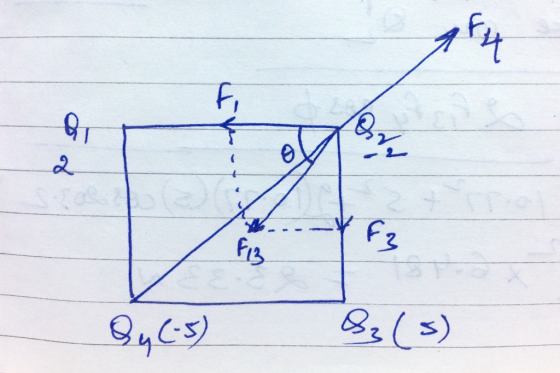

Four electric charge are is 2 uC, -2uC, 5 uC and -5 uC successively placed at the corner points of a square having a side length of 5 cm. Determine the magnitude and direction of the force experienced by the charge -2 uC
Homework Answers
Add Answer to:
Four electric charge are is 2 uC, -2uC, 5 uC and -5 uC
successively placed at...
A 2uc charge is placed at each corner of a square 0.5m on a side? Determine...
A 2uc charge is placed at each corner of a square 0.5m on a side? Determine the electric field in the middle of the square
1) Three charges are placed along the x-axis. At -4 cm, a charge of +0.7 uc,...
1) Three charges are placed along the x-axis. At -4 cm, a charge of +0.7 uc, at the origin, +1 uc, and at +6 cm, a charge of 2 uС. Find the net force (magnitude and direction) on the central charge. 2) In the above system, what is the electric field at the point on the x-axis x=-2 cm? What would be the acceleration experienced by an 80 nC charge with mass 107 kg?
Four point charges are placed at the corners of a square as shown in the figure....
Four point charges are placed at the corners of a square as shown in the figure. Each side of the square has length 2.0 m. Determine the magnitude of the electric field at the point P, the center of the square. Top right corner has a charge of 1 uC, bottom right corner has a charge of +4 uC, top left corner has a charge of +4 uC (top left and bottom right corners cancel out), and bottom left corner...
b. Determine the electric field at the center of the square c. Determine the electric potential...
b. Determine the electric field at the center of the square
c. Determine the electric potential at the center of the
square
d. What is the potential energy of charge q3?
[30 pts) Four charges located at the four corner of a square of side a = 8.00 cm. q1 and q4 are identical negative charges with magnitude 6.00 uC. [Answer in 3 significant figures] a) [9 pts) What is the magnitude and sign of charge q3 1 (located at...
1. Charges 91 = +1.00 uC, 42 = -2.00 uC and 43 = +3.00 uC are...
1. Charges 91 = +1.00 uC, 42 = -2.00 uC and 43 = +3.00 uC are placed on three corners of a square of side a = 0.500 m as shown in the diagram. (a) On the diagram, draw the electric field vectors at point P (the fourth corner) of the three charges. Label the electric field of qı as Eį, etc. (b) Calculate the net electric field at P and write it in vector notation. (c) Calculate the magnitude...
16. A test charge of +2 uC is placed halfway between a charge of +6 4C...
16. A test charge of +2 uC is placed halfway between a charge of +6 4C and another of +4 uC separated by 10 cm. (a) What is the magnitude of the force on the test charge? (b) What is the direction of this force (away from or toward the +6 uC charge)?
2. Four point charges of q = 4.0uC are at the corners of a square of...
2. Four point charges of q = 4.0uC are at the corners of a square of side a = 10 cm as shown in the figure. Determine the magnitude and direction of the resultant electric force on the lower right corner charge q. (20 pts) + 9
A charge of +397 uC is fixed at the center of a square that is 0.76m...
A charge of +397 uC is fixed at the center of a square that is 0.76m on a side. How much work is done by the electric force as a charge of +8.5 uC is moved from one corner of the square to any other empty corner?
a) Four identical particles with charge 3 μμC are located at the corners of a square....
a) Four identical particles with charge 3 μμC are located at the corners of a square. The square's sides are 2 cm in length. A fifth particle of charge 6 μμC is placed directly at the center of the square. What is the magnitude of the total electric force on any one of the four particles at the corners? b) If you could adjust the charge of the particle at the center, what should you choose so that the net...
A particle of charge 2 μC is located at the origin. A second particle of charge...
A particle of charge 2 μC is located at the origin. A second particle of charge 5 μC is located at the coordinates (2.35,3.24)(2.35,3.24) in cm. What is the magnitude of the electric force between the particles? What are the x and y components of the electric force acting on the particle at the point (2.35,3.24)(2.35,3.24)? Four identical particles with charge 3 μC are located at the corners of a square. The square's sides are 3 cm in length. A...
A 2uc charge is placed at each corner of a square 0.5m on a side? Determine the electric field in the middle of the square
1) Three charges are placed along the x-axis. At -4 cm, a charge of +0.7 uc, at the origin, +1 uc, and at +6 cm, a charge of 2 uС. Find the net force (magnitude and direction) on the central charge. 2) In the above system, what is the electric field at the point on the x-axis x=-2 cm? What would be the acceleration experienced by an 80 nC charge with mass 107 kg?
b. Determine the electric field at the center of the square
c. Determine the electric potential at the center of the
square
d. What is the potential energy of charge q3?
[30 pts) Four charges located at the four corner of a square of side a = 8.00 cm. q1 and q4 are identical negative charges with magnitude 6.00 uC. [Answer in 3 significant figures] a) [9 pts) What is the magnitude and sign of charge q3 1 (located at...
1. Charges 91 = +1.00 uC, 42 = -2.00 uC and 43 = +3.00 uC are placed on three corners of a square of side a = 0.500 m as shown in the diagram. (a) On the diagram, draw the electric field vectors at point P (the fourth corner) of the three charges. Label the electric field of qı as Eį, etc. (b) Calculate the net electric field at P and write it in vector notation. (c) Calculate the magnitude...
16. A test charge of +2 uC is placed halfway between a charge of +6 4C and another of +4 uC separated by 10 cm. (a) What is the magnitude of the force on the test charge? (b) What is the direction of this force (away from or toward the +6 uC charge)?
2. Four point charges of q = 4.0uC are at the corners of a square of side a = 10 cm as shown in the figure. Determine the magnitude and direction of the resultant electric force on the lower right corner charge q. (20 pts) + 9
