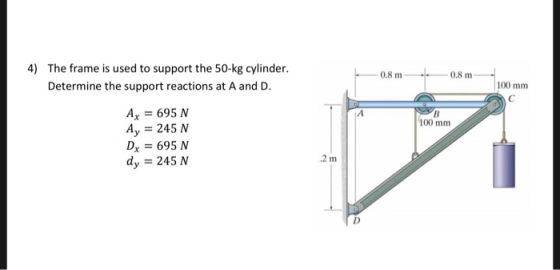

4) The frame is used to support the 50-kg cylinder 0.8 m 0.8 m Determine the...

Question

Question

science Advanced-Physics

Answer 1

Answer #1

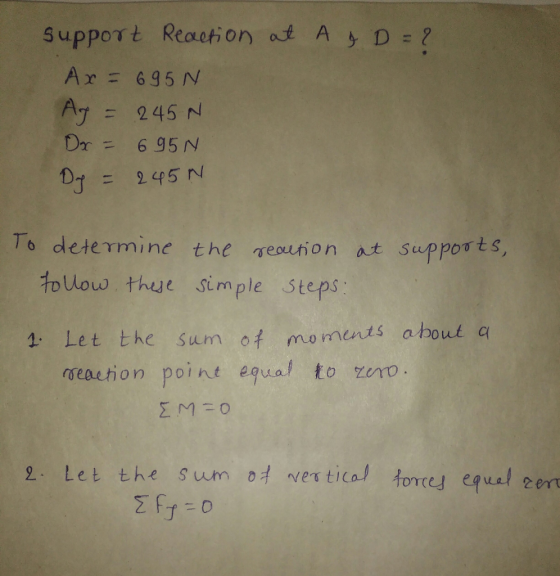

support Reath on at A D =? Ar= 635 N To determine the resuhon at supports, tollow thue simple steps Let the sum of moments ab

Answer 2

Similar Homework Help Questions

The frame is used to support the 58-kg cylinder(Figure 1). Determine the force of the pin...

The frame is used to support the 58-kg cylinder(Figure 1). Determine the force of the pin at C on member ABC. Express your answer with the appropriate units. μΑ ? FABC = Value Units Figure Submit Request Answer < 1 of 1 0.8 m 0.8 m Part B 100 mm Determine the force of the pin at C on member CD. Express your answer with the appropriate units. A B 100 mm 1.2 m μΑ ? FCD = Value Units...
Ax, Ay, Dx, Dy, Md? Determine the magnitude and direction of all support reactions for the...

Ax, Ay, Dx, Dy, Md? Determine the magnitude and direction of all support reactions for the pin-jointed structure shown below. 450 lb
Determine the magnitude and direction of all support reactions for the pin-jointed structure shown below. Ax=?...

Determine the magnitude and direction of all support reactions for the pin-jointed structure shown below. Ax=? Ay=? Dx=? Dy=? Md=? 450 b T B 3h C 8 ft 4h 4h D

Find Ax, Ay, Dx, Dy and Md Determine the magnitude and direction of all support reactions...

Find Ax, Ay, Dx, Dy and Md Determine the magnitude and direction of all support reactions for the pin-jointed structure shown below. 450 bift + 47 D Question 1 Points out of 1.00 Remove itag Answer saved Ax= Select one a. 7200 lbs
Determine the speed of the 50-kg cylinder after it has descended a distance of 2 m, starting from...

Determine the speed of the 50-kg cylinder after it has descended a distance of 2 m, starting from rest. Gear A has a mass of 10 kg and a radius of gyration of 125 mm about its center of mass. Gear B and drum C have a combined mass of 30 kg and a radius of gyration about their center of mass of 150 100 mm 150mm 200 mm Determine the speed of the 50-kg cylinder after it has descended...
use counterclockwise as positive please!! Problem 2: A 2D general force system acts on the frame,...

use counterclockwise as positive please!! Problem 2: A 2D general force system acts on the frame, P, = 80 N, P, - 100 N, P, -50 Nm - 200 N-m, and a - 0.1 m, and the frame is in equilibrium. Determine the unknown forces Ax, Ay, and Dy using the equilibrium equations: E. Fix = 0;., Fly = 0; and Moi = 0 where o is an arbitrary point.

3. Using the image and the following information, determine the support reactions of the frame shown...

3. Using the image and the following information, determine the support reactions of the frame shown below. a. The members of the frame are shown in black. There are 3 members in the frame (AC, CE, and EF). b. The red dots represent the connection points for the frame. C. The external forces are shown by the blue lines. d. There is a pin support at A and rocker supports at B, D, and F. 250 N 100 N/m 175...
Q.1) A pin-connected two-bar frame supports a cylinder weighing 500 N as shown below. Determine the...

Q.1) A pin-connected two-bar frame supports a cylinder weighing 500 N as shown below. Determine the forces exerted on the cylinder by the contacting surfaces. Also, find the reactions at support A and C. 150 mm 300 mm 300 mm 225 mm175 mm
4. A band belt is used to control the speed of a 50 kg flywheel as...

4. A band belt is used to control the speed of a 50 kg flywheel as shown. A couple M of magnitude 200 N-m is applied to the flywheel and the coefficient of friction between the belt and the flywheel is s 0.5 and uk 0.4. Determine: a. the minimum magnitude of the force P being applied to the brake so that the flywheel rotates at a constant speed. the reactions at B and O. b. 100 mm 900 mm...

Find all the reaction forces Ax, Ay,Dx,Dy Problem 1 The frame shown in the figure has...

Find all the reaction forces Ax, Ay,Dx,Dy Problem 1 The frame shown in the figure has two pin supports at points A and D. Two point loads P1 = P2 = 4 kN and a uniformly distributed load W = 10 kN/m are applied to the frame as shown. The horizontal reaction at support A is -1.037 kN. Note: A positive value here indicates a reaction force pointing to the right, and a negative value one pointing to the left....
