A solid circular shaft 125 mm diameter rotates in bearings at 30 rad/s. Transverse loadings produce...

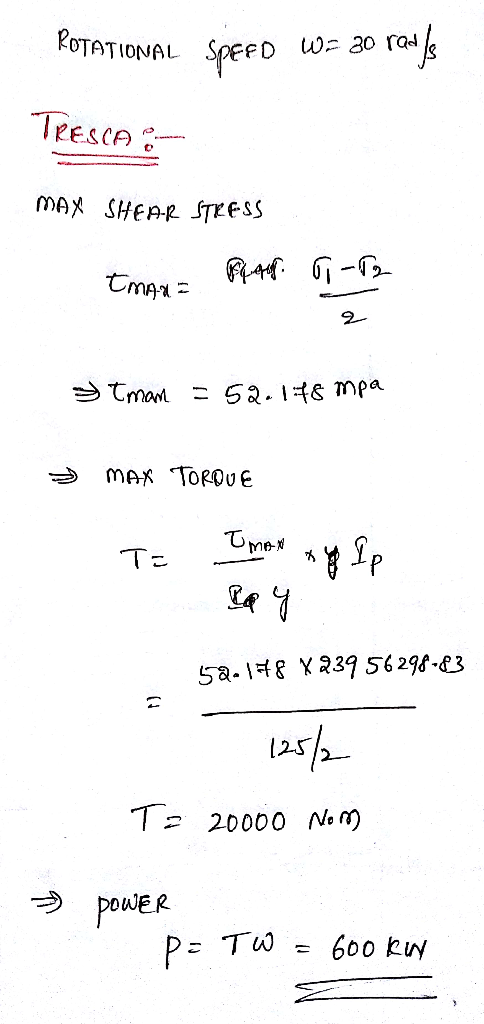

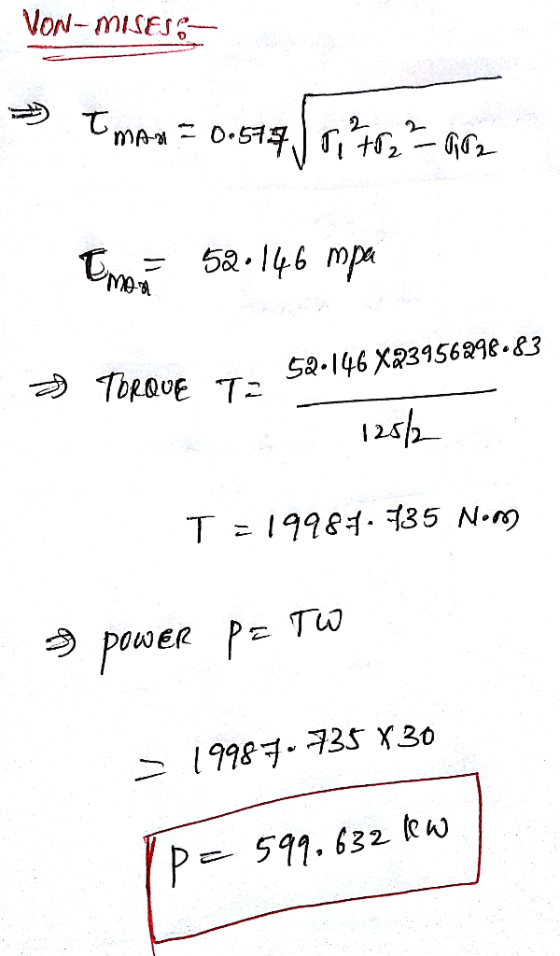

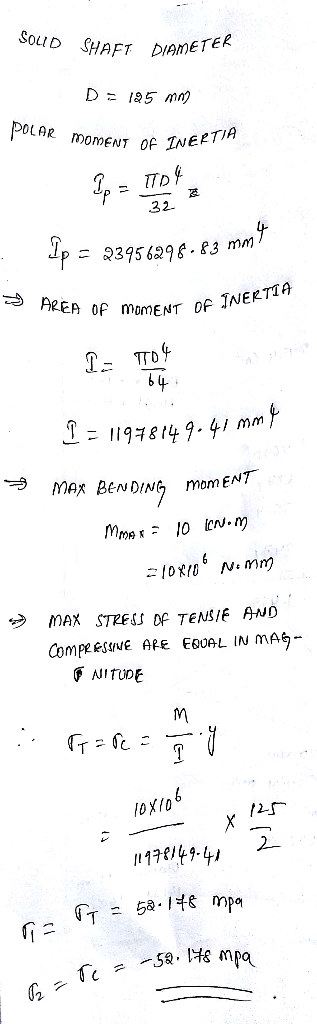

A solid circular shaft 125 mm diameter rotates in bearings at 30 rad/s. Transverse loadings produce a maximum bending moment of 10 kNm. Given the tensile yield stress of the shaft material as 300 MPa, find the power this shaft can transmit according to the Tresca and von Mises yield criteria.
Homework Answers
Add Answer to:
A solid circular shaft 125 mm diameter rotates in bearings at 30
rad/s. Transverse loadings produce...
(30 pts) Shaft Yielding. A solid circular shaft with 125 mm diameter rotates in bearings at 30 rad/s. Transverse loadings produce a maximum bending moment of 10 kNm. (For 3. e meaning of transver...
(30 pts) Shaft Yielding. A solid circular shaft with 125 mm diameter rotates in bearings at 30 rad/s. Transverse loadings produce a maximum bending moment of 10 kNm. (For 3. e meaning of transverse loading see the image below.) Given the tensile yield strength th of the shaft material as 300 MPa, find the power this shaft can transmit according to the Tresca and von Mises yield criteria. Hint: You may need to use Engineer's Theory of Bending (ETB) to...
A low carbon steel shaft is designed to have a diameter of 30 mm. It is...
A low carbon steel shaft is designed to have a diameter of 30 mm. It is to be subjected to an axial load (P-30 kN), a moment (M-200 N-m), and a torque (T-300 N-m). Assume the yield stress for the steel is (280 MPa), the Poisson's ratio is (v= 0.29), and the safety factor is (1-1). Calculate the margin of safety using the following failure theories. a.) Rankine Criteria (Maximum Principal Stress) b.) Tresca Criteria (Maximum Shear Stress) c.) Saint...
Question 1 Shaft AB is supported at B by a roller support and at A by a pin support as well as a spline that prevents rotation around x axis. The diameter of the shaft is D. At cross s...
Question 1 Shaft AB is supported at B by a roller support and at A by a pin support as well as a spline that prevents rotation around x axis. The diameter of the shaft is D. At cross section A-A there is a relief groove where the minimum diameter is d. Two loads, F, and one torsion moment, T, are acted on the shaft. The material of the shaft is aluminum 7075, Sy = 495 MPa. Also known: L=630...
Stress Analysis 3. A 20-mm diameter rod made ofa ductile material with a yield strength of...
Stress Analysis
3. A 20-mm diameter rod made ofa ductile material with a yield strength of 350 MPa is subjected to torque of 100 N.m and a bending moment of 150 N.m. An axial force is then gradually applied. Determine the value of force when the rod begins to yield. Solve the problem two ways using the (a) Tresca theory (Maximum shearing stress theory) and (b) von Mises theory (Maximum distortion energy theory) [12+12 points
3. A 20-mm diameter rod...
. Estimate the torque on a 15 mm diameter steel shaft when yielding begins using (a)...
. Estimate the torque on a 15 mm diameter steel shaft when yielding begins using (a) the Tresca and (b) the von Mises theory. The yield strength of the steel is 140 MPa.
A ships solid circular drive shaft... A ships solid circular drive shaft is of diameter, d...
A ships solid circular drive shaft...
A ships solid circular drive shaft is of diameter, d 53 mm, and is subjected to a torque, T= 1512 Nm and an axial force, F-134 kN as shown. The shaft is made of steel with a yield stress of 350 MPa. Determine the Factor of Safety (accurate to two decimal places), according to Tresca's maximum shear stress failure theory. (Hint: Based on the state of stress in a surface element, consider Mohr's circle...
The 60-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the...
The 60-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the absolute maximum and minimum shear stresses in the shaft's surface and specify their locations, measured from the free end. 10-25. The solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the required diameter d of the shaft if the allowable shear stress for the material is Tallow = 60 MPa. 400 N·m 4 kN.m/m А. < 0.2 m 0.2 m...
air under a pressure to 16 MPa. The tank has a 180 mm inner diameter and a 12 mm wall thickness (40 points) A torque of magnitude T-24kN-m is applied to the end of a tank containing 3. Part A. Fo...
air under a pressure to 16 MPa. The tank has a 180 mm inner diameter and a 12 mm wall thickness (40 points) A torque of magnitude T-24kN-m is applied to the end of a tank containing 3. Part A. For a point on the outer surface of the tank, determine: a. the maximum normal stress b. the maximum shearing stress Part B. As a result of several tensile tests, it has been found that the tensile yield strength for...
A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending,...
A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute tmax (Tresca) and om (von...
Problem 2: A circular shaft transmits power as shown with pulley loads. The shaft carries a...
Problem 2: A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute Tmax (Tresca) and...
(30 pts) Shaft Yielding. A solid circular shaft with 125 mm diameter rotates in bearings at 30 rad/s. Transverse loadings produce a maximum bending moment of 10 kNm. (For 3. e meaning of transverse loading see the image below.) Given the tensile yield strength th of the shaft material as 300 MPa, find the power this shaft can transmit according to the Tresca and von Mises yield criteria. Hint: You may need to use Engineer's Theory of Bending (ETB) to...
A low carbon steel shaft is designed to have a diameter of 30 mm. It is to be subjected to an axial load (P-30 kN), a moment (M-200 N-m), and a torque (T-300 N-m). Assume the yield stress for the steel is (280 MPa), the Poisson's ratio is (v= 0.29), and the safety factor is (1-1). Calculate the margin of safety using the following failure theories. a.) Rankine Criteria (Maximum Principal Stress) b.) Tresca Criteria (Maximum Shear Stress) c.) Saint...
Question 1 Shaft AB is supported at B by a roller support and at A by a pin support as well as a spline that prevents rotation around x axis. The diameter of the shaft is D. At cross section A-A there is a relief groove where the minimum diameter is d. Two loads, F, and one torsion moment, T, are acted on the shaft. The material of the shaft is aluminum 7075, Sy = 495 MPa. Also known: L=630...
Stress Analysis
3. A 20-mm diameter rod made ofa ductile material with a yield strength of 350 MPa is subjected to torque of 100 N.m and a bending moment of 150 N.m. An axial force is then gradually applied. Determine the value of force when the rod begins to yield. Solve the problem two ways using the (a) Tresca theory (Maximum shearing stress theory) and (b) von Mises theory (Maximum distortion energy theory) [12+12 points
3. A 20-mm diameter rod...
A ships solid circular drive shaft...
A ships solid circular drive shaft is of diameter, d 53 mm, and is subjected to a torque, T= 1512 Nm and an axial force, F-134 kN as shown. The shaft is made of steel with a yield stress of 350 MPa. Determine the Factor of Safety (accurate to two decimal places), according to Tresca's maximum shear stress failure theory. (Hint: Based on the state of stress in a surface element, consider Mohr's circle...
The 60-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the absolute maximum and minimum shear stresses in the shaft's surface and specify their locations, measured from the free end. 10-25. The solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the required diameter d of the shaft if the allowable shear stress for the material is Tallow = 60 MPa. 400 N·m 4 kN.m/m А. < 0.2 m 0.2 m...
air under a pressure to 16 MPa. The tank has a 180 mm inner diameter and a 12 mm wall thickness (40 points) A torque of magnitude T-24kN-m is applied to the end of a tank containing 3. Part A. For a point on the outer surface of the tank, determine: a. the maximum normal stress b. the maximum shearing stress Part B. As a result of several tensile tests, it has been found that the tensile yield strength for...
A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute tmax (Tresca) and om (von...
Problem 2: A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute Tmax (Tresca) and...
