Q2) American Standard Channel shape, C10 x 20, is connected to a gusset plate with 3/4-inch-diameter...

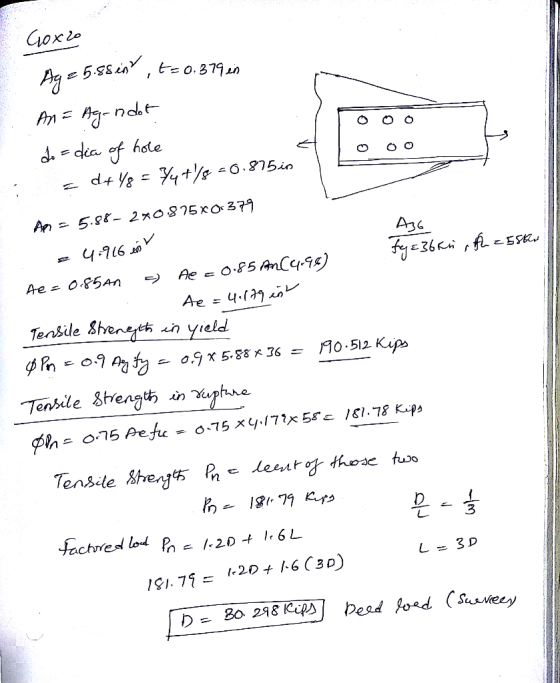

Pleqse show details and formulas. Select a single-angle tension member of A36 steel to resist a dead load of 20 kips and a live load of 50 kips. The length of the member is 20 feet, and it will...
Pleqse show details and formulas.
Select a single-angle tension member of A36 steel to resist a dead load of 20 kips and a live load of 50 kips. The length of the member is 20 feet, and it will be connected to a %-inch thick gusset plate with one line of 3/4-inch- diameter bolts through the long legs. There will be four or more bolts in this Q1) line
Select a single-angle tension member of A36 steel to resist a...
3. A C 9x15 is to be used as a tension member. The channel is bolted to a 5/8 in gusset plate wit...
3. A C 9x15 is to be used as a tension member. The channel is bolted to a 5/8 in gusset plate with 7/8 inch diameter, A307 bolts. The tension member is AS72 Grade 50 steel and the gusset plate is A36. Follow Figure 3. (a) Check all spacing and edge distance irements; (b) Compute the design strength based on shear and bearing; and (c) Compute the allowable strength based on shear and bearing. 23" 3" 3" С 9x 15...
2_...-3.5.1.3.5. 1 2 Q.4. A C7 x 9.8 tension member is connected to a 2/7-in.-thick gusset...
2_...-3.5.1.3.5. 1 2 Q.4. A C7 x 9.8 tension member is connected to a 2/7-in.-thick gusset plate. Both the member and the gusset plate are A36 steel C79.8 O o o a) (15%) Compute the available block shear strength of the tension member for LRFD b) (10%) Compute the available block shear strength of the gusset plate for LRFD t-217 Wh-diameter bolts
S- Section FIGURE P3.2-3 APL⅜x6tension member is steel is A36. Assume that A, A, and compute...
S- Section FIGURE P3.2-3 APL⅜x6tension member is steel is A36. Assume that A, A, and compute the following. a. The design strength for LRFD. b. The allowable strength for ASD. 32-4 APLx6 tension member is welded to a gusset plate as shown in Figure P3.2-4. The :and compute 3.2-4 ameter bolts, as shown A,A, and compute the FIGURE P3.2-4 ion member shown in Figure P3.2.5 is a PL tax 8 of A36 steel. The mem- ted to a gusset plate...
A double-angle tension member, 2L 3x2x 1/4, is subjected to a dead load of 12 kips
A double-angle tension member, 2L 3x2x 1/4, is subjected to a dead load of 12 kips, and a live load of 36 kips. It is connected to a gusset plate with one line of 3/4-inch-diameter bolts through the long legs. Is this member safe? Assume U=0.85. Fy =36 ksi and Fu = 58 ksi.
(20pts) An MC 9 x 25.4 is.connected with 7/8-inch-diameter A325 bolts as shown below. A36 steel...
(20pts) An MC 9 x 25.4 is.connected with 7/8-inch-diameter A325 bolts as shown below. A36 steel is used. The service loads are 35 kips dead load and 15 kips live load. Determine the adequacy of tensile capacity of the proposed MC shape using the LRFD method. You will need to determine an appropriate shear lag factor. Your solution has. to be complete for all the aspects regarding tension strength analysis and clearly indicate any assumptions you may make in solution....
Question 1: (Design Tension member) Design the x-bracing of a building, which is subjected to tension...
Question 1: (Design Tension member) Design the x-bracing of a building, which is subjected to tension force due to wind load. Use a suitable steel channel { C ? x ? } that conforms to ASTMA36. (take: Fy=36 ksi, Fu=58 ksi, use bolt of diameter is dbolt=1", two rows of bolts with spacing between bolts @ 4" in both directions. The length of the designed member is L= 30 ft. 2" 2" 41 Pu=130 Kips o o end view C...
which has l A single angle tension member,Ladx3/8 kength of 7 and o'% as show bl, is made from A36 steel is connect to 3/8-in thickness ckness gust plate are 28 kips dead load and 20 kips usi...
which has l A single angle tension member,Ladx3/8 kength of 7 and o'% as show bl, is made from A36 steel is connect to 3/8-in thickness ckness gust plate are 28 kips dead load and 20 kips using LRFD method and AISC )." The wrvice loads are 28 kips The servive By live load yewifivations determine the followings ) The adeyuacy of this member 2) Check Ar slenderness /s" PL
which has l A single angle tension member,Ladx3/8 kength of...
Problem 2 (20 points) A single-angle tension member (L7"x4"x5/8") has to ension member (L7"x4"x5/8") has two...
Problem 2 (20 points) A single-angle tension member (L7"x4"x5/8") has to ension member (L7"x4"x5/8") has two gage lines in its long leg and one in its short leg for 4 diameter bolts arranged per the illustration. The bolts in the song the angle to a gusset plate, the holes in the short led are empty (not connected to anyone GR 50 steel. Determine: a) The gross area of the angle b) The net area of the angle c) The effective...
Pleqse show details and formulas.
Select a single-angle tension member of A36 steel to resist a dead load of 20 kips and a live load of 50 kips. The length of the member is 20 feet, and it will be connected to a %-inch thick gusset plate with one line of 3/4-inch- diameter bolts through the long legs. There will be four or more bolts in this Q1) line
Select a single-angle tension member of A36 steel to resist a...
3. A C 9x15 is to be used as a tension member. The channel is bolted to a 5/8 in gusset plate with 7/8 inch diameter, A307 bolts. The tension member is AS72 Grade 50 steel and the gusset plate is A36. Follow Figure 3. (a) Check all spacing and edge distance irements; (b) Compute the design strength based on shear and bearing; and (c) Compute the allowable strength based on shear and bearing. 23" 3" 3" С 9x 15...
2_...-3.5.1.3.5. 1 2 Q.4. A C7 x 9.8 tension member is connected to a 2/7-in.-thick gusset plate. Both the member and the gusset plate are A36 steel C79.8 O o o a) (15%) Compute the available block shear strength of the tension member for LRFD b) (10%) Compute the available block shear strength of the gusset plate for LRFD t-217 Wh-diameter bolts
S- Section FIGURE P3.2-3 APL⅜x6tension member is steel is A36. Assume that A, A, and compute the following. a. The design strength for LRFD. b. The allowable strength for ASD. 32-4 APLx6 tension member is welded to a gusset plate as shown in Figure P3.2-4. The :and compute 3.2-4 ameter bolts, as shown A,A, and compute the FIGURE P3.2-4 ion member shown in Figure P3.2.5 is a PL tax 8 of A36 steel. The mem- ted to a gusset plate...
(20pts) An MC 9 x 25.4 is.connected with 7/8-inch-diameter A325 bolts as shown below. A36 steel is used. The service loads are 35 kips dead load and 15 kips live load. Determine the adequacy of tensile capacity of the proposed MC shape using the LRFD method. You will need to determine an appropriate shear lag factor. Your solution has. to be complete for all the aspects regarding tension strength analysis and clearly indicate any assumptions you may make in solution....
Question 1: (Design Tension member) Design the x-bracing of a building, which is subjected to tension force due to wind load. Use a suitable steel channel { C ? x ? } that conforms to ASTMA36. (take: Fy=36 ksi, Fu=58 ksi, use bolt of diameter is dbolt=1", two rows of bolts with spacing between bolts @ 4" in both directions. The length of the designed member is L= 30 ft. 2" 2" 41 Pu=130 Kips o o end view C...
which has l A single angle tension member,Ladx3/8 kength of 7 and o'% as show bl, is made from A36 steel is connect to 3/8-in thickness ckness gust plate are 28 kips dead load and 20 kips using LRFD method and AISC )." The wrvice loads are 28 kips The servive By live load yewifivations determine the followings ) The adeyuacy of this member 2) Check Ar slenderness /s" PL
which has l A single angle tension member,Ladx3/8 kength of...
Problem 2 (20 points) A single-angle tension member (L7"x4"x5/8") has to ension member (L7"x4"x5/8") has two gage lines in its long leg and one in its short leg for 4 diameter bolts arranged per the illustration. The bolts in the song the angle to a gusset plate, the holes in the short led are empty (not connected to anyone GR 50 steel. Determine: a) The gross area of the angle b) The net area of the angle c) The effective...
