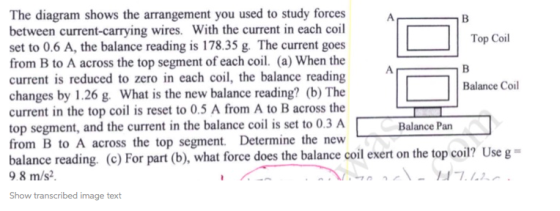

The diagram shows the arrangement you used to study forces A B between current-carrying wires. With the current in each coil Top Coil set to 0.6 A, the balance reading is 17835 g. The current goes from B to A across the top segment of each coil. (a) When the current is reduced to zero in each coil, the balance reading O Balance Coil changes by 1.26 g. What is the new balance reading? (b) The current in the top coil is reset to 0.5 A from A to B across the top segment, and the current in the balance coil is set to 03A from B to A across the top segment. Determine the new balance reading. (c) For part (b), what force does the balance coil exert on the top coil? Use g 9.8 m/s2. Balance Pan Show transcribed image text

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

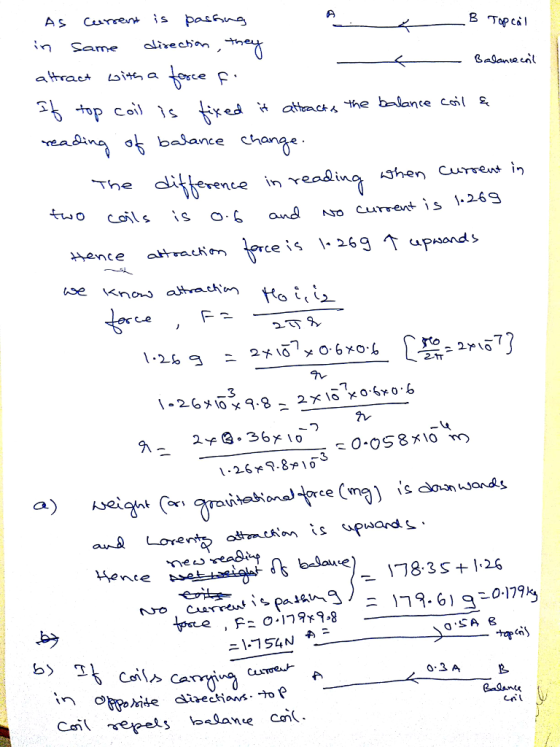

ore 18.99 9.8 8.3x53N
