Question

For both resistances, plot the discharge curve of ln (V/V0) vs. time. From the slope of the line, calculate C (capacity). Please write your answer as large and neatly as possible.

Discharge
	R = 10,000	R = 5,000
Voltage (V)	Time (S)	Time (S)
14	0	0
13	4.71	3.50
12	9.96	5.33
11	15.71	8.33
10	22.08	11.24
9	28.99	14.58
8	36.64	18.43
7	45.61	22.86
6	56.05	28.21
5	1:08.07	34.40
4	1:21.27	41.83
3	1:42.48	51.80
Value of capacitor = 6000μF	V0 = 14.01 V

Answer 1

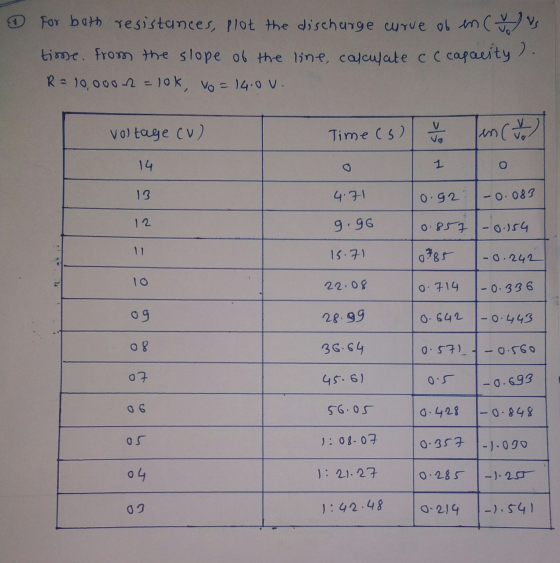

I for both resistances, plot the discharge curve of ency vs time. From the slope of the line calculate c c capacity ). RP 10,000 2 -10k, Vo = 14.0 V. V Voltage cv Time (5) ent 14 1 o 13 4.71 0.92 -0.083 12 g. 96 0.857 -0.154 15.71 0785 -0.242 10 22.08 0.714 -0.336 09 28.99 0.642 -0.443 08 36.64 0.57% -0.560 07 45.61 0.5 -0.693 06 56.05 0.428 -0.848 os 1:08.07 0.357 -1.000 04 1:21.27 0.285 -1.250 03 1:42.48 0.214 -).541
