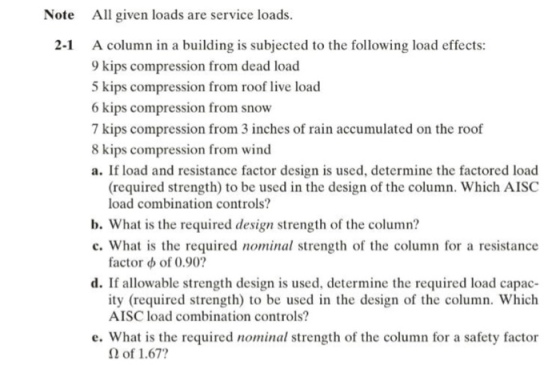

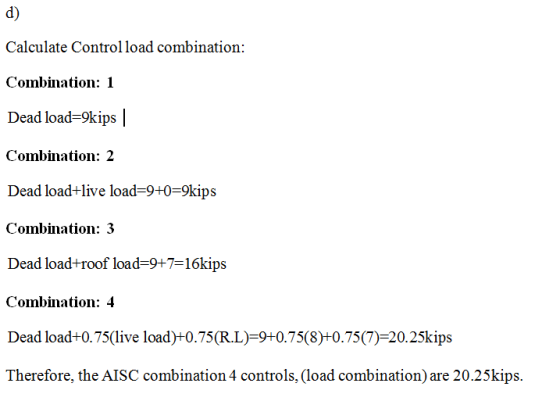

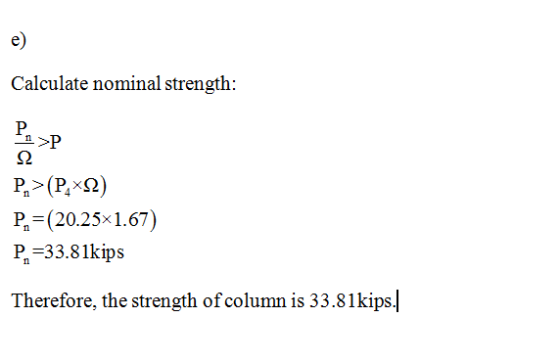

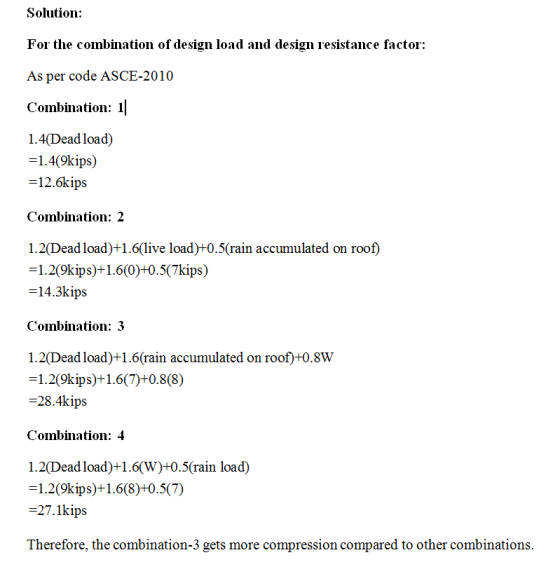

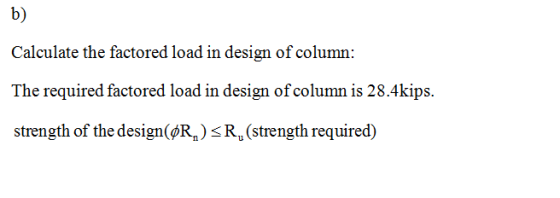

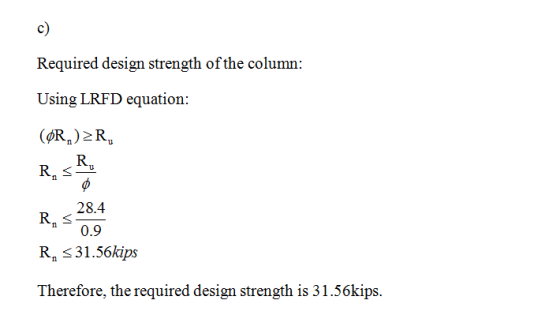

All given loads are service loads. A column in a building is subjected to the following...
roof A beam is part of the framing system for the floor of an office building....
roof A beam is part of the framing system for the floor of an office building. The floor is subjected to both dead loads and live loads. The maximum moment caused by the service dead load is 45 ft-kips, and the maximum moment for the service live load is 63 ft-kips (these moments occur at the same location on the beam and can therefore be combined). 2-3 a. If load and resistance factor desig n is used, determine the maximum...
A column in the upper story of a building is subjected to a compressive load from the following s...
A column in the upper story of a building is subjected to a compressive load from the following sources: . dead load = 30.8 kips, . occupancy live load = 1.7 kips, (Assume this is from a live load of less than 100 psf, and it is not a garage or place of public assembly.) . roof live load = 18.7 kips, and snow load 19.7 kips. If the load and resistance factor design (LRFD) method is used, what is...
Structural steel buildings frequently are designed with diagonal bracing systems to resist lateral loads (horizontal forces...
Structural steel buildings frequently are designed with diagonal bracing systems to resist lateral loads (horizontal forces resulting from wind or earthquake loadings). A certain bracing system is subjected to the following loads: dead load, 13.3 kips, occupancy live load -6.9 kips, roof live load – 1.3 kips, snow load – 1.3 kips, wind load – 150.6 kips, and earthquake load – 161.1 kips. a. Determine the required factored load capacity for LRFD. Which load combi- nation controls? b. Determine the...
Column Design for Compression Given: A column supports vertical loads Species and Grade: DF-L Sel...
Column Design for Compression Given: A column supports vertical loads Species and Grade: DF-L Select Structural Column Size 6x10 Axial dead load, PD 5 kips Axial snow load, Ps 15 kips Column length, L = 16 feet The column is not braced about either axis The column is pinned top and bottom, k 1.0 CM = 1.0, Ct = 1.0, Ci = 1.0 Design load combinations to be considered: D+ S Find Determine the allowable axial load for each of...
2. Design Wide flange column section only of A992 steel to serve as a pinned- end main member column 30 ft long to carry an axial compression loads in a braced structure, based on AISC LRFD metho...
2. Design Wide flange column section only of A992 steel to serve as a pinned- end main member column 30 ft long to carry an axial compression loads in a braced structure, based on AISC LRFD method. The dead load is 50 kips A992 13-0" and live load is 70 kips. The member has strong axis direction supported at 17ft height from the bottom of the column. Dead load is 20 kips and live load is 40 kips. Assume the...
Column Design for Flexure and Compression Given: An exterior column supports vertical and wind lo...
Column Design for Flexure and Compression Given: An exterior column supports vertical and wind loads Species and Grade: DF-L Select Structural Column Size 6x10 Wind load causes bending about strong axis Axial dead load, PD 5 kips Axial snow load, Ps 15 kips Uniform wind load, Ww-200 р.l.f. Column length, L 16 feet The column is not braced about either axis Column is pinned top and bottom, k 1.0 CM-1.0, Ct 1.0, Ci- 1.0 Design load combination to be considered:...
A column in a 2-story building supports loads from the second floor and the roof. Loads...
A column in a 2-story building supports loads from the second floor and the roof. Loads were calculated and are provided below: Roof Dead = 18,000 pounds Roof Live = 14,400 pounds Wind (down) = 36,000 pounds Wind (up) = 60,000 pounds Floor Dead - 32,000 pounds Floor Live - 39,000 pounds. Using applicable ASD load combinations (refer to Ch. 2 of your textbook), determine the following: a. The maximum axial compression load in pounds for the column supporting the...
Consider the beam subjected to a concentrated load consisting of 2.25 kips of dead load and...
Consider the beam subjected to a concentrated load consisting of
2.25 kips of dead load and 5.55 kips of live load at point B. Find
maximum factored beam shear, moment, and deflection.
Consider the beam and loading given below. The beam is subjected to a concentrated load consisting of 2.25 kips of dead load and 5.55 kips of live load at point B. Neglect beam weight. You may use any information from the AISC Manual, a) Draw the general shape...
Following loads act on a roof. What is the design roof load as per LRFD design...
Following loads act on a roof. What is the design roof load as per LRFD design method? Dead load (D) = 200 psf Roof live load (L.) = 40 psf Rain load(R) = 20 psf Snow load (S) = 45 psf Wind load (W) = -32 psf (uplift) 312.5 psf 334.4 psf 256.7 psf 211.3 psf
Given: A W14X109 column (A992 steel) requires a base plate (A36 steel) design. Assume the base...
Given: A W14X109 column (A992 steel) requires a base plate (A36 steel) design. Assume the base plate will be on the full area of concrete support. The dead load compression in the column is 320 kips and the live load compression in the column is 600 kips. The concrete support under the base plate has a 28-day strength of fc 5 ksi. Required: Design the base plate with the goal of minimizing the required thickness.
roof A beam is part of the framing system for the floor of an office building. The floor is subjected to both dead loads and live loads. The maximum moment caused by the service dead load is 45 ft-kips, and the maximum moment for the service live load is 63 ft-kips (these moments occur at the same location on the beam and can therefore be combined). 2-3 a. If load and resistance factor desig n is used, determine the maximum...
A column in the upper story of a building is subjected to a compressive load from the following sources: . dead load = 30.8 kips, . occupancy live load = 1.7 kips, (Assume this is from a live load of less than 100 psf, and it is not a garage or place of public assembly.) . roof live load = 18.7 kips, and snow load 19.7 kips. If the load and resistance factor design (LRFD) method is used, what is...
Structural steel buildings frequently are designed with diagonal bracing systems to resist lateral loads (horizontal forces resulting from wind or earthquake loadings). A certain bracing system is subjected to the following loads: dead load, 13.3 kips, occupancy live load -6.9 kips, roof live load – 1.3 kips, snow load – 1.3 kips, wind load – 150.6 kips, and earthquake load – 161.1 kips. a. Determine the required factored load capacity for LRFD. Which load combi- nation controls? b. Determine the...
Column Design for Compression Given: A column supports vertical loads Species and Grade: DF-L Select Structural Column Size 6x10 Axial dead load, PD 5 kips Axial snow load, Ps 15 kips Column length, L = 16 feet The column is not braced about either axis The column is pinned top and bottom, k 1.0 CM = 1.0, Ct = 1.0, Ci = 1.0 Design load combinations to be considered: D+ S Find Determine the allowable axial load for each of...
2. Design Wide flange column section only of A992 steel to serve as a pinned- end main member column 30 ft long to carry an axial compression loads in a braced structure, based on AISC LRFD method. The dead load is 50 kips A992 13-0" and live load is 70 kips. The member has strong axis direction supported at 17ft height from the bottom of the column. Dead load is 20 kips and live load is 40 kips. Assume the...
Column Design for Flexure and Compression Given: An exterior column supports vertical and wind loads Species and Grade: DF-L Select Structural Column Size 6x10 Wind load causes bending about strong axis Axial dead load, PD 5 kips Axial snow load, Ps 15 kips Uniform wind load, Ww-200 р.l.f. Column length, L 16 feet The column is not braced about either axis Column is pinned top and bottom, k 1.0 CM-1.0, Ct 1.0, Ci- 1.0 Design load combination to be considered:...
A column in a 2-story building supports loads from the second floor and the roof. Loads were calculated and are provided below: Roof Dead = 18,000 pounds Roof Live = 14,400 pounds Wind (down) = 36,000 pounds Wind (up) = 60,000 pounds Floor Dead - 32,000 pounds Floor Live - 39,000 pounds. Using applicable ASD load combinations (refer to Ch. 2 of your textbook), determine the following: a. The maximum axial compression load in pounds for the column supporting the...
Consider the beam subjected to a concentrated load consisting of
2.25 kips of dead load and 5.55 kips of live load at point B. Find
maximum factored beam shear, moment, and deflection.
Consider the beam and loading given below. The beam is subjected to a concentrated load consisting of 2.25 kips of dead load and 5.55 kips of live load at point B. Neglect beam weight. You may use any information from the AISC Manual, a) Draw the general shape...
Following loads act on a roof. What is the design roof load as per LRFD design method? Dead load (D) = 200 psf Roof live load (L.) = 40 psf Rain load(R) = 20 psf Snow load (S) = 45 psf Wind load (W) = -32 psf (uplift) 312.5 psf 334.4 psf 256.7 psf 211.3 psf
Given: A W14X109 column (A992 steel) requires a base plate (A36 steel) design. Assume the base plate will be on the full area of concrete support. The dead load compression in the column is 320 kips and the live load compression in the column is 600 kips. The concrete support under the base plate has a 28-day strength of fc 5 ksi. Required: Design the base plate with the goal of minimizing the required thickness.
