Homework Answers
please rate..
Add Answer to:

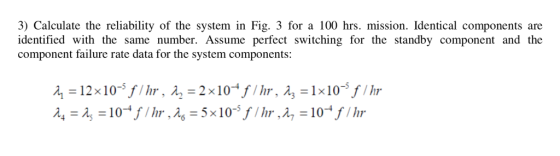

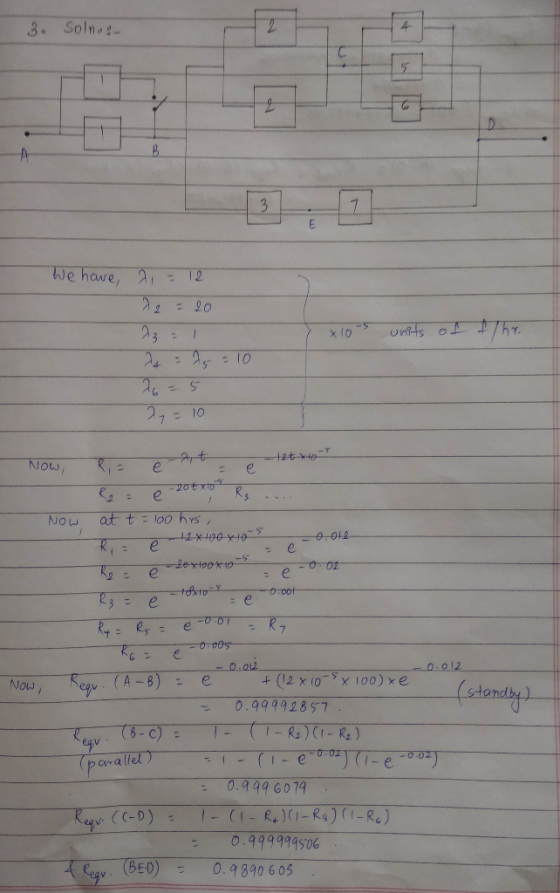

3) Calculate the reliability of the system in Fig. 3 for a 100 hrs. mission. Identical...
A standby mechanical system is composed of three independent and identical motors (i.e., one unit operating...
A standby mechanical system is composed of three independent and identical motors (i.e., one unit operating and the other two on standby). The motor constant failure rate is 0.0009 failures/hour. Calculate the system reliability for a 200-hour mission for this mechanical system.
module, consists of five repairable components, all of which must operate for system success. Each component performs a different function but all five share identical reliability parameters. Spe...
module, consists of five repairable components, all of which must operate for system success. Each component performs a different function but all five share identical reliability parameters. Specifically, MTTF for each component is 100 years and MTTR 40 hours. Calculate the following for this single system module: 1) Failure rate 2) Average down time 3) Unavailability
module, consists of five repairable components, all of which must operate for system success. Each component performs a different function but all five share...
mission oriented system consists of 3 non-identical, non-repairable components, two of which must operate for system...
mission oriented system consists of 3 non-identical, non-repairable components, two of which must operate for system success. If the failure rates are 0.01, 0.05 and 0.1 failures/106 hours, evaluate the MTTF of the system.
(1)The field test data in respect of 172 components is as given below. In the life-testing...
(1)The field test data in respect of 172 components is as given below. In the life-testing of 100 specimens of a particular device, the number of failures during each time interval of twenty hours is shown in Table below. Estimate and Plot: the hazard function, failure density and reliability function. Time/Hours Failure 0-1000 59 1000-2000 24 2000-3000 3000-4000 4000-5000 5000-6000 29 30 17 13 (1) calculate the reliability of the system shown in the figure below 0.8 5 0.8 0.9...
A system module, consists of five repairable components, all of which must operate for System success. Each component performs a different function but all five share identical relhability parameters...
A system module, consists of five repairable components, all of which must operate for System success. Each component performs a different function but all five share identical relhability parameters. Specifially, MTTF for each component is 100 years and MTTR 40 hours. Calculate the following for this single system module: 1) Failure rate V 2) Average down time 3) Unavailability The system in the three questions above is reinforced by a second identical module in parallel with the first. For the...
A system module, consists of five repairable components, all of which must operate for System success. Each component performs a different function but all five share identical relhability parameters...
A system module, consists of five repairable components, all of which must operate for System success. Each component performs a different function but all five share identical relhability parameters. Specifially, MTTF for each component is 100 years and MTTR 40 hours. Calculate the following for this single system module: 1) Failure rate V 2) Average down time 3) Unavailability The system in the three questions above is reinforced by a second identical module in parallel with the first. For the...
Question 2 Two non-identical amplifiers are required to run the traffic of a satellite at full...
Question 2 Two non-identical amplifiers are required to run the traffic of a satellite at full load. Assume that amplifier 1 and amplifier 2 have constant failure rates of 2 = 0.0001 failure/hour and l = 0.0002 failure/hour respectively. Calculate this series system mean time to failure and reliability for a 100 hour mission assuming both amplifiers start operating at t=0. (Use back side of the paper to solve Page 2 of 5
The specifications for a power unit consisting of 3 independent and serially related components (failure modes)...
The specifications for a power unit consisting of 3 independent and serially related components (failure modes) require a design life of 5 years with a 0.95 reliability Let each component have a constant failure rate such that the first component’s rate is twice that of the second and the third components rate is three times that of the second. What should be the MTTF of each component and the system? If two identical power units are placed in parallel, what...
Problem: 14 pointsl Given the Reliability Block Diagram below of a system with 3 different compon...
please solve only 1.2 and 1.3
dont solve 1.1
thanks
Problem: 14 pointsl Given the Reliability Block Diagram below of a system with 3 different components in series, each with a time to failure distribution and a baseline 3-year reliability, which is the current warranty period for the system Part A Weibull, shape β-2 R(3 years) 0.75 Part B Expon R(3 years) 0.70 Part C Exponential R(3 years) 0.80 1.1) Determine the system reliability at 3-year. Management wants to improve...
Question 3 20 pts A system has three components with reliability values A, B, and C....
Question 3 20 pts A system has three components with reliability values A, B, and C. The reliability of the system. R. can be calculated using the equation 1.R - A+B+C 2.R-AxBxC 3. Insufficient Information has been provided. 4. R = 1 - (1 - A)(1-B1-C)] 04 O 2 U Question 4 20 pts A system is made up of four independent components in series each having a failure rate of .005 failures per hour. If time to failure is...
module, consists of five repairable components, all of which must operate for system success. Each component performs a different function but all five share identical reliability parameters. Specifically, MTTF for each component is 100 years and MTTR 40 hours. Calculate the following for this single system module: 1) Failure rate 2) Average down time 3) Unavailability
module, consists of five repairable components, all of which must operate for system success. Each component performs a different function but all five share...
(1)The field test data in respect of 172 components is as given below. In the life-testing of 100 specimens of a particular device, the number of failures during each time interval of twenty hours is shown in Table below. Estimate and Plot: the hazard function, failure density and reliability function. Time/Hours Failure 0-1000 59 1000-2000 24 2000-3000 3000-4000 4000-5000 5000-6000 29 30 17 13 (1) calculate the reliability of the system shown in the figure below 0.8 5 0.8 0.9...
A system module, consists of five repairable components, all of which must operate for System success. Each component performs a different function but all five share identical relhability parameters. Specifially, MTTF for each component is 100 years and MTTR 40 hours. Calculate the following for this single system module: 1) Failure rate V 2) Average down time 3) Unavailability The system in the three questions above is reinforced by a second identical module in parallel with the first. For the...
A system module, consists of five repairable components, all of which must operate for System success. Each component performs a different function but all five share identical relhability parameters. Specifially, MTTF for each component is 100 years and MTTR 40 hours. Calculate the following for this single system module: 1) Failure rate V 2) Average down time 3) Unavailability The system in the three questions above is reinforced by a second identical module in parallel with the first. For the...
Question 2 Two non-identical amplifiers are required to run the traffic of a satellite at full load. Assume that amplifier 1 and amplifier 2 have constant failure rates of 2 = 0.0001 failure/hour and l = 0.0002 failure/hour respectively. Calculate this series system mean time to failure and reliability for a 100 hour mission assuming both amplifiers start operating at t=0. (Use back side of the paper to solve Page 2 of 5
please solve only 1.2 and 1.3
dont solve 1.1
thanks
Problem: 14 pointsl Given the Reliability Block Diagram below of a system with 3 different components in series, each with a time to failure distribution and a baseline 3-year reliability, which is the current warranty period for the system Part A Weibull, shape β-2 R(3 years) 0.75 Part B Expon R(3 years) 0.70 Part C Exponential R(3 years) 0.80 1.1) Determine the system reliability at 3-year. Management wants to improve...
Question 3 20 pts A system has three components with reliability values A, B, and C. The reliability of the system. R. can be calculated using the equation 1.R - A+B+C 2.R-AxBxC 3. Insufficient Information has been provided. 4. R = 1 - (1 - A)(1-B1-C)] 04 O 2 U Question 4 20 pts A system is made up of four independent components in series each having a failure rate of .005 failures per hour. If time to failure is...
