Subtracting three integers. Using the ADDSUB program from the section 3.2 (shown below) as a reference,...
Subtracting three integers.

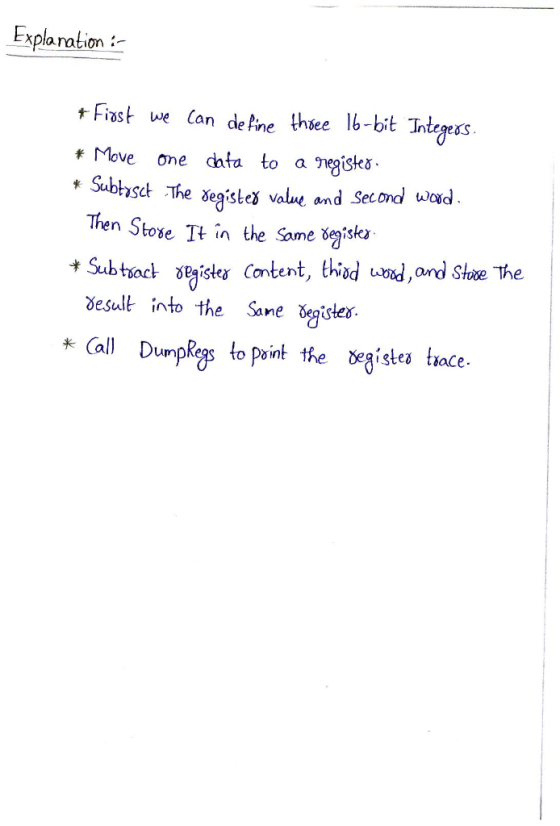

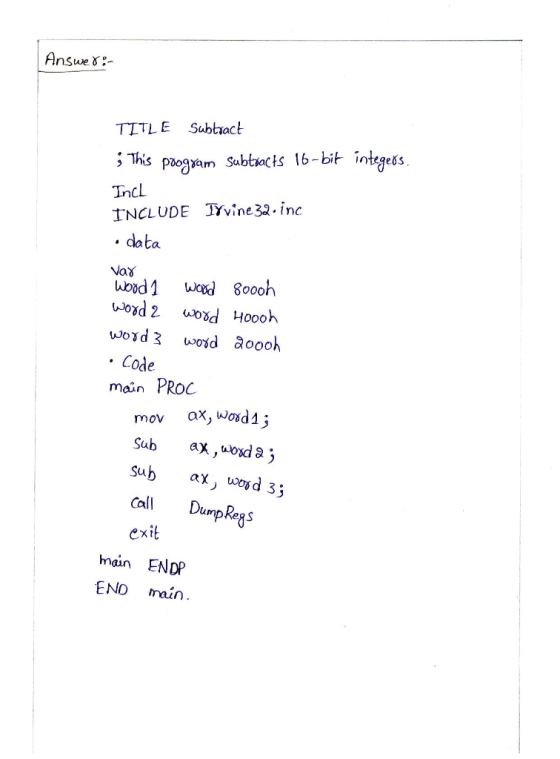

Using the ADDSUB program from the section 3.2 (shown below) as a reference, write a program that subtracts three integers only 16-bit registers. Insert a cal DumpRegs statement to display the register values
This program must be done using Visual studio. Please submit .asm file or copy/paste your program here.
Please note that you will have two extra days of grace period for all homeworks, including midterm and final exam projects.
; AddTwo.asm - adds two 32-bit integers
.386
.model flat,stdcall
.stack 4096
ExitProcess PROTO, dwExitCode:DWORD
.code
main PROC
mov eax,5 ; move 5 to the eax register
add eax,6 ; add 6 to the eax register
INVOKE ExitProcess,0
main ENDP
END main
