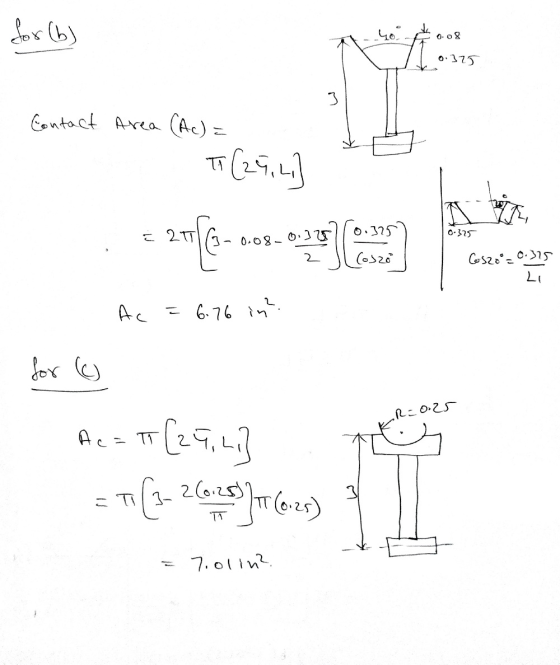

![x () 0.08 0.375 31 Contact Area (Ac) = E 77 (25.1] 21 0-325 -0.08-0.37 Coszo Coszoo 0.375 Li Ac = 6.76 in? LR=0.25 for (o AC](http://img.homeworklib.com/questions/49b9b3d0-9f8e-11eb-bd31-8f294e7cdb6a.png?x-oss-process=image/resize,w_560)
Add Answer to:

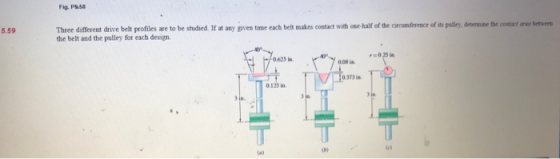

Fig. PS.58 Three different drive belt profiles are to be studied. If at any given time...
A shipping company is in need of a conveyor belt. At any given time, it is expected that the conv...
A shipping company is in need of a conveyor belt. At any given time, it is expected that the conveyor is loaded with 10 boxes weighing 50 lbs each. The conveyor needs to be at 17 degrees angle with the horizontal. The motion source runs at 1800 RPM. Assuming 100% efficiency and the conveyor pulley diameter is 10 inches. o Suggest a speed reduction solution using Helical gears
A shipping company is in need of a conveyor belt. At any...
• A shipping company is in need of a conveyor belt. At any given time, it is expected that the co...
• A shipping company is in need of a conveyor belt. At any given time, it is expected that the conveyor is loaded with 10 boxes weighing 50 lbs each. The conveyor needs to be at 17 degrees angle with the horizontal. The motion source runs at 1800 RPM. Assuming 100% efficiency and the conveyor pulley diameter is 10 inches. o Calculate the required horsepower. o Suggest a speed reduction solution using spur gears o Suggest a speed reduction solution...
find v belt drive design power select belt type determine shive size (belt speed 4000 ft/min)...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
Learning Goal: Part A - Shortest Time to Reach a Given Speed with Rear-Wheel Drive To...
Learning Goal: Part A - Shortest Time to Reach a Given Speed with Rear-Wheel Drive To use the equations of motion as they relate to linear translation of an object to determine characteristics about its motion. The car shown has a mass of m = 1100 kg and a center of mass located at G. The coefficient of static friction between the wheels and the road is pls = 0.230. The dimensions are a = 1.25 m, b= 1.55 m,...
Part A - Shortest Time to Reach a Given Speed with Rear-Wheel Drive Learning Goal: To...
Part A - Shortest Time to Reach a Given Speed with Rear-Wheel Drive Learning Goal: To use the equations of motion as they relate to linear translation of an object to determine characteristics about its motion. The car shown has a mass of m = 950 kg and a center of mass located at G. The coefficient of static friction between the wheels and the road is pls = 0.250. The dimensions are a = 1.05 m, b= 1.75 m,...
G) r(t) Figure 1: Feedback control system A pulley and belt transmission has a linearized relationship between the driven pulley angle θ(t) in degrees and the input torque u(t) in Newton meters given...
G) r(t) Figure 1: Feedback control system A pulley and belt transmission has a linearized relationship between the driven pulley angle θ(t) in degrees and the input torque u(t) in Newton meters given by the following differential equation du(t) A feedback control system (illustrated in Figure 1) needs to be designed such that the closed-loop system is asymptotically stable and such that the following design criteria are met: 1. the gain crossover frequency a should be between and a 2....
In a restaurant there are three machines frying chips. At any given moment, at least two...
In a restaurant there are three machines frying chips. At any given moment, at least two of the three machines are working. Otherwise a "STOP" sign must be hung on the machines and it will have to get repaired. Define Yi as the life span of the i-th machine that is distributed as Gamma (3,1) (in the months). Suppose that the machines work independently of each other. 1) Find the density function of Yi. What is the probability that one...
Indicate (explaining your reasoning) to what figure (I, II, III, IV), if any, corresponds each one of the following fields given either in time or phasor form
The figures described by the tip of the eleetrie veetor with time for different plane waves on one
of its wavefront surfaces are shown in igure 1. Note that the last value of the instantaneous
field is highlighted by their components on X and Y axis.
Polarization I
Polarization Il
Polarization III
Polarization IV
Figure 1: Polarizaciones.Figure 1: Polarizaciones.
Indicate (explaining your reasonimg) to what hgure (1, 11, I1l, IV), if any, corresponds each
one of the following fields given...
Figure 1 shows the layout of countershaft used to transmit power to a blower through a...
Figure 1 shows the layout of countershaft used to transmit power to a blower through a pulley drive (4-5). Pulley (driving sheave) 4 has a diameter of 125-mm and pulley (driven sheave) 5 has a diameter of 75 mm. Pulley 5 is mounted vertically below pulley 4 (as shown in the figure). Belt tension on the loose side is 20% of the tension on the tight side. A power of 7.5 kW is transmitted via the gear set (2-3) from...
Al is metal, silvery in colour, with a resistivity of 2.65 μΩ.cm at room temperature. it has the ...
Al is metal, silvery in colour, with a resistivity of 2.65 μΩ.cm at room temperature. it has the so-called face centred cubic (FCC) structure, in which the fractional coordinates of the atoms within the (conventional cubic, side length of a 4.046 A) unit cell are: (0,0,0), (12%,0), (12,0,%), (0,%,%) The intermetallic compound AbAu is bright purple in colour, has a melting point of 1060°C, is rather brittle, and has a resistivity of p-8 u2.cm.1 the repeating unit is also cubic...
A shipping company is in need of a conveyor belt. At any given time, it is expected that the conveyor is loaded with 10 boxes weighing 50 lbs each. The conveyor needs to be at 17 degrees angle with the horizontal. The motion source runs at 1800 RPM. Assuming 100% efficiency and the conveyor pulley diameter is 10 inches. o Suggest a speed reduction solution using Helical gears
A shipping company is in need of a conveyor belt. At any...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
Learning Goal: Part A - Shortest Time to Reach a Given Speed with Rear-Wheel Drive To use the equations of motion as they relate to linear translation of an object to determine characteristics about its motion. The car shown has a mass of m = 1100 kg and a center of mass located at G. The coefficient of static friction between the wheels and the road is pls = 0.230. The dimensions are a = 1.25 m, b= 1.55 m,...
Part A - Shortest Time to Reach a Given Speed with Rear-Wheel Drive Learning Goal: To use the equations of motion as they relate to linear translation of an object to determine characteristics about its motion. The car shown has a mass of m = 950 kg and a center of mass located at G. The coefficient of static friction between the wheels and the road is pls = 0.250. The dimensions are a = 1.05 m, b= 1.75 m,...
G) r(t) Figure 1: Feedback control system A pulley and belt transmission has a linearized relationship between the driven pulley angle θ(t) in degrees and the input torque u(t) in Newton meters given by the following differential equation du(t) A feedback control system (illustrated in Figure 1) needs to be designed such that the closed-loop system is asymptotically stable and such that the following design criteria are met: 1. the gain crossover frequency a should be between and a 2....
Figure 1 shows the layout of countershaft used to transmit power to a blower through a pulley drive (4-5). Pulley (driving sheave) 4 has a diameter of 125-mm and pulley (driven sheave) 5 has a diameter of 75 mm. Pulley 5 is mounted vertically below pulley 4 (as shown in the figure). Belt tension on the loose side is 20% of the tension on the tight side. A power of 7.5 kW is transmitted via the gear set (2-3) from...
Al is metal, silvery in colour, with a resistivity of 2.65 μΩ.cm at room temperature. it has the so-called face centred cubic (FCC) structure, in which the fractional coordinates of the atoms within the (conventional cubic, side length of a 4.046 A) unit cell are: (0,0,0), (12%,0), (12,0,%), (0,%,%) The intermetallic compound AbAu is bright purple in colour, has a melting point of 1060°C, is rather brittle, and has a resistivity of p-8 u2.cm.1 the repeating unit is also cubic...
