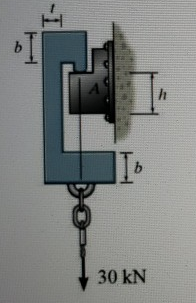

The steel bracket A is used to support the hanger under a centrally applied force of 30 kN as shown
The steel bracket A is used to support the hanger under a centrally applied force of 30 kN as shown. Given the thickness of 20 cm, determine the smallest dimension of h, b, and t in order for material's safety. The materials properties are listed below.
| sigma_(u) | tau_(u) | Factor of Safety | |
|---|---|---|---|
| Bracket | 350MPa | 220MPa | 3 |
| Hanger | 400MPa | 180MPa |
Homework Answers
✔ Recommended Answer
Answer #1

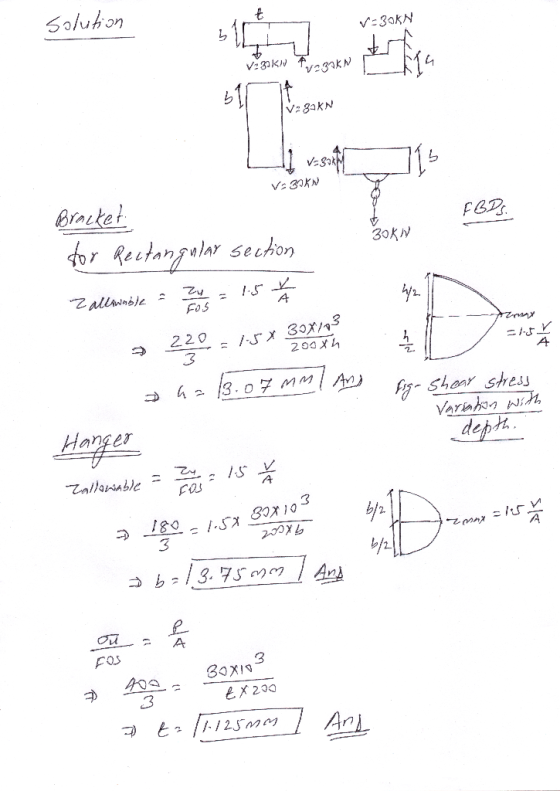

V3KN v2gakN V8akN Braeket o Rectangolar seedon FB 30KN allwnble 4 Fos 2,20 3 h3.07M MIA FIg-Shoar shes Harger depth 2 /S Znltoriable 3 /SX 3 b 3.7S M An BOXI EX 200 Arj
