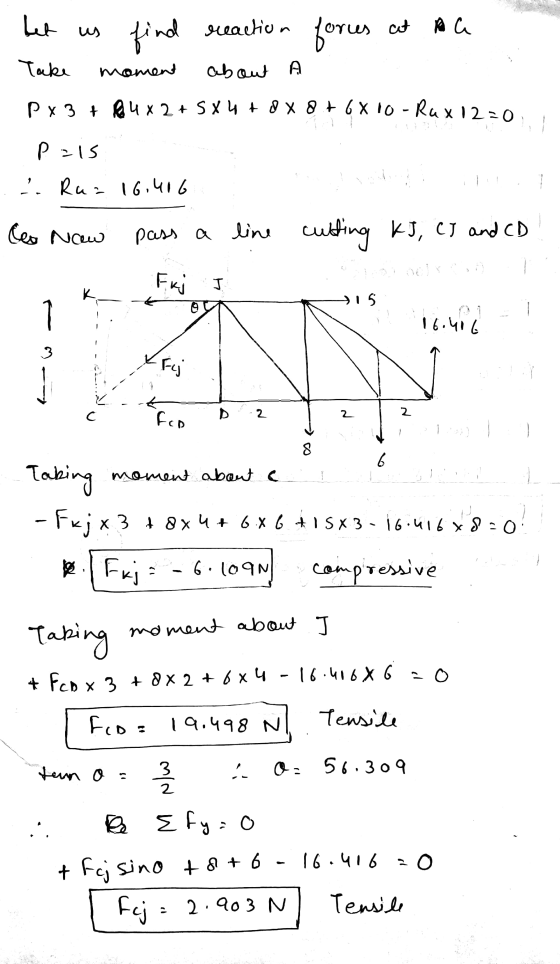

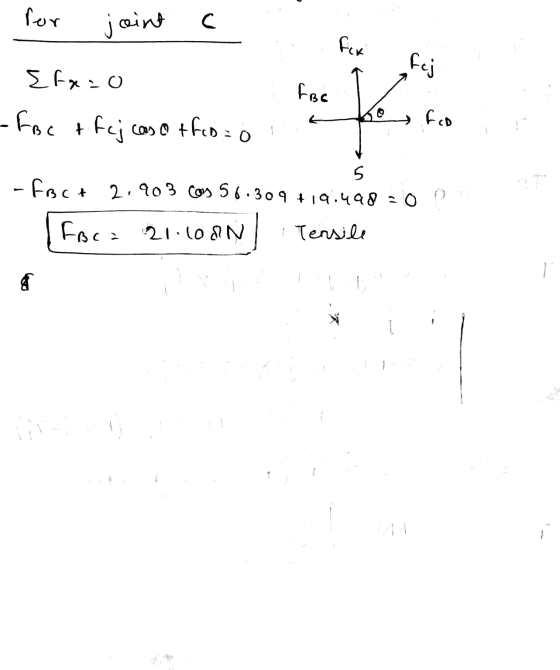

P= 15kn Find Fkj F cj Fcd Flb and Fbc
Homework Answers
please
donot forget to like
Find Fab, Faf, Fbc, Fbf, Fbg, Fcd, Fcg, Fde, Fdg, Fdh, Feh, Ffg, and Fgh HW 11: Method of Jo...
Find Fab, Faf, Fbc, Fbf, Fbg, Fcd, Fcg, Fde, Fdg, Fdh,
Feh, Ffg, and Fgh
HW 11: Method of Joints Problem 10/10 30° C30° Determine the force in each member of the truss shown. The applied load P 6 kN. Round the final answers to the nearest kN. Use positive values for tension and negative for compression. DG = FD EH FFG GH = 0/3 0/? points submissions SUBMIT O Type here to search
Use the force method to determine the force in each member of the truss. Take a...
Use the force method to determine the force in each member of the truss. Take a 2 kN, b 2 kN, c 20 kN and EA = 20000 kN (for all the members). a F В D 2 m A E 3 m 3 m Please fill in your solutions here: a) FAB kN b) FAC kN c) FBC kN d) FBD= kN e) FCD kN kN FCE kN g) FCF kN h) FDE kN i) FDF kN j) FEF...
part a, b, c & d are correct Week 4, Question 2: Use the force method...
part a, b, c & d are
correct
Week 4, Question 2: Use the force method to determine the force in each member of the truss. Take a = 7 kN, b = 8 kN, c = 11 kN and EA = 20000 kN (for all the members). B) 2 m 3 m— 3 m Please fill in your solutions here: a) FAB = -11 kN Your last answer was interpreted as follows: -11 b) FAC = 0 KN Your...
i want to know the solution since the answers were already given 3. M K 2...
i want to know the solution since the answers were
already given
3. M K 2 m N o P 2 m B C D E F G H 2 kN 2 KN 5 kN 3 kN 16 m, 8 @ 2 m Determine the force in members DE, OE, LE and LK. (ANS: DE = 7.38kN (T), OE = 3.36kN (T), LE = ON, LK = 9.75kN (C))

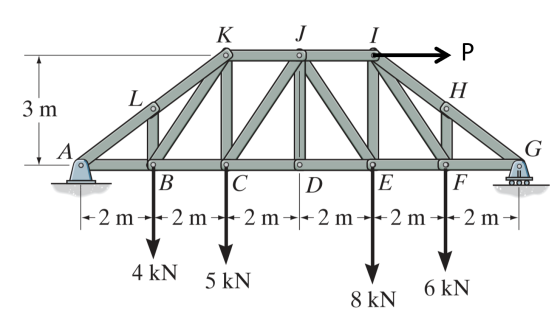

Question 2 (30P): Determine the moment contribution in the direction AC of the force P=15kN that...
Question 2 (30P): Determine the moment contribution in the direction AC of the force P=15kN that is applied in the direction GB. 6 m 8 in B 4 m F
i need solution for 3 practice prolem Practice Problem 10 Practice Problem 10 FBD Bucket FBD...
i need solution for 3 practice prolem
Practice Problem 10 Practice Problem 10 FBD Bucket FBD Joint A 0.25 n isn Find forces in AB, AC and AD. Take the weight to be 1200 lb acting at point G. FBD AB FAc-2512.2 lb FAB-3076.8 lb FAD-3431.7lb FBD AC+Bucket 0238 isn Practice Problem 12 Practice Problem 13 Find the support reactions. Find force P for equilibrium. Take the weight of the block to be 20 lb. 30 kN E,-SKN B, 15kN...
Problem 4 EM2 Find zero force members Determine the force in members KJ, CJ, and CD...
Problem 4 EM2 Find zero force members Determine the force in members KJ, CJ, and CD using method of sections and state if the members are in tension or compression. Then use the previous result to find the force in member JE using the method of joints. 30 kN 20 KN 15 kN 15 kN 10 kN 5 kN LKL HG B FI 3 @ 1 m - 3 m 6@ 3 m = 18 m Problem 4 EM2 Find...
Problem 3 Find the axial force in member CD, CJ and IJ using the method of...
Problem 3 Find the axial force in member CD, CJ and IJ using the method of sections. 2 kN 2 kN 2 kN 2 kN 2 kN 4 m
Write a matrix equation TM + F = 0, where T is the matrix of direction cosines, M are the unknown...
Write a matrix equation TM + F = 0, where T is the
matrix of direction cosines,
M are the unknown member and reaction forces and F is the vector of
known external forces applied to the truss.
The matrix equation will be used in matlab, I can input it
myself but I am having issues forming that actual correct
matricies.
2. Determine the force in each member of the Warren truss and state if the members are in tension...
find the distribution factor of the beam between Hinge and Fix-End Support A. 2/3 B. 3/5...
find the distribution factor of the beam between Hinge
and Fix-End Support
A. 2/3
B. 3/5
C. 1/2
D. 3/8
90 kN/m 165 KN 120 KN.m 3m 1m 2m А в 1mA 2m с D E F
Find Fab, Faf, Fbc, Fbf, Fbg, Fcd, Fcg, Fde, Fdg, Fdh,
Feh, Ffg, and Fgh
HW 11: Method of Joints Problem 10/10 30° C30° Determine the force in each member of the truss shown. The applied load P 6 kN. Round the final answers to the nearest kN. Use positive values for tension and negative for compression. DG = FD EH FFG GH = 0/3 0/? points submissions SUBMIT O Type here to search
Use the force method to determine the force in each member of the truss. Take a 2 kN, b 2 kN, c 20 kN and EA = 20000 kN (for all the members). a F В D 2 m A E 3 m 3 m Please fill in your solutions here: a) FAB kN b) FAC kN c) FBC kN d) FBD= kN e) FCD kN kN FCE kN g) FCF kN h) FDE kN i) FDF kN j) FEF...
part a, b, c & d are
correct
Week 4, Question 2: Use the force method to determine the force in each member of the truss. Take a = 7 kN, b = 8 kN, c = 11 kN and EA = 20000 kN (for all the members). B) 2 m 3 m— 3 m Please fill in your solutions here: a) FAB = -11 kN Your last answer was interpreted as follows: -11 b) FAC = 0 KN Your...
i want to know the solution since the answers were
already given
3. M K 2 m N o P 2 m B C D E F G H 2 kN 2 KN 5 kN 3 kN 16 m, 8 @ 2 m Determine the force in members DE, OE, LE and LK. (ANS: DE = 7.38kN (T), OE = 3.36kN (T), LE = ON, LK = 9.75kN (C))
Question 2 (30P): Determine the moment contribution in the direction AC of the force P=15kN that is applied in the direction GB. 6 m 8 in B 4 m F
i need solution for 3 practice prolem
Practice Problem 10 Practice Problem 10 FBD Bucket FBD Joint A 0.25 n isn Find forces in AB, AC and AD. Take the weight to be 1200 lb acting at point G. FBD AB FAc-2512.2 lb FAB-3076.8 lb FAD-3431.7lb FBD AC+Bucket 0238 isn Practice Problem 12 Practice Problem 13 Find the support reactions. Find force P for equilibrium. Take the weight of the block to be 20 lb. 30 kN E,-SKN B, 15kN...
Problem 4 EM2 Find zero force members Determine the force in members KJ, CJ, and CD using method of sections and state if the members are in tension or compression. Then use the previous result to find the force in member JE using the method of joints. 30 kN 20 KN 15 kN 15 kN 10 kN 5 kN LKL HG B FI 3 @ 1 m - 3 m 6@ 3 m = 18 m Problem 4 EM2 Find...
Problem 3 Find the axial force in member CD, CJ and IJ using the method of sections. 2 kN 2 kN 2 kN 2 kN 2 kN 4 m
Write a matrix equation TM + F = 0, where T is the
matrix of direction cosines,
M are the unknown member and reaction forces and F is the vector of
known external forces applied to the truss.
The matrix equation will be used in matlab, I can input it
myself but I am having issues forming that actual correct
matricies.
2. Determine the force in each member of the Warren truss and state if the members are in tension...
find the distribution factor of the beam between Hinge
and Fix-End Support
A. 2/3
B. 3/5
C. 1/2
D. 3/8
90 kN/m 165 KN 120 KN.m 3m 1m 2m А в 1mA 2m с D E F
