(17%) Problem 6: A resistor of resistance R-70 ? is connected in series with...
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance.
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)Immediately after the switch is closed, what is the voltage
across the resistor?Immediately after the switch is closed, what is the direction of
the current in the circuit?
S A45-mi deal inductor is connected in series with a 6- resistor through an ideal 15-V...

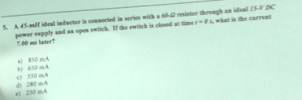

S A45-mi deal inductor is connected in series with a 6- resistor through an ideal 15-V DC power supply and an open switch. If the switch is closed at time s what is the creat 7.00 ms later < 350mA 650 MA c) SSOMA d) 280 mA
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as show...
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as shown below 1 50 kΩ 220HF A stopclock is started and after 10 seconds the switch S is closed Ammeter readings are noted at regular intervals until a time of 80s is shown on the stopclock. The graph below shows how the current in the...
A resistor R = 10 Ω and an inductor L = 764 mH are connected to...
A resistor R = 10 Ω and an inductor L = 764 mH are connected to a power supply as shown below. A short time after the switch is closed, the current in the circuit has reached a steady value, and the energy stored in the inductor is 0.10 J. Calculate the emf of the power supply, in V, to the nearest V.
A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an...
A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an open switch.A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an open switch. Part A What is the current in the circuit 0.110 ms after the switch is closed? unit (mA) Part B How much energy is stored in the inductor at this time? unit(micro J)
A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance
A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance, a resistor of resistance R= 14.5 kΩ, and a battery which provides a potential difference of VB = 160 V.Part (a) Immediately after the switch is closed, what is the voltage drop Vc, in volt across the capacitor?Part (b) Immediately after the switch is closed, what is the voltage drop VR, in volt: across the resistor?Part (c) Immediately after...
An inductor and a resistor are connected in series. When connected to a 60-Hz, 90-V (rms)...
An inductor and a resistor are connected in series. When connected to a 60-Hz, 90-V (rms) source, the voltage drop across the resistor is found to be 46 V (rms) and the power delivered to the circuit is 12 W. (a) Find the value of the resistance. Ω (b) Find the value of the inductance. H
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series,...
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series, and across the combination is connected to a 500V, 60 Hz supply. Calculate (a) the current flowing, (b) the phase difference between the supply voltage and current, (c) the voltage across the coil and the capacitor. 6. An 300-uF capacitor is connected in series with 3.25-MQ resistance across a 300-V supply. The switch is closed. Calculate a) Time constant of the circuit b) Initial...
A resistor with R = 350 Ω and an inductor are connected in series across an...
A resistor with R = 350 Ω and an inductor are connected in series across an ac source that has voltage amplitude 500 V . The rate at which electrical energy is dissipated in the resistor is 306 W (a) What is the impedance Z of the circuit? (b) What is the amplitude of the voltage across the inductor? (c) What is the power factor?
An ideal inductor of inductance 7.7 mH is connected in parallel with a resistor of resistance...
An ideal inductor of inductance 7.7 mH is connected in parallel with a resistor of resistance 141 Ω. This parallel combination is then connected in series with a second ideal inductor of inductance 4.5 mH. The sinusoidal voltage source for the circuit is 102 V, 71.6 Hz. Sketch the circuit and find the magnitude of the current, I, flowing through the resistor.
S A45-mi deal inductor is connected in series with a 6- resistor through an ideal 15-V DC power supply and an open switch. If the switch is closed at time s what is the creat 7.00 ms later < 350mA 650 MA c) SSOMA d) 280 mA
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as shown below 1 50 kΩ 220HF A stopclock is started and after 10 seconds the switch S is closed Ammeter readings are noted at regular intervals until a time of 80s is shown on the stopclock. The graph below shows how the current in the...
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series, and across the combination is connected to a 500V, 60 Hz supply. Calculate (a) the current flowing, (b) the phase difference between the supply voltage and current, (c) the voltage across the coil and the capacitor. 6. An 300-uF capacitor is connected in series with 3.25-MQ resistance across a 300-V supply. The switch is closed. Calculate a) Time constant of the circuit b) Initial...
