Homework Answers

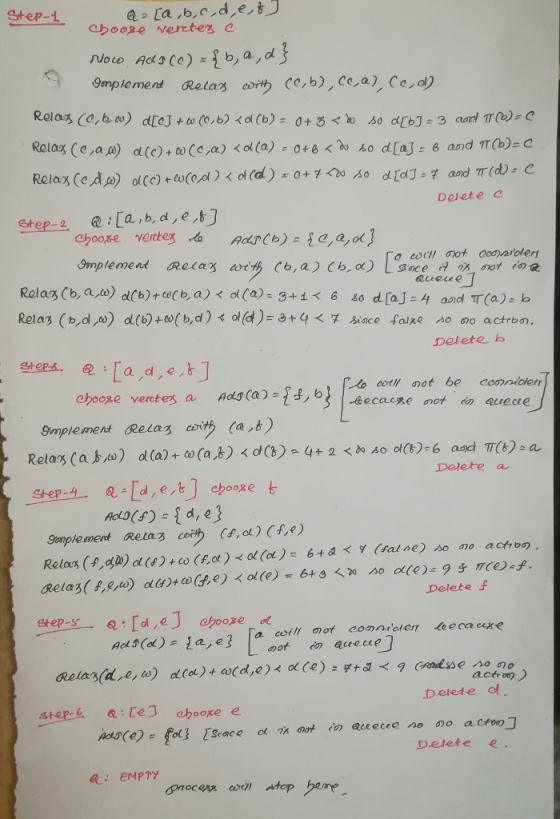

![ALGORITHM INITIALIZE SINGLE SOURCE G,s) 1. for each vertex v e VIG] 3, 4. π(v) ← Nil d[s]-0 ALGORITHM RELAXuv,w) 2. then d[v] ←d[u] + w(Hiv) ALGORITHM DIJKSTRA(G,W,S) 1. INITIALIZE-SINGLE-SOURCE(G,S) 3. Initialize Priority Queue ins/ Q ←V[G] 4, while Q φ 5. do u ← Extract. min(Q) 7. for each vertex v EAdilu] 8. do RELAX(u,v,w](http://img.homeworklib.com/questions/782d7b80-a0c8-11eb-83b0-21a4f6af2efb.png?x-oss-process=image/resize,w_560)
Add Answer to:

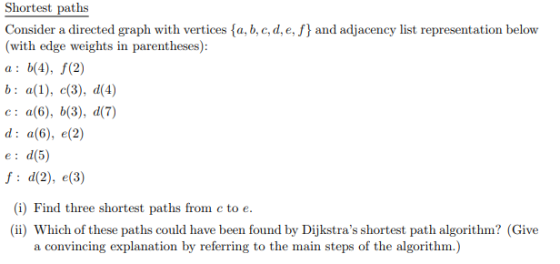

Shortest paths Consider a directed graph with vertices fa, b, c, d, e, f and adjacency...
Consider the problem of finding the shortest paths in a weighted directed graph using Dijkstra's algorithm.
Consider the problem of finding the shortest paths in a weighted directed graph using Dijkstra's algorithm. Denote the set of vertices as V, the number of vertices as |V|, the set of edges as E, and the number of edges as |E|. Answer the following questions.Below is a pseudo-code of the algorithm that computes the length c[v] of the shortest path from the start node s to each node v. Answer code to fill in the blank _______ .
a. (15 marks) i (7 marks) Consider the weighted directed graph below. Carry out the steps...
a. (15 marks) i (7 marks) Consider the weighted directed graph below. Carry out the steps of Dijkstra's shortest path algorithm as covered in lectures, starting at vertex S. Consequently give the shortest path from S to vertex T and its length 6 A 2 3 4 S T F ii (2 marks) For a graph G = (V, E), what is the worst-case time complexity of the version of Dijkstra's shortest path algorithm examined in lectures? (Your answer should...
Question 1 (1.5 marks) Consider the subnet of the following figure. Shortest Path routing is used, and the weights on each edge is shown. Compute the shortest path from E to D using Dijkstra's al...
Question 1 (1.5 marks) Consider the subnet of the following figure. Shortest Path routing is used, and the weights on each edge is shown. Compute the shortest path from E to D using Dijkstra's algorithm. Show your steps and describe your figures briefly. 4
Question 1 (1.5 marks) Consider the subnet of the following figure. Shortest Path routing is used, and the weights on each edge is shown. Compute the shortest path from E to D using Dijkstra's algorithm. Show...
2. (a) (2 points - Completeness) Dijkstra's Walk-through Dijkstra's algorithm to compute the shortest paths from...
2. (a) (2 points - Completeness) Dijkstra's Walk-through Dijkstra's algorithm to compute the shortest paths from A to every other node in the given graph Show your steps in the table below. Do this by crossing out old values and writing in new ones as the algorithm proceeds 25 9 7 (D-G) 19 14 (B-E) 4 (A-C) 2 2 (G-H) Vertex Visited Cost Previous (b) (6 points-Correctness) All Vertices, in Order Visited: Visited-= Found the Shortest Path to) (c) (2...
The below question refers to shortest paths trees in weighted, directed graphs. Read the following carefully....
The below question refers to shortest paths trees in weighted, directed graphs. Read the following carefully. Assume that No two edges have the same weight There are no cycles of net negative weight. There are no self-edges (edges leading from a vertex to itself). There are V vertices and E edges. 1. Assume that in addition to the conditions specified at the beginning, graphs are dense. If a graph contains V vertices and E edges, what is the greatest number...
Algorithm Question 5. Below is a graph with edge lengths. Apply Dijkstra's algorithm to find the shortest paths, starting at vertex A, to all other vertices. Write down the sequence in which the...
Algorithm Question
5. Below is a graph with edge lengths. Apply Dijkstra's algorithm to find the shortest paths, starting at vertex A, to all other vertices. Write down the sequence in which the edges are chosen, breaking ties by using vertices at the same length in alphabetic orde. 3 Ga 2
5. Below is a graph with edge lengths. Apply Dijkstra's algorithm to find the shortest paths, starting at vertex A, to all other vertices. Write down the sequence in...
5. Here are the vertices and edges of directed graph G: V= {2.6.c.de.f} E= {ab, ac,...
5. Here are the vertices and edges of directed graph G: V= {2.6.c.de.f} E= {ab, ac, af ca. bc. be.bf. cd, ce, de, df). Weights: w(ab) = 2 w(ac) = 5, w(af) = 10, w(ca) = 2. w(be) = 2. w(be) = 10, w(bf) = 11. w(cd)= 9. w(ce) = 7. w(de) = 2. w(df) = 2. a. Draw the Graph. This is a directed, weighted graph so you need to include arrows and weights. You can insert a pic...
For the directed weighted graph given below find shortest distances and shortest paths from A to...
For the directed weighted graph given below find shortest
distances and shortest paths from A to all other vertices. Use the
Dijkstra algorithm. Show the status of the array of distances after
each iteration of the while loop.
2-1 C ) 泊 H e- 90油 2 2 22 (4-21由121回 G
Let G = (V, E) be a directed acyclic graph with n vertices and m edges....
Let G = (V, E) be a directed acyclic graph with n vertices and m edges. Give an O(n + m) time algorithm that determines if G contains a directed path that touches every vertex in G exactly once. The graph G is given by its adjacency list representation.
1. In the following graph, suppose that the vertices A, B, C, D, E, and F represent towns, and th...
question 1 and 2 please, thank
you.
1. In the following graph, suppose that the vertices A, B, C, D, E, and F represent towns, and the edges between those vertices represent roads. And suppose that you want to start traveling from town A, pass through each town exactly once, and then end at town F. List all the different paths that you could take Hin: For instance, one of the paths is A, B, C, E, D, F. (These...
a. (15 marks) i (7 marks) Consider the weighted directed graph below. Carry out the steps of Dijkstra's shortest path algorithm as covered in lectures, starting at vertex S. Consequently give the shortest path from S to vertex T and its length 6 A 2 3 4 S T F ii (2 marks) For a graph G = (V, E), what is the worst-case time complexity of the version of Dijkstra's shortest path algorithm examined in lectures? (Your answer should...
Question 1 (1.5 marks) Consider the subnet of the following figure. Shortest Path routing is used, and the weights on each edge is shown. Compute the shortest path from E to D using Dijkstra's algorithm. Show your steps and describe your figures briefly. 4
Question 1 (1.5 marks) Consider the subnet of the following figure. Shortest Path routing is used, and the weights on each edge is shown. Compute the shortest path from E to D using Dijkstra's algorithm. Show...
2. (a) (2 points - Completeness) Dijkstra's Walk-through Dijkstra's algorithm to compute the shortest paths from A to every other node in the given graph Show your steps in the table below. Do this by crossing out old values and writing in new ones as the algorithm proceeds 25 9 7 (D-G) 19 14 (B-E) 4 (A-C) 2 2 (G-H) Vertex Visited Cost Previous (b) (6 points-Correctness) All Vertices, in Order Visited: Visited-= Found the Shortest Path to) (c) (2...
Algorithm Question
5. Below is a graph with edge lengths. Apply Dijkstra's algorithm to find the shortest paths, starting at vertex A, to all other vertices. Write down the sequence in which the edges are chosen, breaking ties by using vertices at the same length in alphabetic orde. 3 Ga 2
5. Below is a graph with edge lengths. Apply Dijkstra's algorithm to find the shortest paths, starting at vertex A, to all other vertices. Write down the sequence in...
5. Here are the vertices and edges of directed graph G: V= {2.6.c.de.f} E= {ab, ac, af ca. bc. be.bf. cd, ce, de, df). Weights: w(ab) = 2 w(ac) = 5, w(af) = 10, w(ca) = 2. w(be) = 2. w(be) = 10, w(bf) = 11. w(cd)= 9. w(ce) = 7. w(de) = 2. w(df) = 2. a. Draw the Graph. This is a directed, weighted graph so you need to include arrows and weights. You can insert a pic...
For the directed weighted graph given below find shortest
distances and shortest paths from A to all other vertices. Use the
Dijkstra algorithm. Show the status of the array of distances after
each iteration of the while loop.
2-1 C ) 泊 H e- 90油 2 2 22 (4-21由121回 G
question 1 and 2 please, thank
you.
1. In the following graph, suppose that the vertices A, B, C, D, E, and F represent towns, and the edges between those vertices represent roads. And suppose that you want to start traveling from town A, pass through each town exactly once, and then end at town F. List all the different paths that you could take Hin: For instance, one of the paths is A, B, C, E, D, F. (These...
