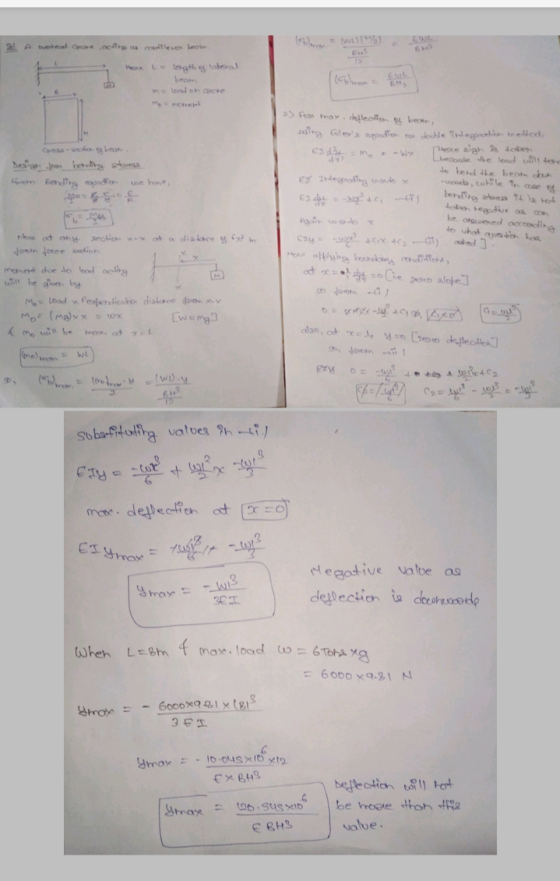

Dear student,please note
that the question was answered correctly,in case of any query
kindly comment,i will be happy to help you

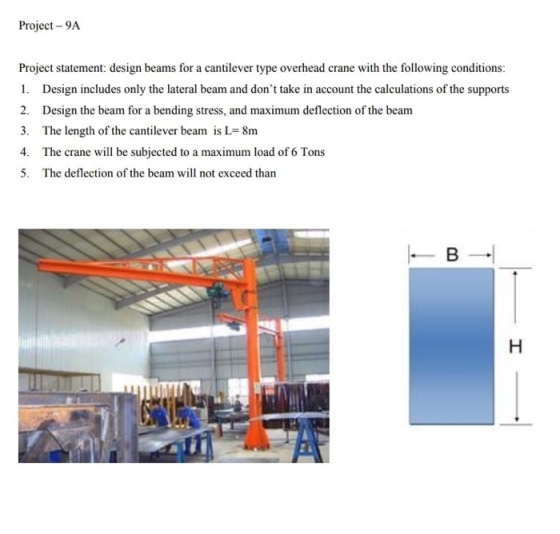

Project - 9A Project statement: design beams for a cantilever type overhead crane with the following...
1. (19 pts) The cantilever beam is subjected to a distributed load w (unit N/m) as shown in the figure. (a) True or false: If the beam is slender, i.e., length, L >> thickness, t, it is reasonable to neglect the shear strain energy, Us, compared with bending energy, UN. ) (b) What are the reaction forces at supports A and B? (c) What is the moment as a function of location along the beam AB? (d) Use energy method...
Mechanics of Materials :
Beams: 4b The cantilever beam shown below, of length L and elasticity modulus E, is subjected to load W (weights) at its free end. A dial indicator (considered weightless) and other measurements concluded that the radius of curvature at distance s from the fixed end is p. Considering that the cross section of the beam is square of side b, find, in terms of E, b, L, s, p (a) the weight W; (b) the maximum...
Question 2 Parta: A cantilever AB of length 800mm is made of steel and has a square cross section with sides of length c. The cantilever is fixed at B and carries a concentrated load of 5kN at A. Calculate the minimum length of side (c) necessary to limit the maximum deflection to 10mm. [E = 200GN/m²]. Determine also the slope in degrees at A. [6] Fig 2a N.B. The weight of the beam to be neglected. Fig 2b1 Part...
Design the cantilever beam below to take the maximum load. Calculate the load in KN to 2 decimal places, if the allowable bending stress is allow = 162 MPa and the allowable shear stress is Tallow = 95 MPa. Also I = 11.918 x 10-6 m4 and the y_bar = 0.04875 m from the top of the t-beam. 150 mm 15 mm T150 mm Hi 15 mm P P 2 m 2 m
The term I/crefers to: O Design Modulus O Centered Moment of Inertia O Section Modulus O Modulus of Inertia Question 54 Normally beams that are short and carry large loads, especially those made of wood, are first designed to resist shear and then later checked against the allowable-bending-stress requirements. O True O False Question 55 For a relatively long beam, after designing for bending stress, one must check: That the beam doesn't weigh too much That the beam doesn't buckle...
DE = 29
Question 4: Indeterminate Beam Design and Deflection A 2014-T6 aluminium cantilever beam is rigidly fixed to a wall and supported at the free end with a roller support, shown below. The beam is loaded with a distributed load, W, of 10kN/m and a point load, P of 55kN. Both the distributed load and the point load act in the direction shown in the image below. Note, the parameter DE is related to your student number as described...
Strength of Materials IV
9.2-5 The defiuction curve for a cantilever beam AB (see fgure) is given b 120LEI Describe the load acting on the beam. 2 .3-6 Calculate the maximum deflection dma of a uniformly loaded simple beam if the span length L 5 2.0 m, the intensity of the uniform load g 5 2.0 kN/m, and the maximum bending stress s 5 60 MPa. rn X The cross section of the beam is square, and the material is...
2OMNI'm 12 Om >x Given a rectangular cantilever steel beam with height h = 250 cm and width b = 60 cm subjected to the triangularly distributed load shown: a. Sketch the beam shear and moment resultant loads as a function of x between 0 and L. b. Find the resultant loads (M, and V) at sections A and D. c. Determine the ratio of maximum transverse shear stress to maximum bending stress at both A and D. d. Calculate...
Problem: A 7 m wide concrete bridge deck (with a span of 9.1 m) is supported by two identical simply supported lightly welded I-beams. The 350 mm thick concrete deck acts as a continuous lateral restraint along the whole length of the beams. The bridge is subjected to a uniformly distributed live load (Q) of 10 kPa. The dead load consists of the self- weight of the I-beams and the concrete deck. If the yield stress of the beams fy...
Problem#2: (20 pts) A cantilever beam undergoes following fatigue load conditions: a fully reversed first cycle with maximum and minimum bending stress at 47 and 47 kpsi respectively for 5000 cycles; a fully reversed second cycle with maximum and minimum bending stress at 40 and -40 kpsi respectively for 65000 cycles; a fully reversed third cycle with maximum and minimum bending stress at 33 and -33 kpsi. How many cycles of operation can be expected at this stress level? For...
