Homework Answers

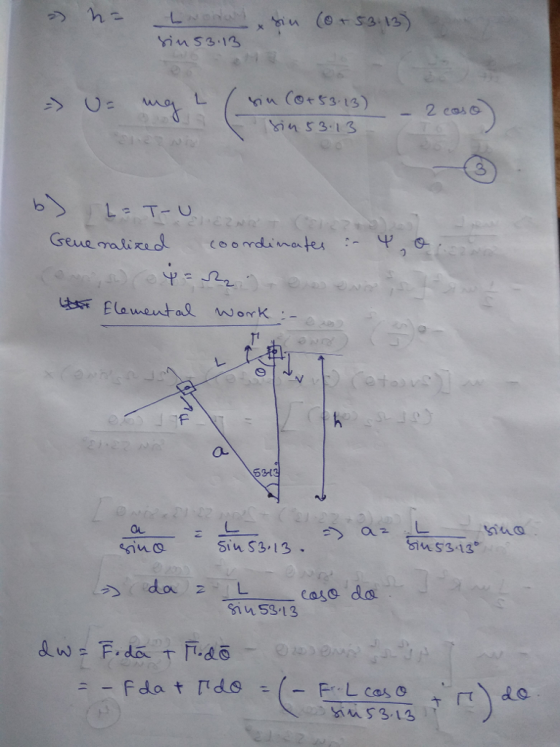

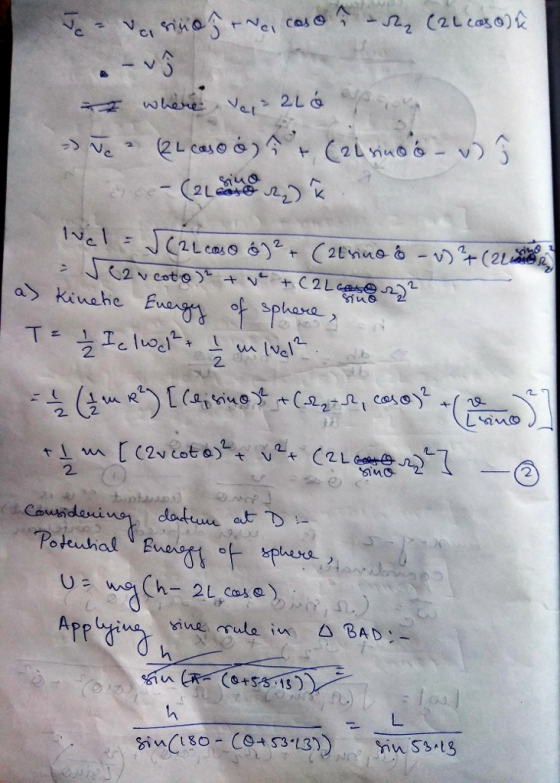

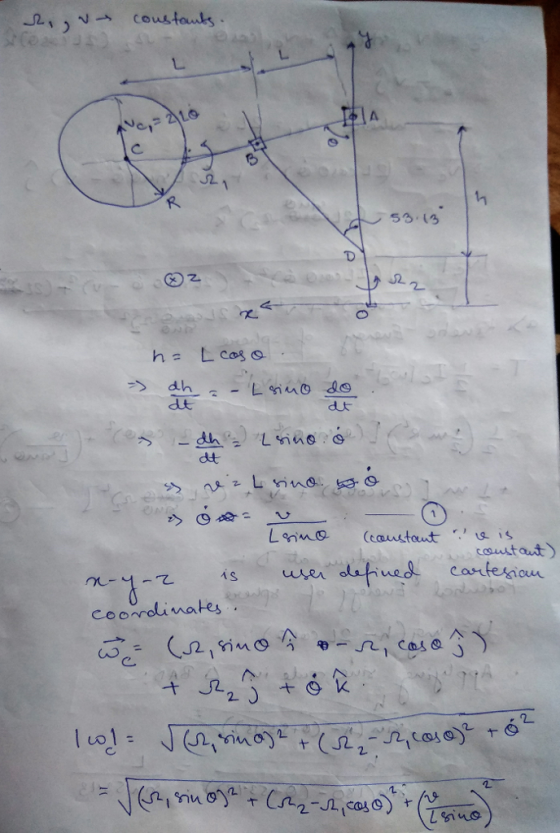

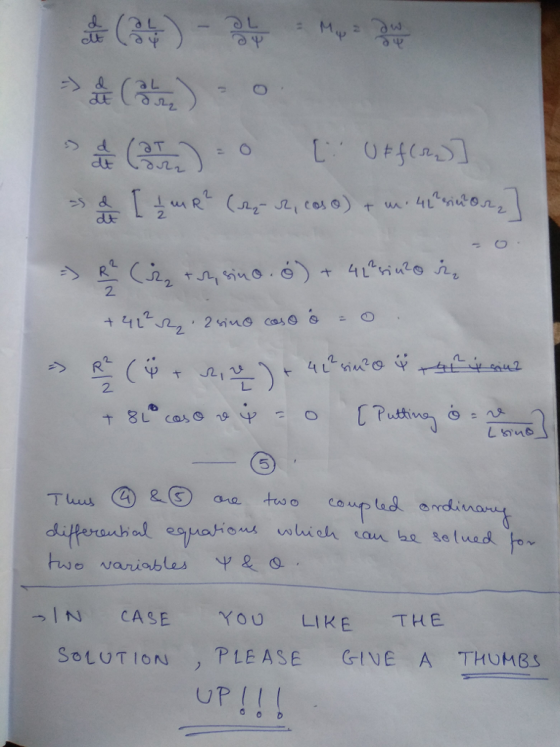

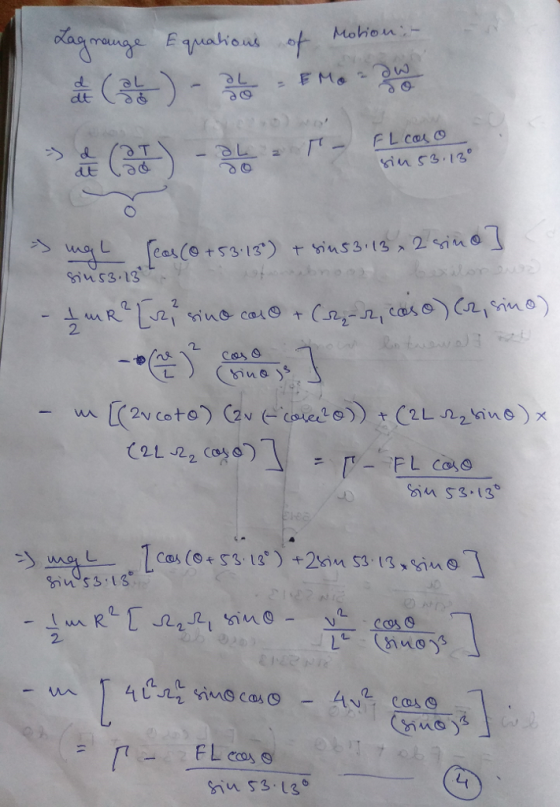

NOTE - ONLY DERIVATION OF
EQUATIONS IS ASKED, SO SOLUTION OF THE EQUATIONS NOT DONE. TO SOLVE
COUPLED ORDINARY DIFFERENTIAL EQUATIONS IS A STANDARD ENGINEERING
MATHEMATICS PROBLEM AVAILABLE IN ANY STANDARD TEXTBOOK, OR ELSE
SOLUTION CAN BE DONE BY SOFTWARES LIKE MATLAB. GENERALLY TO SOLVE
THESE GOVERNING EQUATIONS OF MOTION I USE 4TH ORDER RUNGE KUTTA
METHOD AVAILABLE AS ode45() FUNCTION IN MATLAB.
Add Answer to:

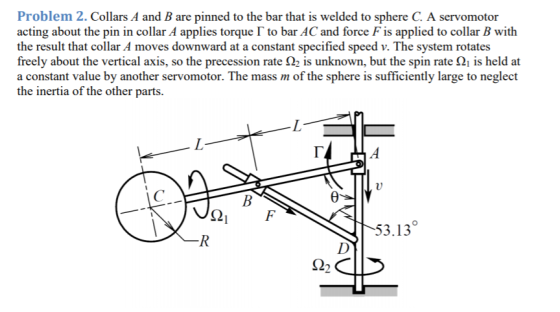

Problem 2. Collars A and B are pinned to the bar that is welded to sphere...
