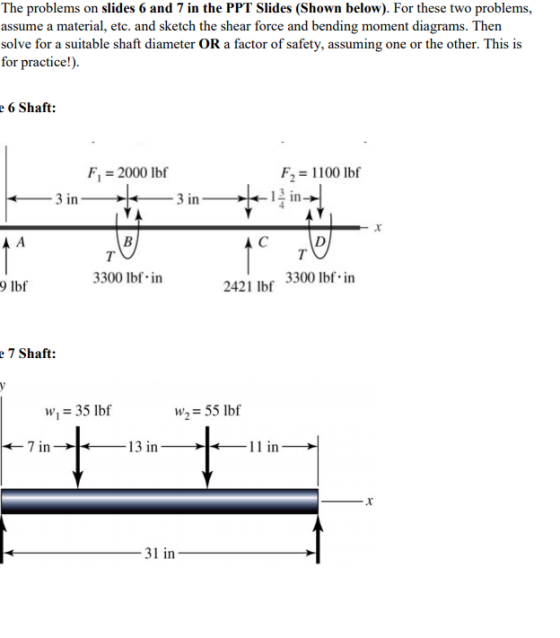

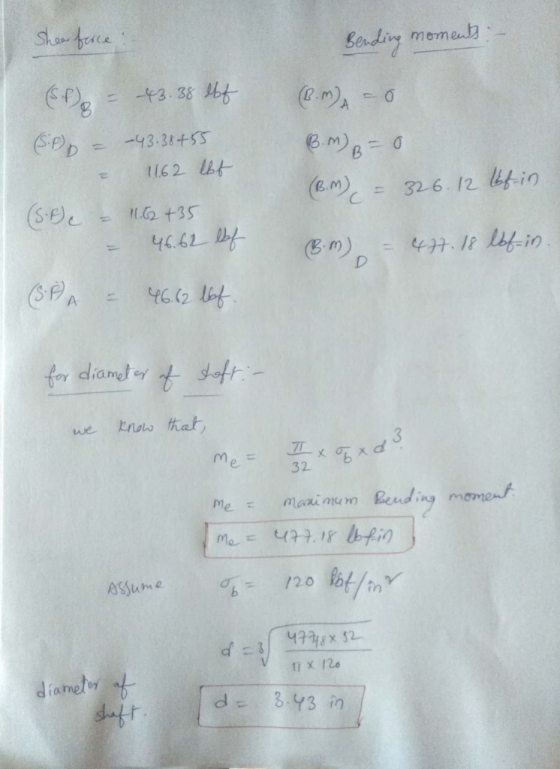

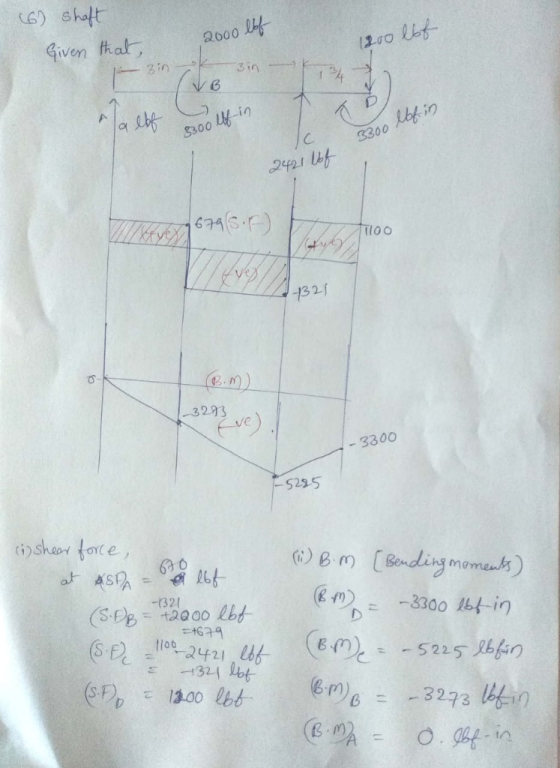

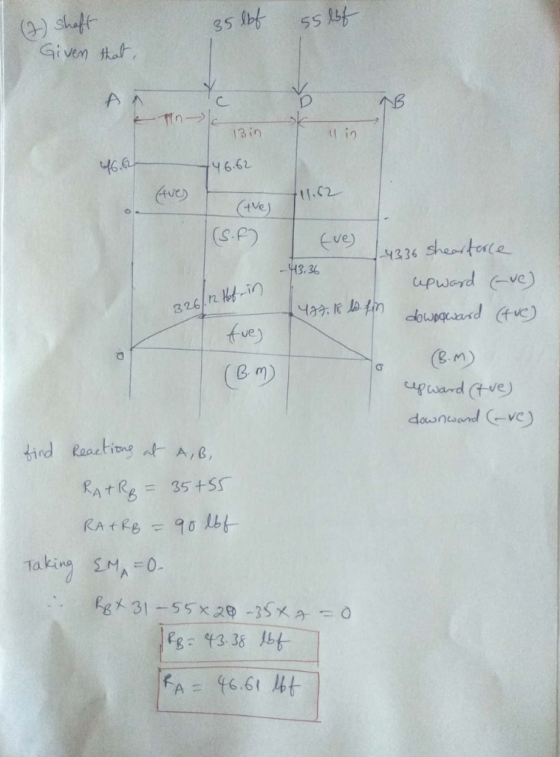

The problems on slides 6 and 7 in the PPT Slides (Shown below). For these two...
6 dia 300 Ibf 50 lbf T. . 1 dia 8 dia A countershaft carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tension shown. The power is transmitted through the shaft and delivered to the belt on pulley B. Assume the belt tension on the loose side at B is 15% of the tension on the tight side. 3. (5) Determine the tensions in the belt...
Consider the simplified transmision sample problem shown in Figure 1 below. In this figure, mating gears were shown to only exert tangential forces on each other. In reality, mating spur gear teeth will exert both tangential forces and radial forces2 due to the involute profile shape of the teeth (see Chapter 15, Figure 15.7). Let the diameters of gears B and D be 4.25 in while the diameters of gears A and C be 2.25 in. All other dimensions and...
I. The countershaft shown in the Fig Q1 has two spur gears mounted on it with teeth cut wi a 20 pressure angle. The shaft (grooved) is to be made of cold-drawn AISI 1040 steel havin Sut 779 MPa and S,-593 MPa, an elongation of 19% and HB-262. You are asked to size the shaft for safe operation according to DE-Elliptic criterion by using a factor of safety of 2.5 and a reliability of 99 percent. The stress-concentration factors for...
post
only Group#7
Problem 5 (6 marks) For the beam and loading shown, a) Draw the shear and bending-moment diagrams. b) Determine the maximum absolute value of the shear and bending moment. c) Determine the minimum required depth h of the beam. Knowing that the material used has an ultimate normal and shear stresses, use the given factor of safety in each loading case in the following table. P A LLL Dimensions, material properties and load values are presented in...
.Below shalt has two rotating commponents as shown. Solve tor Fa force frst Then resolve the load components into y and z components 400 m 25° Gear A. 600-mm dia Gear R, 300-mm dia The details of the stepped shaft is shown below. All of the dimensions in above and below figures are in mm. in x direction between two figures to match locations. Perform a fatigue analysis by assuming that the shaft is made of 1050 CD steel Sut-690...
A transfer shaft with two spur gears shown below: Input Gear 1 Output Gear Torque Bearing 1 Gear 1 Gear 2 Bearing 2 B OTO 4" 4" 4" 4 . . Weight Ibf Teeth number Pressure angle Po (diametric pitch) teeth/in Gear A 50 20° 6 Gear C 2 25 20° 6 Deep groove ball bearings at B and D. Pitch diameter of the gear is equal to the teeth number divided by diametric pitch. Shaft speed = 3000 rpm....
