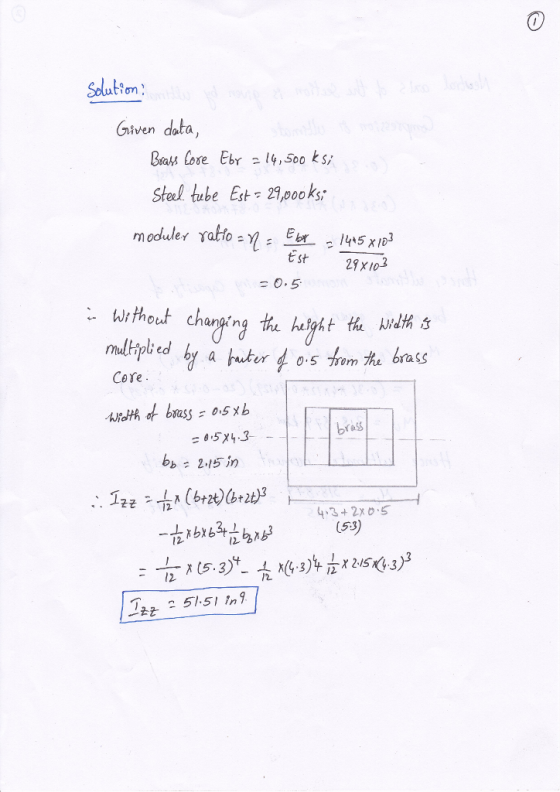

A beam is made by bonding a brass core (Ebr = 14,500 ksi) to a steel tube (Est = 29,000 ksi) and is subjected to a bending moment as shown. For this composite beam, check all the statements below that are true.
| At the interface between the steel and the brass the strain in the steel will be higher than the strain in the brass. |
| At the interface between the steel and the brass the strain in the steel will be lower than the strain in the brass. |
| At the interface between the steel and the brass the strain in the steel will be the same as the strain in the brass. |
| At the interface between the steel and the brass the stress in the steel will be higher than the stress in the brass. |
| At the interface between the steel and the brass the stress in the steel will be lower than the stress in the brass. |
| At the interface between the steel and the brass the stress in the steel will be the same as the stress in the brass. |
| The transformed moment of inertia for the beam will be higher if steel is used as the reference material than if brass is used as the reference material. |
| The transformed moment of inertia for the beam will be lower if steel is used as the reference material than if brass is used as the reference material. |
| The transformed moment of inertia for the beam will be the same regardless of which material is used as the reference material. |
| The centroid location will be higher (closer to the top) if steel is used as the reference material than if brass is used as the reference material. |
| The centroid location will be lower (closer to the bottom) if steel is used as the reference material than if brass is used as the reference material. |
| The centroid location will be the same regardless of which material is used as the reference material. |
Homework Answers
