09.1 A uniform solid cylinder of mass Mand radius R is initially at rest on a fixed ramp inclined at an angle of θ with respect to the horizontal, as shown. The coefficent of static friction is us 0.40. What is the maximum angle θ such that the cylinder rolls without slipping down the incline?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

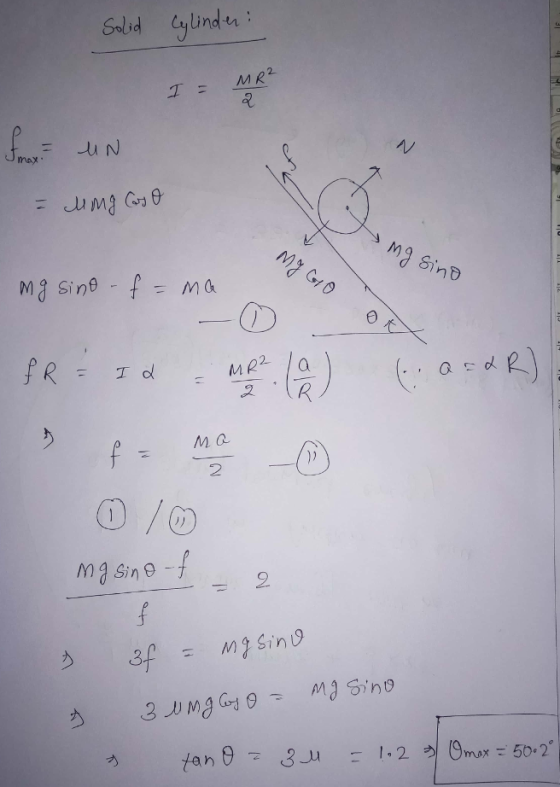

Solid lindn M R Ma Sind Ma Sint 2

0 0
