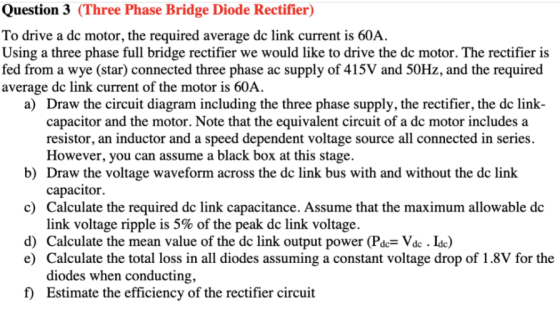

To drive a dc motor, the required average dc link current is 60.

Question

Question

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

Analyze the separately-excited DC motor drive with the regenerative chopper, assume that the drive is operating...

Analyze the separately-excited DC motor drive with the regenerative chopper, assume that the drive is operating in Continuous-Conduction Mode (CCM) and speed is constant. (a) Draw the circuit diagram. (b) Draw the waveforms of the gate pulses for the switch Q, and ??, ??, ??, and ??. (c) Find the armature current (analytical relationship with the system parameters) as a function of time for ??? and ???? time intervals. (d) Find parametric relations of ??,??? and ??,???. (e) Find the...
Position control for direct current (DC) motor
Consider a DC motor with 0.1 mH of inductance. 1 A DC current is flowing in...

Consider a DC motor with 0.1 mH of inductance. 1 A DC current is flowing in the motor, what is the voltage drop across this inductance (neglecting resistance for this question)? Subsequently, this 1 A current is switched off and drops linearly from 1 A to 0 within 1μs. How much voltage is created by shutting off this current? Explain how the electronics is protected from this current.

electric machinery chapter dc motor qus= 200V DC series motor has Ra=0.5Ω and Rf=0.2Ω. the current...

electric machinery chapter dc motor qus= 200V DC series motor has Ra=0.5Ω and Rf=0.2Ω. the current input is 20 A, and the speed is 1000 r/min. if a resistor 0.2 Ω is joined in parallel with the filed winding, find the new speed of the motor for an input current of 20 A. Assume linear magnetization curve
Analyze a DC series phase-controlled motor drive with single-phase, full wave, controlled AC/DC rectifier in continuous...

Analyze a DC series phase-controlled motor drive with single-phase, full wave, controlled AC/DC rectifier in continuous conduction mode (CCM) of operation. Draw the motor voltage and current waveforms and write the equations (instantaneous and averaged). Please note that the waveforms and equations have been presented in class for a DC separately-excited motor drive.
An armature-controlled dc motor operates at steady state, with an armature drive voltage va = 10 ...

An armature-controlled dc motor operates at steady state, with an armature drive voltage va = 10 V. The motor runs at 600 rpm, and the armature current is found to be ia = 0.2 A. The armature resistance is Ra = 15 Ω. Determine: (a) The torque constant km of the motor (b) Electrical damping constant be (c) The efficiency under the given operating conditions, if the mechanical damping constant is bm = 8.25 × 10−5 N ⋅ m/rad/s (d)...

A power electronic converter used to drive a separately-excited DC motor for application in Sohar, Oman...

A power electronic converter used to drive a separately-excited DC motor for application in Sohar, Oman as shown in Figure Q2. Let R = 0.25 , K = 0.62 V/rpm.Wb, (flux per pole) = 175 mWb. The used converter is a single-phase, controlled full-wave bridge rectifier. Assume the firing angle is 45°, and the average speed is 1300 rpm and torque constant K is 9.55 of K. Assuming the motor current is continuous; calculate the armature current drawn by the...
A DC Shunt motor takes a current of 50A on a 440V supply runs at a...

A DC Shunt motor takes a current of 50A on a 440V supply runs at a speed of 1000rpm, with an armature resistance of 0.5Ω and a filed resistance of 100Ω.A Chopper is used to control the speed of motor in the range of 400-800rpm having constant torque. The on period of chopper is 2ms, with field supply voltage from 440V.Determine range of Frequencies of Chopper.
DC shunt motor

A DC Motor 24 of 25 > Part A A shunt-wound DC motor with the field...

A DC Motor 24 of 25 > Part A A shunt-wound DC motor with the field coils and rotor connected in parallel (see the figure) (Figure 1)operates from a 135 V DC power line. The resistance of the field windings, Rf, is 203 2. The resistance of the rotor, R is 5.60 ? , when the motor is running, the rotor develops an emf E. The motor draws a current of 4.90 A from the line. Friction losses amount to...
