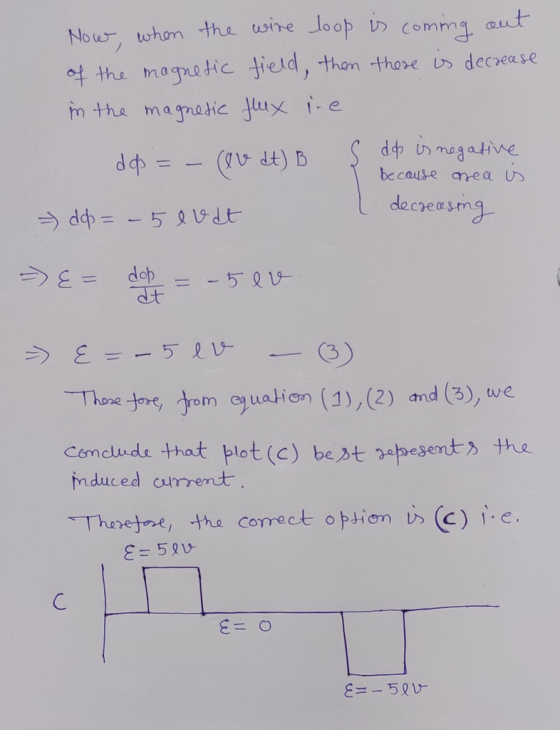

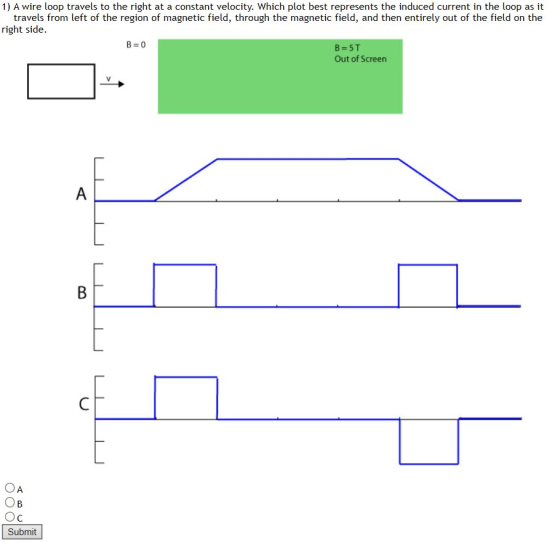

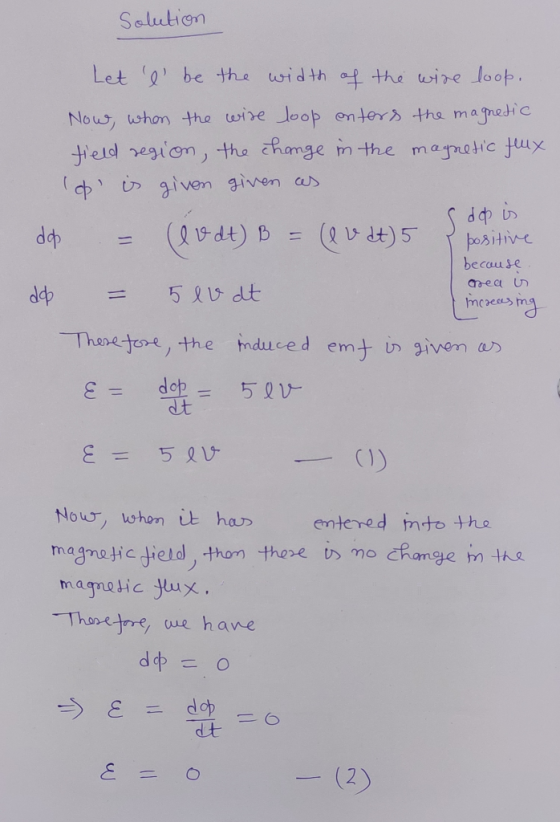

A wire loop travels to the right at a constant velocity. Which plot best represents the induced current in the loop as it travels from left of the region of magnetic field, through the magnetic field, and then entirely out of the field on the right side?
A
B
C
Homework Answers
Add Answer to:
A wire loop travels to
the right at a constant velocity. Which plot best represents the...
PROBLEM 2 - 10 points A square loop travels at a constant velocity of 10 cm/s...
PROBLEM 2 - 10 points A square loop travels at a constant velocity of 10 cm/s to the right through a region of magnetic field. The magnetic field is confined to the outlined rectangular region outlined. The magnetic field is directed into the page in the left half of this region, and out of the page in the right half. The small squares on the diagram measure 10 cm x 10 cm, and the loop is shown at time t=0....
In the figure, a region with constant (externally produced) magnetic field is shown. A wire loop...
In the figure, a region with
constant (externally produced) magnetic field is shown. A wire loop
moves into the magnetic field.
//img.homeworklib.com/questions/b9da6130-ca78-11eb-8c71-8b0cea09251c.gif
Which of the following is correct? While the loop is moving into
the region with the constant external magnetic field, the magnetic
field inside the loop due to the induced current in the loop points
...
No magnetic field is induced by the movement of the loop.
... down
... left
... into the page
... right
......
A square loop of wire with side length 10 cm is moving to the right with...
A square loop of wire with side length 10 cm is moving to the right with constant speed of 16 m/s. The loop has total resistance of .8 ohms. It begins in a region with no magnetic field, then enters a region of magnetic field (wider than 10 cm) with a strength of .5 T pointing out of the page. a) while entering the field what is the direction of the induced current as seen from above the plane of...
A square loop of wire with a small resistance is moved with constant speed from a...
A square loop of wire with a small resistance is moved with
constant speed from a field free region into a region of uniform B
field (B is constant in time) and then back into a field free
region to the left. The self inductance of the loop is
negligible.
When entering the field the coil experiences a magnetic force to
the left.
When leaving the field the coil experiences a magnetic force to the
right.
Upon entering the field,...
a. Consider a circular conducting loop that is moved at a constant speed from right to...
a. Consider a circular conducting loop that is moved at a constant speed from right to left through a rectangular region with uniform magnetic field B, as shown in the figure. As the loop moves from position 3 to position 4, a clockwise current is induced in the loop. b. a counterclockwise current is x x induced in the loop. an into the page current is 5 1 induced in the loop. d. an out of the page current is...
Consider a circular conducting loop that is moved at a constant speed from right to left...
Consider a circular conducting loop that is moved at a constant speed from right to left through a rectangular region with uniform magnetic field B, as shown in the figure. As the loop moves from position 1 to position 2, a. a clockwise current is induced in the loop. b. a counterclockwise current is induced in the loop. * * * * * c. an into the page current is 5 3 1 induced in the loop. d. an out...
Question 23 (1 point) A rectangular loop of wire is moving inside of a constant magnetic...
Question 23 (1 point) A rectangular loop of wire is moving inside of a constant magnetic field that is pointed into the screen. What is the direction of the induced current in the loop of wire? What is the direction of the induced magnetic field? Moving loop The current is in the counter-clockwise direction and the induced field is into the screen. The current is in the clockwise direction and the induced field is into the screen. The current is...
For example, consider the situation shown on the right in which a rectangular loop is 8...
For example, consider the situation shown on the right in which a rectangular loop is 8 inside a region of space with a magnetic field that points into the page. The magnetic field also increases. A. Borig: What is the direction of the original magnetic field? Into the page B. PB: Is ºb decreasing, increasing or staying the same? Increases because the magnitude of the magnetic field increases C. Bind: What is the direction of the induced magnetic field? Since...
The figure shows a stationary conducting loop adjacent to a horizontal current-carrying wire. For which of...
The figure shows a stationary conducting loop adjacent to a horizontal current-carrying wire. For which of the following conditions will a counter- clockwise induced current circulate in the stationary loop? Stationary conducting loop O Counter- clockwise induced current - Current-carrying wire The current in the horizontal wire flows to the right and its value is increasing. The current in the horizontal wire flows to the right and its value is constant. The current in the horizontal wire flows to the...
PROBLEM 2 - 10 points A square loop travels at a constant velocity of 10 cm/s to the right through a region of magnetic field. The magnetic field is confined to the outlined rectangular region outlined. The magnetic field is directed into the page in the left half of this region, and out of the page in the right half. The small squares on the diagram measure 10 cm x 10 cm, and the loop is shown at time t=0....
In the figure, a region with
constant (externally produced) magnetic field is shown. A wire loop
moves into the magnetic field.
//img.homeworklib.com/questions/b9da6130-ca78-11eb-8c71-8b0cea09251c.gif
Which of the following is correct? While the loop is moving into
the region with the constant external magnetic field, the magnetic
field inside the loop due to the induced current in the loop points
...
No magnetic field is induced by the movement of the loop.
... down
... left
... into the page
... right
......
A square loop of wire with a small resistance is moved with
constant speed from a field free region into a region of uniform B
field (B is constant in time) and then back into a field free
region to the left. The self inductance of the loop is
negligible.
When entering the field the coil experiences a magnetic force to
the left.
When leaving the field the coil experiences a magnetic force to the
right.
Upon entering the field,...
a. Consider a circular conducting loop that is moved at a constant speed from right to left through a rectangular region with uniform magnetic field B, as shown in the figure. As the loop moves from position 3 to position 4, a clockwise current is induced in the loop. b. a counterclockwise current is x x induced in the loop. an into the page current is 5 1 induced in the loop. d. an out of the page current is...
Consider a circular conducting loop that is moved at a constant speed from right to left through a rectangular region with uniform magnetic field B, as shown in the figure. As the loop moves from position 1 to position 2, a. a clockwise current is induced in the loop. b. a counterclockwise current is induced in the loop. * * * * * c. an into the page current is 5 3 1 induced in the loop. d. an out...
Question 23 (1 point) A rectangular loop of wire is moving inside of a constant magnetic field that is pointed into the screen. What is the direction of the induced current in the loop of wire? What is the direction of the induced magnetic field? Moving loop The current is in the counter-clockwise direction and the induced field is into the screen. The current is in the clockwise direction and the induced field is into the screen. The current is...
For example, consider the situation shown on the right in which a rectangular loop is 8 inside a region of space with a magnetic field that points into the page. The magnetic field also increases. A. Borig: What is the direction of the original magnetic field? Into the page B. PB: Is ºb decreasing, increasing or staying the same? Increases because the magnitude of the magnetic field increases C. Bind: What is the direction of the induced magnetic field? Since...
The figure shows a stationary conducting loop adjacent to a horizontal current-carrying wire. For which of the following conditions will a counter- clockwise induced current circulate in the stationary loop? Stationary conducting loop O Counter- clockwise induced current - Current-carrying wire The current in the horizontal wire flows to the right and its value is increasing. The current in the horizontal wire flows to the right and its value is constant. The current in the horizontal wire flows to the...
