A 3.5 kg block is attached to a spring with stiffness of 500 N/m. While at...

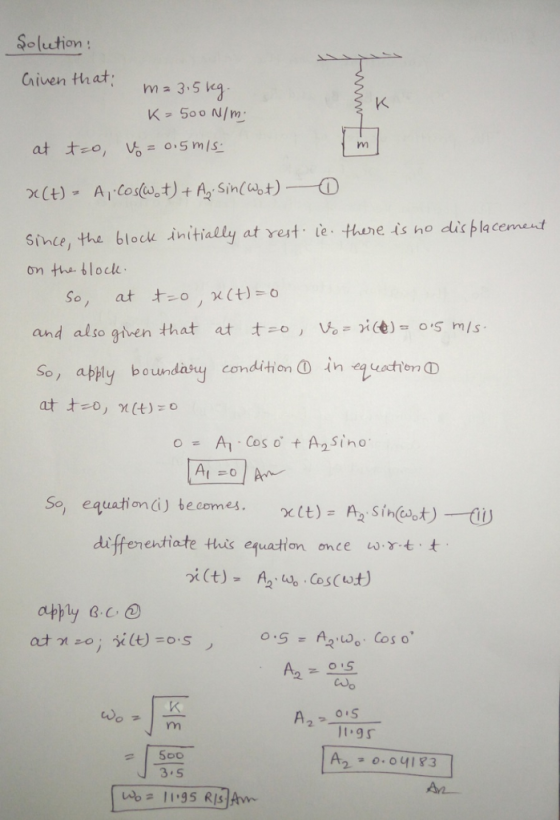

A 3.5 kg block is attached to a spring with stiffness of 500 N/m. While at rest in the equilibrium position, the block is given suddenly given an initial velocity of 0.5 m/s.
Assume the displacement as a function of time is given by x(t) = A1cos(w0t) + A2sin(w0t).
Solve for A1, A2, w0 , and compute the total energy of system.
Homework Answers
Add Answer to:
A 3.5 kg block is attached to a spring with stiffness of 500
N/m. While at...
A block of mass m = 3.5 kg is attached to a spring with spring constant...
A block of mass m = 3.5 kg is attached to a spring with spring constant k = 990 N/m. It is initially at rest on an inclined plane that is at an angle of θ = 22° with respect to the horizontal, and the coefficient of kinetic friction between the block and the plane is μk = 0.12. In the initial position, where the spring is compressed by a distance of d = 0.19 m, the mass is at...
A block of mass m = 3.5 kg is attached to a spring with spring constant k = 780 N/m
A block of mass m = 3.5 kg is attached to a spring with spring constant k = 780 N/m. It is initially at rest on an inclined plane that is at an angle of θ = 28° with respect to the horizontal, and the coefficient of kinetic friction between the block and the plane is μk = 0.19. In the initial position, where the spring is compressed by a distance of d = 0.19 m, the mass is at...
A block of mass m = 3.5 kg is attached to a spring with spring constant...
A block of mass m = 3.5 kg is attached to a spring with spring constant k = 520 N/m. It is initially at rest on an inclined plane that is at an angle of θ = 21° with respect to the horizontal, and the coefficient of kinetic friction between the block and the plane is μk = 0.16. In the initial position, where the spring is compressed by a distance of d = 0.14 m, the mass is at...
An object with mass 3.5 kg is attached to a spring with spring stiffness constant k...
An object with mass 3.5 kg is attached to a spring with spring stiffness constant k = 250 N/m and is executing simple harmonic motion. When the object is 0.020 m from its equilibrium position, it is moving with a speed of 0.55 m/s. (a) Calculate the amplitude of the motion. _______________________________ m (b) Calculate the maximum velocity attained by the object. [Hint: Use conservation of energy.] _______________________________ m/s
A 4-kg mass is attached to a spring with stiffness 112 N/m. The damping constant for...
A 4-kg mass is attached to a spring with stiffness 112 N/m. The damping constant for the system is 16/7 N-sec/m. If the mass is pulled 20 cm to the right of equilibrium and given an initial rightward velocity of 2 m/sec, what is the maximum displacement from equilibrium that it will attain? 1 -2/7 617 1 (2+.4/7) 67 2+ meters. The maximum displacement is e (Type an exact answer, using radicals as needed.)
A 4-kg mass is attached to...
A 1-kg mass is attached to a spring with stiffness 10 N/m. The damping constant for...
A 1-kg mass is attached to a spring with stiffness 10 N/m. The damping constant for the system is 7 N-sec/m. If the mass is pulled^ m to the left of equilibrium and given an initial rightward velocity of 4 m/sec a) Find and solve the equation of motion governing the system b) State the type of motion for the system? c) When will the mass first return to its equilibrium position?
A 3-kg mass is attached to a spring with stiffness 81 N/m. The damping constant for...
A 3-kg mass is attached to a spring with stiffness 81 N/m. The damping constant for the system is 18/3 N-sec/m. If the mass is pulled 20 cm to the right of equilibrium and given an initial rightward velocity of 3 m/sec, what is the maximum displacement from equilibrium that it will attain? The maximum displacement is meters (Type an exact answer, using radicals as needed.)
A 5-kg mass is attached to a spring with stiffness 15 N/m. The damping constant for...
A 5-kg mass is attached to a spring with stiffness 15 N/m. The damping constant for the system is 10V3 N-sec/m. If the mass is pulled 10 cm to the right of equilibrium and given an initial rightward velocity of 2 m/sec, what is the maximum displacement from equilibrium that it will attain? The maximum displacement is meters. (Type an exact answer, using radicals as needed.)
A spring of stiffness k = 500 N/m is mounted against the 13-kg block. F =...
A spring of stiffness k = 500 N/m is mounted against the 13-kg block. F = 500 N k = 500 N/m WWW Part A If the block is subjected to the force of F = 500 N, determine its velocity at s = 0.5 m. When s = 0, the block is at rest and the spring is uncompressed. The contact surface is smooth. Express your answer to three significant figures and include the appropriate units. V = Submit...
A 500-g block is attached to the free end of a spring that has a 5.0-N/m...
A 500-g block is attached to the free end of a spring that has a 5.0-N/m stiffness, while the other end is fixed. It is pulled 15 cm and released. We start recording at t=0, when it is 8.0 cm to the left of the equilibrium position and moving to the left. (a) What is the phase constant? (b) What is the position, velocity and acceleration of the block immediately after a 2.0-s interval has elapsed? (13 points)
A 4-kg mass is attached to a spring with stiffness 112 N/m. The damping constant for the system is 16/7 N-sec/m. If the mass is pulled 20 cm to the right of equilibrium and given an initial rightward velocity of 2 m/sec, what is the maximum displacement from equilibrium that it will attain? 1 -2/7 617 1 (2+.4/7) 67 2+ meters. The maximum displacement is e (Type an exact answer, using radicals as needed.)
A 4-kg mass is attached to...
A 1-kg mass is attached to a spring with stiffness 10 N/m. The damping constant for the system is 7 N-sec/m. If the mass is pulled^ m to the left of equilibrium and given an initial rightward velocity of 4 m/sec a) Find and solve the equation of motion governing the system b) State the type of motion for the system? c) When will the mass first return to its equilibrium position?
A 3-kg mass is attached to a spring with stiffness 81 N/m. The damping constant for the system is 18/3 N-sec/m. If the mass is pulled 20 cm to the right of equilibrium and given an initial rightward velocity of 3 m/sec, what is the maximum displacement from equilibrium that it will attain? The maximum displacement is meters (Type an exact answer, using radicals as needed.)
A 5-kg mass is attached to a spring with stiffness 15 N/m. The damping constant for the system is 10V3 N-sec/m. If the mass is pulled 10 cm to the right of equilibrium and given an initial rightward velocity of 2 m/sec, what is the maximum displacement from equilibrium that it will attain? The maximum displacement is meters. (Type an exact answer, using radicals as needed.)
A spring of stiffness k = 500 N/m is mounted against the 13-kg block. F = 500 N k = 500 N/m WWW Part A If the block is subjected to the force of F = 500 N, determine its velocity at s = 0.5 m. When s = 0, the block is at rest and the spring is uncompressed. The contact surface is smooth. Express your answer to three significant figures and include the appropriate units. V = Submit...
A 500-g block is attached to the free end of a spring that has a 5.0-N/m stiffness, while the other end is fixed. It is pulled 15 cm and released. We start recording at t=0, when it is 8.0 cm to the left of the equilibrium position and moving to the left. (a) What is the phase constant? (b) What is the position, velocity and acceleration of the block immediately after a 2.0-s interval has elapsed? (13 points)
