The primary coil of a transformer has N, = 310 turns, and the secondary coil has...

Question

Question

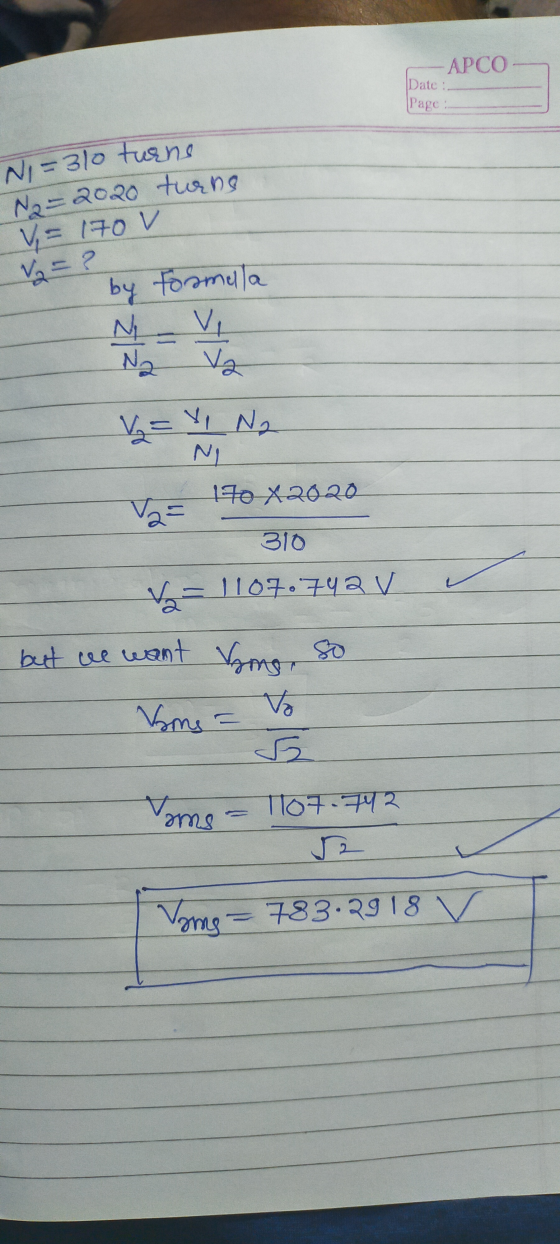

The primary coil of a transformer has N, = 310 turns, and the secondary coil has N, = 2 020 turns. If the input voltage acros

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

The primary coil of a transformer has N1 = 380 turns, and the secondary coil has...

The primary coil of a transformer has N1 = 380 turns, and the secondary coil has N2 = 2 250 turns. If the input voltage across the primary coil is Δv(t) = 170 cos ωt, where Δv is in volts and t is in seconds, what rms voltage is developed across the secondary coil? _________ V
An ideal step-down transformer has a primary coil of 400 turns and a secondary coil of...

An ideal step-down transformer has a primary coil of 400 turns and a secondary coil of 25 turns. Its primary coil is plugged into an outlet with 110 V(AC), from which it draws an rms current of 0.83 A. 1.)What is the voltage in the secondary coil? 2.)Calculate the rms current in the secondary coil. 3.)Assuming that the transformer secondary is driving a resistive load, calculate the average power dissipated in the resistor.
The primary coil of a transformer contains 50 turns.. The primary coil is connected to an...

The primary coil of a transformer contains 50 turns.. The primary coil is connected to an alternative voltage of 5.0 volts. The voltage across the secondary coil is measured 0.5 volts? How may turns does the secondary contain? If the primary current is 2.0 mA (mili-amperes,) what is the secondary current? 1 mA = 10-3 A

The primary coil of a transformer makes 240 turns, and the secondary coil of that transformer...

The primary coil of a transformer makes 240 turns, and the secondary coil of that transformer makes 80 turns. If an alternating current of 3.00 A (rms) passes through the primary coil of the transformer, what current passes through the secondary coil of that transformer? Assume the transformer is ideal.
A step-up transformer has 23 turns on the primary coil and 800 turns on the secondary...

A step-up transformer has 23 turns on the primary coil and 800 turns on the secondary coil. If this transformer is to produce an output of 5000V with a 14-mA current, what input current and voltage are needed? Input current = .49 A V = ? kV
A step-down transformer has 83 turns in its primary coil and 24 turns in its secondary...

A step-down transformer has 83 turns in its primary coil and 24 turns in its secondary coil. The primary coil is connected to standard household voltage (rms = 120.0 V, 60.0 Hz). Suppose the secondary coil is connected to a 12.0-Ω resistor. (a) What is the maximum current in the resistor? (b) What is the average power dissipated by the resistor?

A transformer has 1020 turns in the primary and 12 turns in the secondary. (a) Is...

A transformer has 1020 turns in the primary and 12 turns in the secondary. (a) Is this a step-up or step-down transformer? (b) If the primary is connected across 120 V rms, what is the open-circuit voltage across the secondary? ( ) V (c) If the primary current is 0.3 A, what is the secondary current, assuming negligible magnetization current and no power loss? ( ) A
2 0. The primary coil of a transformer has N, 4 50 x 10 turns, and...

2 0. The primary coil of a transformer has N, 4 50 x 10 turns, and its secondary has Ni 1.35 x 10 tuns. If the input voltage across the primary coil is av-(1so v) sin or, voltage is developed across the secondary coil? a. 332 v b. 454 V C. 382 V d. 726 e. None of the above A sinusoidal voltage Av (95 V) sin (100) is applied to a series Z-90 mH, C-11SpF, and R- 46 2...
If a transformer consists of 88 turns in its primary coil, and 3 turns in its...

If a transformer consists of 88 turns in its primary coil, and 3 turns in its secondary coil, what will be the output voltage (Correct to 1 decimal place) if the input voltage is 240 volts? (Assume the transformer is 100% power efficient).

A step-up transformer has 28 turns on the primary coil and 710 turns on the secondary...

A step-up transformer has 28 turns on the primary coil and 710 turns on the secondary coil. If this transformer is to produce an output of 5000 V with a 11-mA current, what input current and voltage are needed? What is Vi? Express your answer using two significant figures.
