Homework Answers
Add Answer to:

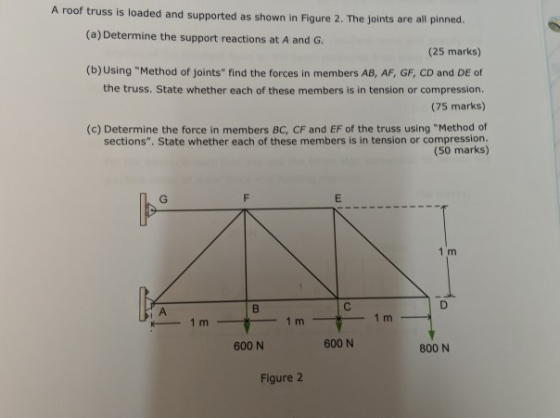

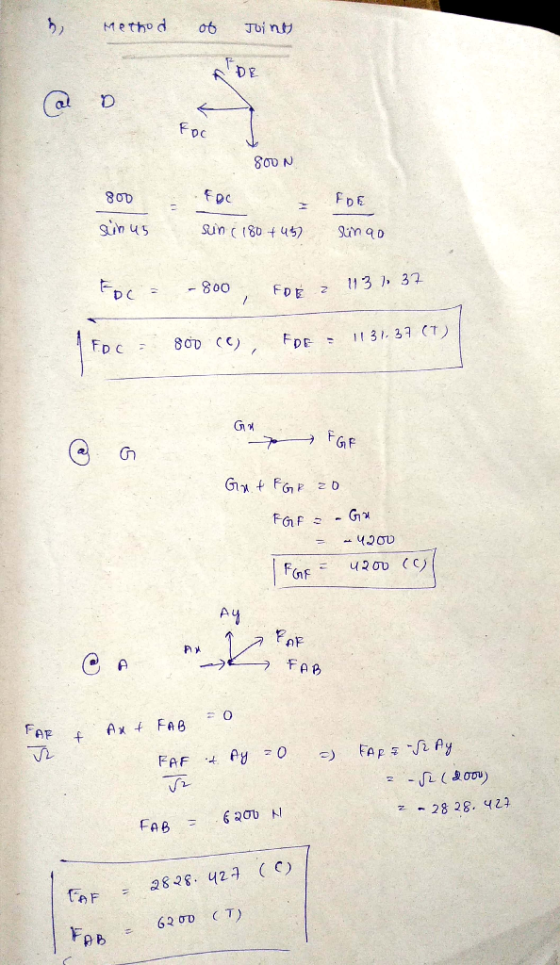

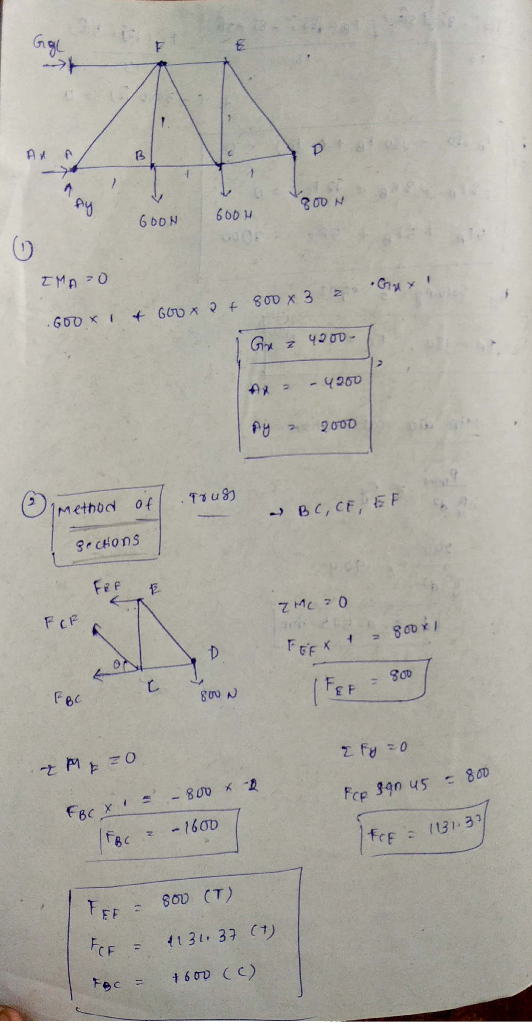

A roof truss is loaded and supported as shown in Figure 2. The joints are all...
For the roof truss shown, use method of sections to determine the forces in members BC and EF
For the roof truss shown, use method of sections to determine the forces in members BC and EF. State whether each is in compression or tension.
13kN A Using "Method of Joints”, determine the forces supported by the member AB, AC and...
13kN A Using "Method of Joints”, determine the forces supported by the member AB, AC and BC of the truss shown in the figure. State whether each member is in tension or compression. 600 600- B C 3 m
1. A Using "Method of Joints", determine the forces supported by the member AB, AC and...
1. A Using "Method of Joints", determine the forces supported by the member AB, AC and BC of the truss shown in the figure. State whether each memberis in tension or compression. P=8 KN. 60° 600 B 3 m
Practice Example 2 (MOS) A stadium roof truss is loaded as shown. Determine the force in...
Practice Example 2 (MOS) A stadium roof truss is loaded as shown. Determine the force in members AB, AG, and FG. State whether the member is in Tension or Compression 0.9 kips L.8 kips 1.8 kips 0.9 kips 9 ft -12 ft-14 ft 14 ft 315 ft
Tarnororaovore oorRo oroor wrram The below truss is pinned at C and roller supported at A....
Tarnororaovore oorRo oroor wrram The below truss is pinned at C and roller supported at A. A load of 200 N downward is applied at joint B while a 400 N right-hand load at D. The total horizontal span is 8 m of length and the vertical one is 3 m. or in compression ? Are the link members of the following truss in tension 00N 3m 400N 4m 4m A Compression Ad Lnk AB B Tension Link AD nk...
Problem 3. (65 points). For the truss shown, (a) Determine the forces in members: AB, AH,...
Problem 3. (65 points). For the truss shown, (a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. н. F 4.5 m 3 m E B DI 6 KN 2 KN 8 KN -12 m, 4 @ 3 m
Problem 3. (65 points). For the truss shown, (a) Determine the forces in members: AB, AH,...
Problem 3. (65 points). For the truss shown, (a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. H 4.5 m 3 m A E 5080 90000 D 2 KN 6 KN 8 KN 12 m, 4 @ 3 m
For the Howe roof truss shown below: (a) List any members that have zero force [2...
For the Howe roof truss shown below: (a) List any members that have zero force [2 points] (b)Using the Method of joints, determine the force in member BD and state whether it is in tension or compression, if member AB is in compression with force of 1500lb. [10 points). Note the 3-4-5 triangles. 600 lb 600 lb 600 lb D 300 lb 300 lb 6 ft B 6 ft HI Αο C E G kot- -8 ft8ft-8 ft 8 ft
Problem 3. (65 points). For the truss shown, (a) Determine the forces in members: AB, AH,...
Problem 3. (65 points). For the truss shown, (a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. G H F 1 3 m 4.5 m E 168820 1993001 B D 6 KN 2 KN 8 KN -12 m, 4 @ 3 m
Problem 1 (10 points) A truss is pin supported at A and roller supported at G The support reactions at A and G are...
Problem 1 (10 points) A truss is pin supported at A and roller supported at G The support reactions at A and G are 15 ft A, ; 4500 lb A-0 lb G, 1500 lb 3000 lb 3000Ib Determine the forces in members BC, CD and C. State whether they are in compression or tension.
Problem 1 (10 points) A truss is pin supported at A and roller supported at G The support reactions at A and G are 15...
For the roof truss shown, use method of sections to determine the forces in members BC and EF. State whether each is in compression or tension.
13kN A Using "Method of Joints”, determine the forces supported by the member AB, AC and BC of the truss shown in the figure. State whether each member is in tension or compression. 600 600- B C 3 m
1. A Using "Method of Joints", determine the forces supported by the member AB, AC and BC of the truss shown in the figure. State whether each memberis in tension or compression. P=8 KN. 60° 600 B 3 m
Practice Example 2 (MOS) A stadium roof truss is loaded as shown. Determine the force in members AB, AG, and FG. State whether the member is in Tension or Compression 0.9 kips L.8 kips 1.8 kips 0.9 kips 9 ft -12 ft-14 ft 14 ft 315 ft
Tarnororaovore oorRo oroor wrram The below truss is pinned at C and roller supported at A. A load of 200 N downward is applied at joint B while a 400 N right-hand load at D. The total horizontal span is 8 m of length and the vertical one is 3 m. or in compression ? Are the link members of the following truss in tension 00N 3m 400N 4m 4m A Compression Ad Lnk AB B Tension Link AD nk...
Problem 3. (65 points). For the truss shown, (a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. н. F 4.5 m 3 m E B DI 6 KN 2 KN 8 KN -12 m, 4 @ 3 m
Problem 3. (65 points). For the truss shown, (a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. H 4.5 m 3 m A E 5080 90000 D 2 KN 6 KN 8 KN 12 m, 4 @ 3 m
For the Howe roof truss shown below: (a) List any members that have zero force [2 points] (b)Using the Method of joints, determine the force in member BD and state whether it is in tension or compression, if member AB is in compression with force of 1500lb. [10 points). Note the 3-4-5 triangles. 600 lb 600 lb 600 lb D 300 lb 300 lb 6 ft B 6 ft HI Αο C E G kot- -8 ft8ft-8 ft 8 ft
Problem 3. (65 points). For the truss shown, (a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. G H F 1 3 m 4.5 m E 168820 1993001 B D 6 KN 2 KN 8 KN -12 m, 4 @ 3 m
Problem 1 (10 points) A truss is pin supported at A and roller supported at G The support reactions at A and G are 15 ft A, ; 4500 lb A-0 lb G, 1500 lb 3000 lb 3000Ib Determine the forces in members BC, CD and C. State whether they are in compression or tension.
Problem 1 (10 points) A truss is pin supported at A and roller supported at G The support reactions at A and G are 15...
