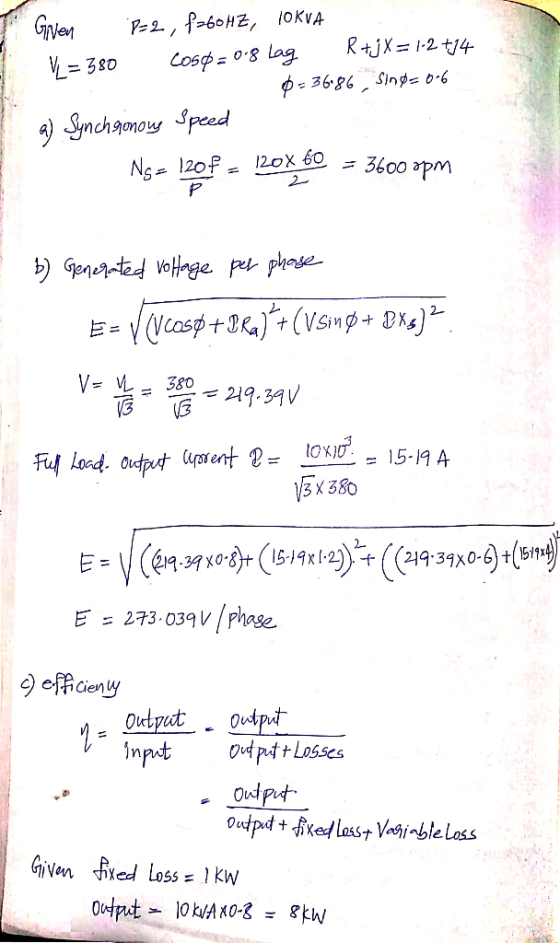

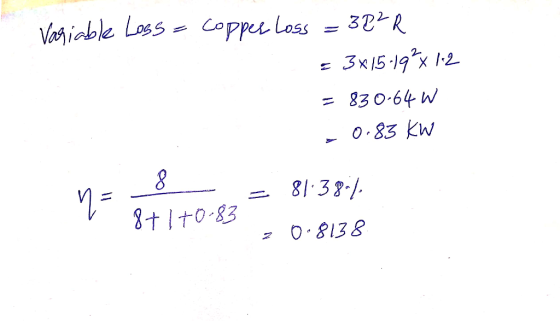

Tebuiativit is wi t hin PP- A 10-KVA, 380-V, 60-Hz, 2-pole, three-phase, Y-connected, synchronous generator delivers...
A 1500-kVA, 6.6 kV, 50 Hz, 6-pole, three-phase, star-connected synchronous generator has a resistance 0.5Q/phase and a...
A 1500-kVA, 6.6 kV, 50 Hz, 6-pole, three-phase, star-connected
synchronous generator has a resistance 0.5Q/phase and a synchronous
reactance of 5Q/phase. The generator is supplying its rated power
at its rated voltage and at a power factor lagging. The rotational
loss is 2 kW. Calculate:
(a) the power developed,
(b) the power angle,
(c) the voltage regulation, and
(d) the shaft torque.
A 1500-kVA, 6.6 kV, 50 Hz, 6-pole, three-phase, star-connected synchronous generator has a resistance 0.50/phase and a synchronous...
A 480-V, 50-Hz, Y-connected, 6-pole synchronous generator has a synchronous reactance of 1 Ohm. Its full...
A 480-V, 50-Hz, Y-connected, 6-pole synchronous generator has a synchronous reactance of 1 Ohm. Its full load armature current is 60 A at 0.8 pf lagging. Under full load conditions, the friction and windage losses are 1.5 kW, and core losses are 1 kW at 50 Hz. Ignore armature copper losses. The field has been adjusted so that the terminal voltage is 480 V at no load. a.What is the speed of rotation of this gen? b.What is the generator...
1. A three-phase, 5 kVA, 208 V, four-pole, 60 Hz, wye-connected synchronous machine has...
A three-phase, 5 kVA, 208 V, four-pole, 60 Hz, wye-connected synchronous machine has negligible stator winding resistance and a synchronous reactance of 8 Wper phase. It is operated in parallel with a three-phase, 208 V, 60 Hz power supply.Determine the excitation voltage and the power angle when the machine is delivering rated kVA at 0.8 pf lagging. Draw the phasor diagram
A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole, Y-connected synchronous generator has a...
A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole,
Y-connected synchronous generator has a synchronous reactance of
XS=0.016 Ω and an armature resistance of RA=0.016 Ω. At rated
conditions the core losses are 7 kW. Friction losses and field
winding losses are 8 kW. Suppose the machine is connected to an
infinite bus (hence the terminal voltage is fixed) and it is
running at the rated conditions.
a) What is the rotor speed in rpm?
b) Calculate the...
QUESTION 4 A three-phase Y-connected, 500 kVA, 3.2 kV, 0.85 PF-lagging, six-pole, 60 Hz synchronous generator...
QUESTION 4 A three-phase Y-connected, 500 kVA, 3.2 kV, 0.85 PF-lagging, six-pole, 60 Hz synchronous generator has a synchronous reactance of 15 ohm and an armature resistance of 0.8 ohm. What are the electrical losses in this generator at the rated conditions? Attach File Browse My Computer Browse Content Collection QUESTION 5 If phase current of a Delta-connected three-phase system is equal to 1pu, then the line current of the same system is equal to 3 pu. Click Save and...
A 2300-V 1000-kVA 0.8-PF-lagging 60-Hz two-pole Y-connected synchronous generator has X, = 1.1Q and RA 0.15Q....
A 2300-V 1000-kVA 0.8-PF-lagging 60-Hz two-pole Y-connected synchronous generator has X, = 1.1Q and RA 0.15Q. At 60 Hz, its friction and windage losses are 24 kW, and its core losses are 18 kW. The field circuit has an adjustable dc source. The OCC of this generator is shown in the following figure. (a) How much field current is required to make V, equal to 2300 V when the generator is running at no load? (b) What is the internal...
3. A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole, Y-connected synchronous generator has...
3. A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole, Y-connected synchronous generator has a synchronous reactance of Xs=0.0162 and an armature resistance of RA=0.0.1622. At rated conditions the core losses are 7 kW. Friction losses and field winding losses are 8 kW. Suppose the machine is connected to an infinite bus (hence the terminal voltage is fixed) and it is running at the rated conditions. a) What is the rotor speed in rpm? b) Calculate the phase...
A 480-V, 60-Hz, A-connected, four-pole synchronous generator has a synchronous reactance of 0.1 ohm and an...
A 480-V, 60-Hz, A-connected, four-pole synchronous generator has a synchronous reactance of 0.1 ohm and an armature resistance of 0.0 15 ohm. At full load, the machine supplies 1200 A at 0.8 PF lagging. Under full-load conditions, the friction and windage losses are 40 kW, and the core losses are 30 kW. Ignore any field circuit losses c) How much power is the generator now supplying? How much power is supplied to the generator by the prime mover? What is...
Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a...
Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a winding resistance of 0.3 Q and a synchronous reactance of 0.6 on a per phase basis. Determine its voltage regulation at full load when the power factor is (a) 75% lagging and (b) 75% leading. B) (10 marks) A 220-V, Y-connected, three-phase, synchronous motor has a synchronous reactance of 4 O/phase and negligible armature winding resistance. At a certain load the motor takes 7.5...
A 2300 V (terminal voltage), 1000 kVA, 0.8 PF lagging, 60-Hz, two pole, Y connected synchronous g...
A 2300 V (terminal voltage), 1000 kVA, 0.8 PF lagging, 60-Hz, two pole, Y connected synchronous generator has a synchronous reactance of 1.1 2 and an armature resistance of 0.15 Ω. At 60Hz, its friction and windage losses are 24 kW, and its core losses are 18 kW The field circuit has a dc voltage of 200 V, and the maximum If Ir is 10 A. The resistance of the field circuit is adjustable over the range from 20 to...
A 1500-kVA, 6.6 kV, 50 Hz, 6-pole, three-phase, star-connected
synchronous generator has a resistance 0.5Q/phase and a synchronous
reactance of 5Q/phase. The generator is supplying its rated power
at its rated voltage and at a power factor lagging. The rotational
loss is 2 kW. Calculate:
(a) the power developed,
(b) the power angle,
(c) the voltage regulation, and
(d) the shaft torque.
A 1500-kVA, 6.6 kV, 50 Hz, 6-pole, three-phase, star-connected synchronous generator has a resistance 0.50/phase and a synchronous...
A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole,
Y-connected synchronous generator has a synchronous reactance of
XS=0.016 Ω and an armature resistance of RA=0.016 Ω. At rated
conditions the core losses are 7 kW. Friction losses and field
winding losses are 8 kW. Suppose the machine is connected to an
infinite bus (hence the terminal voltage is fixed) and it is
running at the rated conditions.
a) What is the rotor speed in rpm?
b) Calculate the...
QUESTION 4 A three-phase Y-connected, 500 kVA, 3.2 kV, 0.85 PF-lagging, six-pole, 60 Hz synchronous generator has a synchronous reactance of 15 ohm and an armature resistance of 0.8 ohm. What are the electrical losses in this generator at the rated conditions? Attach File Browse My Computer Browse Content Collection QUESTION 5 If phase current of a Delta-connected three-phase system is equal to 1pu, then the line current of the same system is equal to 3 pu. Click Save and...
A 2300-V 1000-kVA 0.8-PF-lagging 60-Hz two-pole Y-connected synchronous generator has X, = 1.1Q and RA 0.15Q. At 60 Hz, its friction and windage losses are 24 kW, and its core losses are 18 kW. The field circuit has an adjustable dc source. The OCC of this generator is shown in the following figure. (a) How much field current is required to make V, equal to 2300 V when the generator is running at no load? (b) What is the internal...
3. A 480 V, 60 Hz, 470 kVA, 0.85 PF lagging, 2-pole, Y-connected synchronous generator has a synchronous reactance of Xs=0.0162 and an armature resistance of RA=0.0.1622. At rated conditions the core losses are 7 kW. Friction losses and field winding losses are 8 kW. Suppose the machine is connected to an infinite bus (hence the terminal voltage is fixed) and it is running at the rated conditions. a) What is the rotor speed in rpm? b) Calculate the phase...
Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a winding resistance of 0.3 Q and a synchronous reactance of 0.6 on a per phase basis. Determine its voltage regulation at full load when the power factor is (a) 75% lagging and (b) 75% leading. B) (10 marks) A 220-V, Y-connected, three-phase, synchronous motor has a synchronous reactance of 4 O/phase and negligible armature winding resistance. At a certain load the motor takes 7.5...
A 2300 V (terminal voltage), 1000 kVA, 0.8 PF lagging, 60-Hz, two pole, Y connected synchronous generator has a synchronous reactance of 1.1 2 and an armature resistance of 0.15 Ω. At 60Hz, its friction and windage losses are 24 kW, and its core losses are 18 kW The field circuit has a dc voltage of 200 V, and the maximum If Ir is 10 A. The resistance of the field circuit is adjustable over the range from 20 to...
