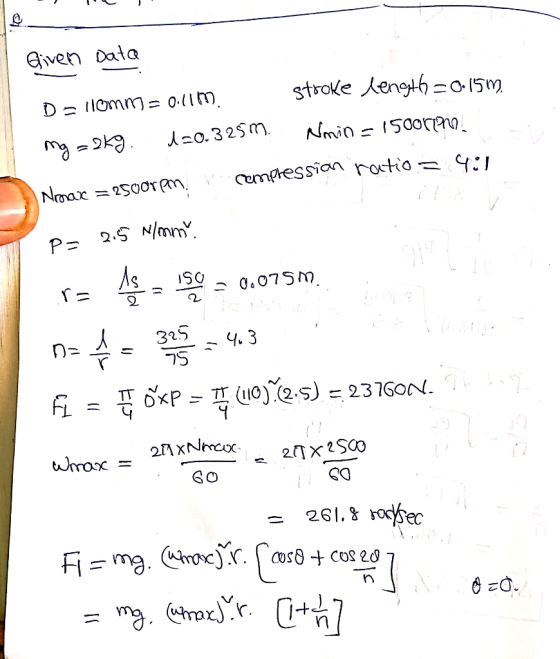

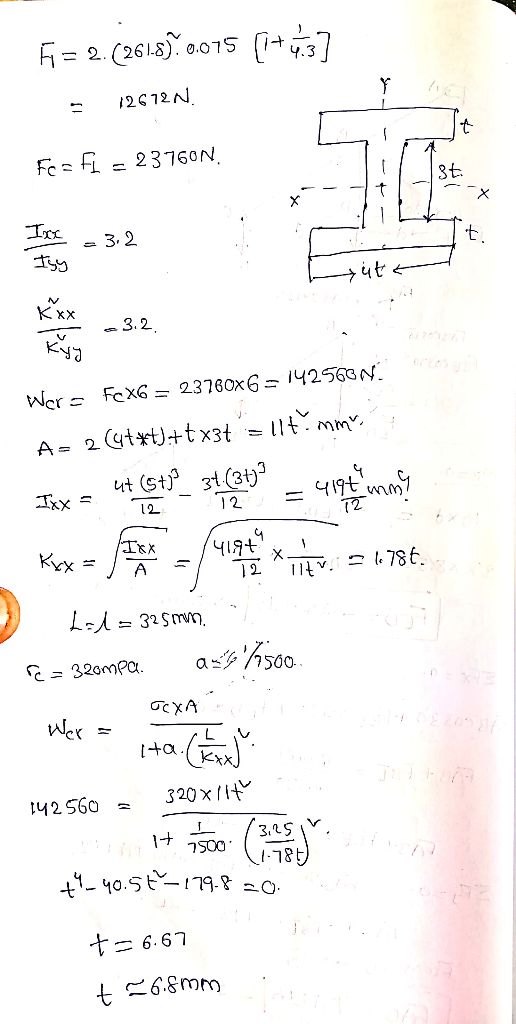

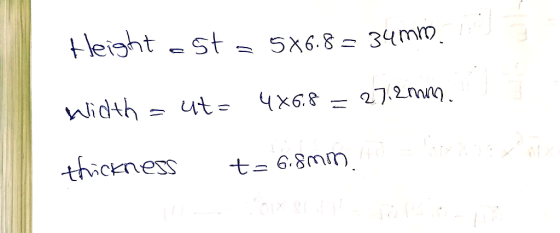

![F1 = 2. (2615)) 0.075 (+43] = 12612N. Fo=F1 = 23760N. X to = 3.2 Isy but N kxx 3.2 ұча Wers FcX6 = 23760x6 = 142566N. A= 2 (4](http://img.homeworklib.com/questions/027e23e0-a664-11eb-8307-67e120989e4c.png?x-oss-process=image/resize,w_560)
Add Answer to:
please show all work and explain
4. Determine the dimensions of an I-section connecting rod for...
Radius of gyration in question 4 is 0,28 m and not 0,28mm. Please change. Thank you. Question 4 A horizontal sin...
Radius of gyration in question 4 is 0,28 m and not
0,28mm. Please change.
Thank you.
Question 4 A horizontal single-cylinder engine has a cylinder diameter of 110 mm, a stroke of 130 mm and connecting rod length of 260 mm. The mass of the piston is 0,7 kg and that of connecting rod is 1,8 kg. The centre of mass of the connecting rod is 100 mm from the big end bearing centre and th e effect of the...
L50 DKI & DK2: 9.00 pm 10.30 pm QUESTION 2 (15 marks) (a) A twin cylinder...
L50 DKI & DK2: 9.00 pm 10.30 pm QUESTION 2 (15 marks) (a) A twin cylinder V-engine has cylinders set at 120°, with both piston connected to a single crank as shown in Figure Q2(a). The stroke is 140 mm and the connecting rods are 210 mm long. The reciprocating mass per cylinder is 1.2 kg. Determine the maximum primary and secondary forces acting on the frame of the engine when running at 2,400 rpm. (b) Figure Q2(b) shows 4...
4. An engine connecting rod is 25 cm between the centre-lines of the big and small...
4. An engine connecting rod is 25 cm between the centre-lines of the big and small ends. The big end bearing is 5 cm diameter and the small end is 2.5 cm diameter. When the connecting rod is suspended on a horizontal knife edge about its big end and vibrated as a compound pendulum, the measured frequency of vibration is 1.145 Hz. When the experiment is repeated with the rod suspended from the small end, the measured frequency of vibration...
Please show ALL work and answer ALL parts In the engine system shown -250 mm and b 100 mm. The connecting rod BD is assumed to be a 1.2-kg uniform slender rod and is attached to the 1.8-kg piston...
Please show ALL work and answer ALL parts
In the engine system shown -250 mm and b 100 mm. The connecting rod BD is assumed to be a 1.2-kg uniform slender rod and is attached to the 1.8-kg piston P. The AB rod is rotating counterclockwise at a constant angular velocity of 15 rads/s. Determine all the reactionary forces as a function of θ and plot these forces as a function of θ. At what angle(s) is the reaction force...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
Please answer ALL parts of these questions and show all work. I will rate my answer....
Please answer ALL parts of these questions and show all work. I
will rate my answer. Thank you!
.
E. Questions Consider the cylinder case. The uncertainty in any one measurement of the density can be determined in the following way. (a) Take the instrumental limit of error associated with the Vernier calipers used to be one-half the least count or smallest measureable increment 8lVernier = 0.001 cm Assume the uncertainty in all linear measurements to be the same and...
find v belt drive design power select belt type determine shive size (belt speed 4000 ft/min)...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
Radius of gyration in question 4 is 0,28 m and not
0,28mm. Please change.
Thank you.
Question 4 A horizontal single-cylinder engine has a cylinder diameter of 110 mm, a stroke of 130 mm and connecting rod length of 260 mm. The mass of the piston is 0,7 kg and that of connecting rod is 1,8 kg. The centre of mass of the connecting rod is 100 mm from the big end bearing centre and th e effect of the...
L50 DKI & DK2: 9.00 pm 10.30 pm QUESTION 2 (15 marks) (a) A twin cylinder V-engine has cylinders set at 120°, with both piston connected to a single crank as shown in Figure Q2(a). The stroke is 140 mm and the connecting rods are 210 mm long. The reciprocating mass per cylinder is 1.2 kg. Determine the maximum primary and secondary forces acting on the frame of the engine when running at 2,400 rpm. (b) Figure Q2(b) shows 4...
Please show ALL work and answer ALL parts
In the engine system shown -250 mm and b 100 mm. The connecting rod BD is assumed to be a 1.2-kg uniform slender rod and is attached to the 1.8-kg piston P. The AB rod is rotating counterclockwise at a constant angular velocity of 15 rads/s. Determine all the reactionary forces as a function of θ and plot these forces as a function of θ. At what angle(s) is the reaction force...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
Please answer ALL parts of these questions and show all work. I
will rate my answer. Thank you!
.
E. Questions Consider the cylinder case. The uncertainty in any one measurement of the density can be determined in the following way. (a) Take the instrumental limit of error associated with the Vernier calipers used to be one-half the least count or smallest measureable increment 8lVernier = 0.001 cm Assume the uncertainty in all linear measurements to be the same and...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
