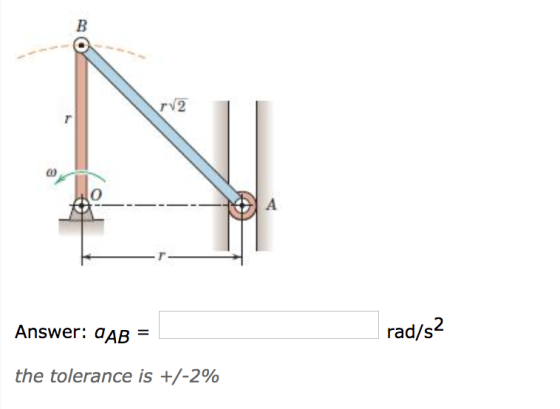

Determine the angular acceleration αAB
(positive if counterclockwise, negative if clockwise) of
AB for the position shown if link OB has a
constant angular velocity ω = 1.87 rad/s and the distance
r = 335 mm.
Homework Answers
Add Answer to:
Determine the angular acceleration αAB
(positive if counterclockwise, negative if clockwise) of
AB for the position...
Determine the angular acceleration AB (positive if counterclockwise, negative if clockwise) of AB for the position...
Determine the angular acceleration AB (positive if counterclockwise, negative if clockwise) of AB for the position shown if link OB has a constant angular velocity w = 1.22 rad/s and the distance r = 355 mm. TV2 Answer: OAB = rad/s2 the tolerance is +/-2%
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration...
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration oAB of link AB for the position shown. The angular acceleration is positive if counterclockwise, negative if clockwise 65 mm 13.6 radls 0 AB 135 mm Answers: OAB rad/s2
Member AB has the angular velocity ωAB = 2.5 rad/s and angular acceleration αAB = 5...
Member AB has the angular velocity ωAB = 2.5 rad/s and angular
acceleration αAB = 5 rad/s2 . (Figure
1.Determine the angular velocity of member CB
measured counterclockwise.
2.Determine the angular acceleration of member
CB measured counterclockwise.
3.Determine the angular velocity of member DC
measured counterclockwise.
4.Determine the angular acceleration of member
DC measured counterclockwise.
0 D 450 mm 200 mm 100 mm 60° AB AB
Link AB has the angular velocity ωAB = 3.5 rad/s and angular acceleration αAB = 6 rad/s2 .
Link AB has the angular velocity ωAB = 3.5 rad/s and angular acceleration αAB = 6 rad/s2 . (Figure 1) Part A Determine the angular acceleration of link CD measured counterclockwise.
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 30 rad/s...
If link AB of the four-bar linkage has a constant
counterclockwise angular velocity of 30 rad/s during an interval
which includes the instant represented, determine the angular
acceleration of AO (positive if counterclockwise, negative
if clockwise) and the acceleration of point D.
80 mm L - - OAB 195 mm 130 130 mm 1 mm 1 Answers: DAO = rad/s2 ad = 0 + j) m/s2
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 50 rad/s...
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 50 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 85 mm 210 mm OA 135 mm 135 mm Answers: rad/s? OAOT0.00 ap 738 948 ) m/s2
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 53 rad/s...
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 53 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 90 mm B WAB 190 mm 140 mm 140 mm Answers: CAO = Jrad/s2 ap li) m/s2
Chapter 5, Problem 5/120 If link AB of the four-bar linkage has a constant counterclockwise angular...
Chapter 5, Problem 5/120 If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 39 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 75 mm 150 mm 0 115 115 Answers: GAO = rad/s2 aD = i) m/s2
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular...
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular acceleration Coc = 2.8 rad/s2. The bar OC is a slotted member which accommodates the pin A attached to the sector. Determine the angular velocity w and the angular acceleration a of the sector. The angular velocity and the angular acceleration are positive if counterclockwise, negative if clockwise. 31 B 305 mm DOC 11 doc OA = 380 mm Answers: rad/s rad/s2 Bar OC...
Link OA is given a constant clockwise angular velocity ω = 1.6 rad/sec as indicated. Determine...
Link OA is given a constant clockwise angular velocity
ω = 1.6 rad/sec as indicated. Determine the acceleration
a of point C for the position θ = 37° if
b = 6 in. The acceleration is positive if to the right,
negative if to the left.
Link OA is given a constant clockwise angular velocity w = 1.6 rad/sec as indicated. Determine the acceleration a of point C for the position @ = 37° if b = 6 in. The...
Determine the angular acceleration AB (positive if counterclockwise, negative if clockwise) of AB for the position shown if link OB has a constant angular velocity w = 1.22 rad/s and the distance r = 355 mm. TV2 Answer: OAB = rad/s2 the tolerance is +/-2%
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration oAB of link AB for the position shown. The angular acceleration is positive if counterclockwise, negative if clockwise 65 mm 13.6 radls 0 AB 135 mm Answers: OAB rad/s2
Member AB has the angular velocity ωAB = 2.5 rad/s and angular
acceleration αAB = 5 rad/s2 . (Figure
1.Determine the angular velocity of member CB
measured counterclockwise.
2.Determine the angular acceleration of member
CB measured counterclockwise.
3.Determine the angular velocity of member DC
measured counterclockwise.
4.Determine the angular acceleration of member
DC measured counterclockwise.
0 D 450 mm 200 mm 100 mm 60° AB AB
If link AB of the four-bar linkage has a constant
counterclockwise angular velocity of 30 rad/s during an interval
which includes the instant represented, determine the angular
acceleration of AO (positive if counterclockwise, negative
if clockwise) and the acceleration of point D.
80 mm L - - OAB 195 mm 130 130 mm 1 mm 1 Answers: DAO = rad/s2 ad = 0 + j) m/s2
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 50 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 85 mm 210 mm OA 135 mm 135 mm Answers: rad/s? OAOT0.00 ap 738 948 ) m/s2
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 53 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 90 mm B WAB 190 mm 140 mm 140 mm Answers: CAO = Jrad/s2 ap li) m/s2
Chapter 5, Problem 5/120 If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 39 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 75 mm 150 mm 0 115 115 Answers: GAO = rad/s2 aD = i) m/s2
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular acceleration Coc = 2.8 rad/s2. The bar OC is a slotted member which accommodates the pin A attached to the sector. Determine the angular velocity w and the angular acceleration a of the sector. The angular velocity and the angular acceleration are positive if counterclockwise, negative if clockwise. 31 B 305 mm DOC 11 doc OA = 380 mm Answers: rad/s rad/s2 Bar OC...
Link OA is given a constant clockwise angular velocity
ω = 1.6 rad/sec as indicated. Determine the acceleration
a of point C for the position θ = 37° if
b = 6 in. The acceleration is positive if to the right,
negative if to the left.
Link OA is given a constant clockwise angular velocity w = 1.6 rad/sec as indicated. Determine the acceleration a of point C for the position @ = 37° if b = 6 in. The...
