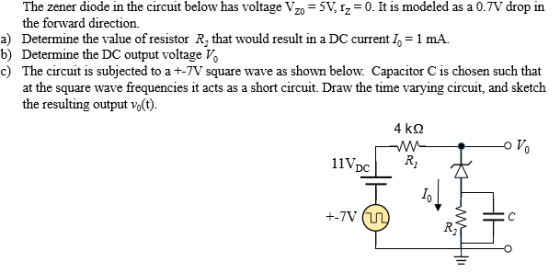

The zener diode in the circuit below has voltage Vzo = 5V, Iz = 0. It...

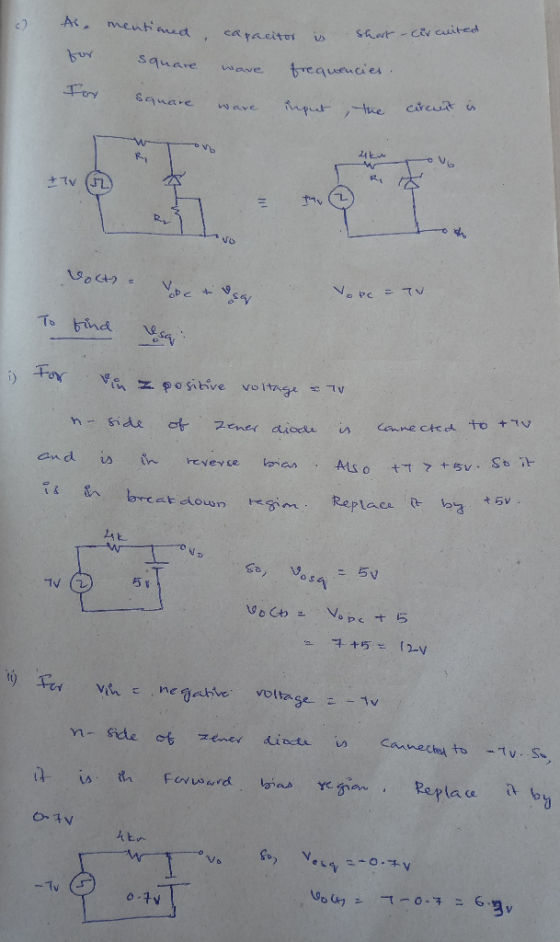

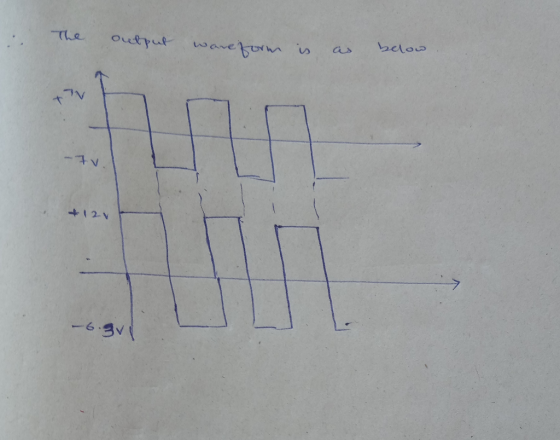

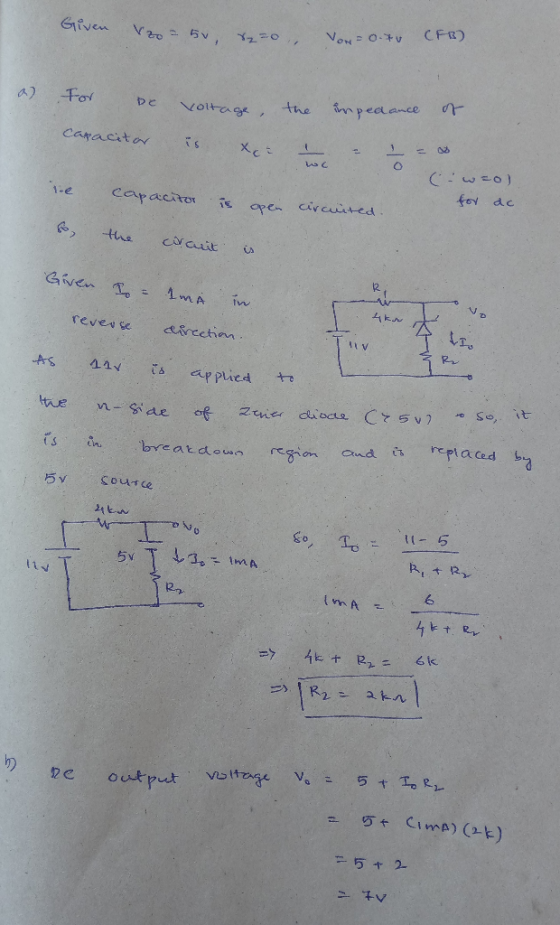

The circuit above is a Zener voltage regulator using D1N750 zener diode with Vz=4.7V: 1. Calculate...
The circuit above is a Zener voltage regulator
using D1N750 zener diode with Vz=4.7V:
1. Calculate the minimum value of E in order to have the voltage
across RL regulated VL=Vz
2. Using Orcad PSpice schematics, simulate the
circuit using bias point and find Iz, IL, Is and Vz (the circuit
must have all voltages and currents values shown).
3. Using Orcad PSpice schematics, use DC sweep to
vary RL from 200 ohm to 1000 ohm and plot VL (for...
5000 10.2 S pts) The Zener diode in the circuit on the right voltage V 20...
5000 10.2 S pts) The Zener diode in the circuit on the right voltage V 20 = 8.5V., and Zener resistancerz the circuit on the right has a Zener d) Find the Thevenin equivalent circuit as seen by lo b) Find the output voltage if a loa Find the output voltage if a load R, is connected and it draws a 1.5 mA current. Determine the value of RL c) How small can the load R, be, while ensuring that...
For the diodes, use the models shown below; the regular diode model has 0.7V forward bias...
For the diodes, use the models shown below; the regular diode
model has 0.7V forward bias voltage; the Zener diode model has -3V
breakdown voltage
Question 2 (25 points) For the diodes, use the models shown below; the regular diode model has 0.7V forward bias voltage; the Zener diode model has -3V breakdown voltage. a) Determine the minimum positive value of in to make D1 conduct current. (10 pts) b) Determine the minimum positive value of lin to make D2...
(a) The following circuit shows a linear voltage regulator. Assuming the zener diode has specifications (VZ = 2.5 V, IZ...
(a) The following circuit shows a linear
voltage regulator. Assuming the zener diode has specifications (VZ
= 2.5 V, IZ = 60 mA), select adequate resistor values to provide a
regulated output voltage Vo = 10 V from an unregulated voltage Vi =
15V.
(b) Calculate the power efficiency of the
regulator when a load RL = 10Ω is connected to the regulator
output.
(c) Briefly explain the terms “dropout”, “line
regulation”, and “load regulation”, as they apply to voltage...
In a Zener diode, the notation 5v6 means that the Zener voltage for breakdown is 5.6...
In a Zener diode, the notation 5v6 means that the Zener voltage for breakdown is 5.6 volts(see for example, here: http://www.mouser.com/Search/Refine aspx?Keyword BZX55C-5V6). How many volts will be across the output of the circuit below (the voltage listed as "?") if the input power supply: safety resistor 0.7v 1V8本 6v2本 is 5 volts? - f it is 9 volts? If it is 12 volts? power supply Explain and/or show calculations:
Ctri Question 3 (20 Marks) Lab 1-Zener Circuits and Applications Theory: Zener diode is designed ...
Ctri Question 3 (20 Marks) Lab 1-Zener Circuits and Applications Theory: Zener diode is designed to operate in reverse conduction. Zener breakdown occurs at a precisely defined voltage, allowing the diode to be used as a voltage reference or clipper. While Zener diodes are usually operated in reverse conduction, they may also be operated in cutoff and forward conduction. There are two different effects that are used in "Zener diodes". The only practical difference is that the two types have...
Problem 3: (20 points) A zener-diode voltage regulator circuit is shown belkw zener diode has breakdown voltage Vz 8.0V and the zener resistance is nsumed to be 0 ohms. The power supply voltage V...
Problem 3: (20 points) A zener-diode voltage regulator circuit is shown belkw zener diode has breakdown voltage Vz 8.0V and the zener resistance is nsumed to be 0 ohms. The power supply voltage Vps can vary between 10V and 14V and the lod resistance Ri can vary between 100 ohms and 1 kohm, 圧 1. Find a value of R such that the zener diode remains properly biased over the range of variation of Vps and RI (hint: the minimum...
that's all information it gives A zener-diode voltage regulator circuit is shown below. The tage V 8.0V and the zener resistance is assumed to Problem 3: (20 points) zener diode has breakdown...
that's all information it gives
A zener-diode voltage regulator circuit is shown below. The tage V 8.0V and the zener resistance is assumed to Problem 3: (20 points) zener diode has breakdown vol be 0 ohms. The power supply voltage Vps can vary between resistance RL can vary between 100 ohms and 1 kohm. 10V and 14V and the load Ri PS 1. Find a value of Ri such that the zener diode remains properly biased over the range of...
6. In the zener diode regulator circuit below calculate the value of the current through the...
6. In the zener diode regulator circuit below calculate the value of the current through the zener Diode if the power supply is rated at 24 volts @ 500 milliamperes. The load voltage is 12 volts and draws a current of 300 milliamperes. Also calculate the value of the series resistance R. ZENDER LOAD DIODE 24 VDC Vz 12 Volts @ 300 mA
2. In the circuit below, the forward voltage for each diode is 0.7 volts. Vdc 5V, R 10000, Vac 2c...
2. In the circuit below, the forward voltage for each diode is 0.7 volts. Vdc 5V, R 10000, Vac 2cos(wt) Volts A. Show that the diodes will always be in forward. B. Find the voltage across the diodes C. Find the current through the diodes. D1 D2 D3 + Vac Vdc
2. In the circuit below, the forward voltage for each diode is 0.7 volts. Vdc 5V, R 10000, Vac 2cos(wt) Volts A. Show that the diodes will always be...
The circuit above is a Zener voltage regulator
using D1N750 zener diode with Vz=4.7V:
1. Calculate the minimum value of E in order to have the voltage
across RL regulated VL=Vz
2. Using Orcad PSpice schematics, simulate the
circuit using bias point and find Iz, IL, Is and Vz (the circuit
must have all voltages and currents values shown).
3. Using Orcad PSpice schematics, use DC sweep to
vary RL from 200 ohm to 1000 ohm and plot VL (for...
5000 10.2 S pts) The Zener diode in the circuit on the right voltage V 20 = 8.5V., and Zener resistancerz the circuit on the right has a Zener d) Find the Thevenin equivalent circuit as seen by lo b) Find the output voltage if a loa Find the output voltage if a load R, is connected and it draws a 1.5 mA current. Determine the value of RL c) How small can the load R, be, while ensuring that...
For the diodes, use the models shown below; the regular diode
model has 0.7V forward bias voltage; the Zener diode model has -3V
breakdown voltage
Question 2 (25 points) For the diodes, use the models shown below; the regular diode model has 0.7V forward bias voltage; the Zener diode model has -3V breakdown voltage. a) Determine the minimum positive value of in to make D1 conduct current. (10 pts) b) Determine the minimum positive value of lin to make D2...
(a) The following circuit shows a linear
voltage regulator. Assuming the zener diode has specifications (VZ
= 2.5 V, IZ = 60 mA), select adequate resistor values to provide a
regulated output voltage Vo = 10 V from an unregulated voltage Vi =
15V.
(b) Calculate the power efficiency of the
regulator when a load RL = 10Ω is connected to the regulator
output.
(c) Briefly explain the terms “dropout”, “line
regulation”, and “load regulation”, as they apply to voltage...
In a Zener diode, the notation 5v6 means that the Zener voltage for breakdown is 5.6 volts(see for example, here: http://www.mouser.com/Search/Refine aspx?Keyword BZX55C-5V6). How many volts will be across the output of the circuit below (the voltage listed as "?") if the input power supply: safety resistor 0.7v 1V8本 6v2本 is 5 volts? - f it is 9 volts? If it is 12 volts? power supply Explain and/or show calculations:
Ctri Question 3 (20 Marks) Lab 1-Zener Circuits and Applications Theory: Zener diode is designed to operate in reverse conduction. Zener breakdown occurs at a precisely defined voltage, allowing the diode to be used as a voltage reference or clipper. While Zener diodes are usually operated in reverse conduction, they may also be operated in cutoff and forward conduction. There are two different effects that are used in "Zener diodes". The only practical difference is that the two types have...
Problem 3: (20 points) A zener-diode voltage regulator circuit is shown belkw zener diode has breakdown voltage Vz 8.0V and the zener resistance is nsumed to be 0 ohms. The power supply voltage Vps can vary between 10V and 14V and the lod resistance Ri can vary between 100 ohms and 1 kohm, 圧 1. Find a value of R such that the zener diode remains properly biased over the range of variation of Vps and RI (hint: the minimum...
that's all information it gives
A zener-diode voltage regulator circuit is shown below. The tage V 8.0V and the zener resistance is assumed to Problem 3: (20 points) zener diode has breakdown vol be 0 ohms. The power supply voltage Vps can vary between resistance RL can vary between 100 ohms and 1 kohm. 10V and 14V and the load Ri PS 1. Find a value of Ri such that the zener diode remains properly biased over the range of...
6. In the zener diode regulator circuit below calculate the value of the current through the zener Diode if the power supply is rated at 24 volts @ 500 milliamperes. The load voltage is 12 volts and draws a current of 300 milliamperes. Also calculate the value of the series resistance R. ZENDER LOAD DIODE 24 VDC Vz 12 Volts @ 300 mA
2. In the circuit below, the forward voltage for each diode is 0.7 volts. Vdc 5V, R 10000, Vac 2cos(wt) Volts A. Show that the diodes will always be in forward. B. Find the voltage across the diodes C. Find the current through the diodes. D1 D2 D3 + Vac Vdc
2. In the circuit below, the forward voltage for each diode is 0.7 volts. Vdc 5V, R 10000, Vac 2cos(wt) Volts A. Show that the diodes will always be...
