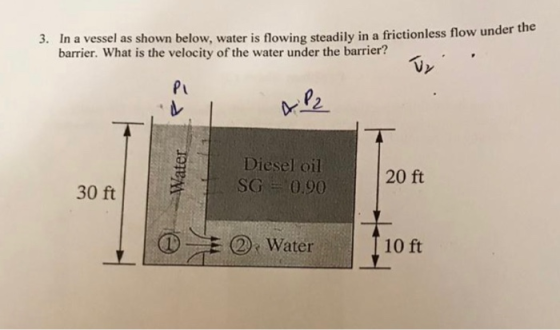

3. In a vessel as shown below, water is flowing steadily in a frictionless flow under...

Question

Question

engineering Chemical-Engineering

Answer 1

Similar Homework Help Questions

1) Fluid with 65 Ibm/ftA3 density is flowing steadily through the rectangular box shown. Given A1-50.5...

1) Fluid with 65 Ibm/ftA3 density is flowing steadily through the rectangular box shown. Given A1-50.5 ft 2, A)-50.1 ft2, Aj-50.6 ft 2, V 10 i ft/s, and V2 20 j ft/s, determine velocity V3. 2 3 1.60% Problem1
(Fluid mechanics) 2 of 3 Water, assumed inviscid and incompressible, flows steadily out of a large...

(Fluid mechanics) 2 of 3 Water, assumed inviscid and incompressible, flows steadily out of a large tank as shown in the adjacent figure. Above the water there is a 2-m layer of oil of specific gravity SG = 0.81 and the water outlet is located 0.7 m below the oil-water interface. Take the elevation reference (z = 0) at the outlet level. Determine: Oil, SG = 0.81 0.7 m Water 50 mm diameter a) Are the validity conditions of Bernoulli's...
Water at 200 C is steadily flowing an angre) verging pipe section that is inclined by...

Water at 200 C is steadily flowing an angre) verging pipe section that is inclined by the figtun an C is steadily flowing throle of ong with an diameter of 10 mm C2. The kPa ction 2). The smal pect to the horizontal (See initial testing sectio The total testing section length is 2ction small final diameter of 20 mm (Seetion2 of 100 diameter section shows a gage presas. Other ibriun D2 20 mm and average flow velocity will be...

fluid is flowing horizontally from point 1 to point 2 as shown below. if the pressure...

fluid is flowing horizontally from point 1 to point 2 as shown below. if the pressure at point 1 is 20 psi, find the pressure at point 2 in psi, if the velocity at point 1 is 11 ft/s and the velocity at point 2 is 41 ft/s. the specific gravity of the oil is 0.9. there is no energy loss or added in the system
Water at 20 C is steadily flowing through a diverging pipe section that is inclined by...

Water at 20 C is steadily flowing through a diverging pipe section that is inclined by an angle of 30° with respect to the horizontal (See the figure) The total testing section length is 20 m long with an initial pipe diameter of 10 mm (Section 1) and final diameter of 20 mm (Section 2). The small diameter section shows a gage pressure of 100 kPa and average flow velocity 10 m/s. Other values will be obtained by reaching complete...
Water is flowing in a 12-inch pipe inclined downward on a slope of 10% as shown...

Water is flowing in a 12-inch pipe inclined downward on a slope of 10% as shown below. The discharge is 1000 gpm and piezometers located 30 ft. apart measure a difference in piezometric head of 0.1 ft. a) What is the pressure drop across the pipe? b) What is the shear stress exerted on the pipe boundary? c) What is the shear velocity? d) What is the Darcy friction factor?

Water flows steadily from a large tank as shown in the figure. The height of water...

Water flows steadily from a large tank as shown in the figure. The height of water in the tank is H = 4 m represents the height from the centerline of the horizontal pipe to the surface of the water in the tank. The water flows out of the tank through a pipe with diameter of 4 cm. The stream of water flows through a bend (= 30 degrees, L = 2.88 m) and exits as a free jet through...
Please!. I need help PROBLEMS 1. What is the Reynold's number for water flowing in a...

Please!. I need help PROBLEMS 1. What is the Reynold's number for water flowing in a 24-inch circular pipe at a velocity of 6.21 ft/s? Is the flow laminar or turbulent? 2. Water is flowing in a 2/2-inch pipe with a discharge of 0.150 cfs. Find the Reynold's number for this flow. Is the flow laminar or turbulent? 3. Water is flowing in a 4-inch pipe with a discharge of 4.0 × 10-3 cfs. Find the Reynolds number for this...
3. The water flow in the concrete pipe looping system shown in the figure below is...

3. The water flow in the concrete pipe looping system shown in the figure below is 15 ft/s. Compute the head loss from point A to point G. Temp of water -20° C. 1500 ft, 18-in diameter B A- 2500 ft, 30-in diameter Q= 15 ft/sec 2000 ft, 15-in diameter Q = 15 ft/sec - G 1000 ft, 12-in diameter C 2000 ft, 15-in diameter

1. Solve this problem in symbols first and then plug in numbers. pressurized vessel contains water...

1. Solve this problem in symbols first and then plug in numbers. pressurized vessel contains water with some air above it, as shown below. A multi-fluid manometer system is used o determine the pressure at the air-water interface, point F. Determine the gage pressure at point F in kPa gage. oil Air Mercury Data h, . 0.24 mi, h2 0.35 m and h3 . 0.52 m Assume the fluid densities are water 1000 kg/m2, oil: 790 kg/m2 and mercury(Hg): 13,600...
