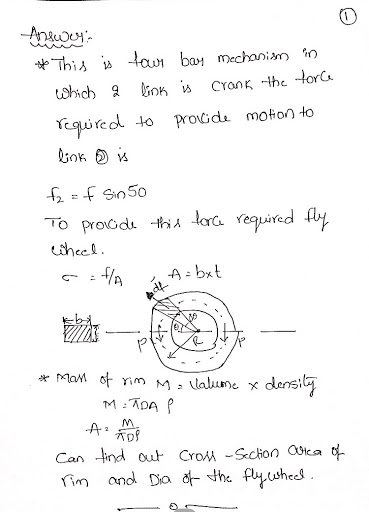

1140 Design a steel disk flywheel to smooth the input torque for the crank of Problem...
7 Fo row s) assi igned in Table 020) P11-3 (a-f) (p. 618), input the associated disk file to or t...
please solve for part a data
7 Fo row s) assi igned in Table 020) P11-3 (a-f) (p. 618), input the associated disk file to or tNKAGES, calculate the linkage parameters for crank angles from zero to progra 5 increments with α) = 0, and design a steel disk flywheel to smooth the input 11.7 For the ro a coefficient of fluctuation of 0.05. Minimize the flywheel weight. DESIGN OF MACHINERY Data for Problems 11-5 and 11-7 (See Figure P11-2...
Input -Output Given: A multiple-disk dry clutch for an industrial application must transmit 6 hp at...
Input -Output Given: A multiple-disk dry clutch for an industrial application must transmit 6 hp at 200 rpm. Based on space limitations, inside and outside disk diameters have been set at 5 and 7 in., respectively. Materials are hardened steel and sintered bronze. Tests have indicated that design values of pmax - 225 psi and f = 0.2 are appropriate. Find: (a) For a safety factor of 2 with respect to clutch slippage, what total number of disks is needed?...
Section 19.1-19.3 HW Problem 19.15 2 of 4 A6 kg disk Als mounted on arm BC...
Section 19.1-19.3 HW Problem 19.15 2 of 4 A6 kg disk Als mounted on arm BC which has a negligtale mass Atorgue of M - (5) Nm where t is in seconds is applied to the armat Suppose that 1 = 280 mm (Figure 1) Part A Determine the magnitude of the angular velocity of Bin 2 starting from rest Solve the problem assuming that the disk is set in a smooth bearing at B so that it rotates with...
Design a flyback converter for an input of 24 volts and an output of 40 volts. Assume a 40W load and keep the blocking voltage for the transistor to < 26 volts. For your design determine: a) The tr...
Design a flyback converter for an input of 24 volts and an
output of 40 volts. Assume a 40W load and keep the blocking voltage
for the transistor to < 26 volts.
For your design determine:
a) The transformer turn ratio n (5).
b) The duty cycle D (5).
c) The average source current (3).
d) The output voltage of the converter when we include the
effect of a transformer winding losses as 0.05 ohms (7).
Using a MOSFET and...
Steel Structures: Design and Behavior (4th Edition) 4th Edition - chapter 8, problem-8.13 ( for the...
Steel Structures: Design and Behavior (4th Edition) 4th Edition - chapter 8, problem-8.13 ( for the first load case) Select the lightest W14 section, using the ??modified flexure analogy approach, to carry a concentrated load W at mid-span of a 24 ft beam, in addition to the weight of the beam. The ends of the simply supported span are assumed to have torsional simple support. The dead load, WD = 7 kips, the live load, WL = 22 kips, Fy...
Hi...please I want the solution of this problem of steel design of civil Engineering by using...
Hi...please I want the solution of this problem of
steel design of civil Engineering by using ACI_318 Amarican
code
Example: At a certain section in the cover plated beam of figure shown, the external factored shears are Vu=275k. Determine the spacing required for (7/8)in A325 bolts used in a bearing type connection. Assume that the bolt threads are excluded from the shear plane (A325-X), the edge distance is 3.5in, Fy=50ksi, and Fu=65 ksi. Deformation at bolt holes is a design...
PLEASE HELP ME INPUT THIS INTO MATLAB, this is solutions manual for DESIGN of MACHINERY 5th...
PLEASE HELP ME INPUT THIS INTO MATLAB, this is
solutions manual for DESIGN of MACHINERY 5th Edition number
11-12
PROBLEM 11-12 Statement: Figure P11-5b shows a fourbar linkage and its dimensions in meters. The steel crank, coupler, and rocker have uniform cross sections of 60 mm diameter. In the instantaneous position shown, the crank 0,4 has a = -10 rad/sec and a = 10 rad/sec2. There is a honizontal force at P of F = 500 N. Find all pin...
PROBLEM 2: Design a rectangular beam well inside the tension-controlled zone. Start calculations assuming εt=0.0075 Select...
PROBLEM 2: Design a rectangular beam well inside the
tension-controlled zone. Start calculations assuming εt=0.0075
Select b, d and As to resist a factored design moment, Mu = 255
k-ftin the tension-controlled zone.
PROBLEM 2: Design a rectangular beam well inside the tension-controlled zone. Start calculations assuming ε-0.0075 Select b, d and As to resist a factored design moment, Mu 255 k-ft in the tension-controlled zone. Material Characteristics: Compression Strength of Concrete - fc 4,000 psi Yielding stress of steel...
CS 215 Program Design, Abstraction, and Problem Solving Programming Project #3 INTRODUCTION The goal of this...
CS 215 Program Design, Abstraction, and Problem Solving Programming Project #3 INTRODUCTION The goal of this programming project is to enable the student to practice designing a program that solves a problem using a class and a linked-list and developing a C++ program to implement the solution. PROJECT TASKS 1. Read the problem definition below and then analyze it before designing a solution. You will produce a document (external documentation) of this definition, analysis, and design. 2. Write a C++...
How do I solve this? Problem 2(50 points) The roof of the Edwin A. Stevens building...
How
do I solve this?
Problem 2(50 points) The roof of the Edwin A. Stevens building is to be redesigned to accommodate a billboard for Stevens Institute of Technology. The new billboard will weigh 40 kips and be supported equally by two columns located 9 ft from the rear of the building. The beams supporting the new roof will be simply supported as shown. (Note there is a 5 ft overhang at the front of the building). For the grade...
please solve for part a data
7 Fo row s) assi igned in Table 020) P11-3 (a-f) (p. 618), input the associated disk file to or tNKAGES, calculate the linkage parameters for crank angles from zero to progra 5 increments with α) = 0, and design a steel disk flywheel to smooth the input 11.7 For the ro a coefficient of fluctuation of 0.05. Minimize the flywheel weight. DESIGN OF MACHINERY Data for Problems 11-5 and 11-7 (See Figure P11-2...
Input -Output Given: A multiple-disk dry clutch for an industrial application must transmit 6 hp at 200 rpm. Based on space limitations, inside and outside disk diameters have been set at 5 and 7 in., respectively. Materials are hardened steel and sintered bronze. Tests have indicated that design values of pmax - 225 psi and f = 0.2 are appropriate. Find: (a) For a safety factor of 2 with respect to clutch slippage, what total number of disks is needed?...
Section 19.1-19.3 HW Problem 19.15 2 of 4 A6 kg disk Als mounted on arm BC which has a negligtale mass Atorgue of M - (5) Nm where t is in seconds is applied to the armat Suppose that 1 = 280 mm (Figure 1) Part A Determine the magnitude of the angular velocity of Bin 2 starting from rest Solve the problem assuming that the disk is set in a smooth bearing at B so that it rotates with...
Design a flyback converter for an input of 24 volts and an
output of 40 volts. Assume a 40W load and keep the blocking voltage
for the transistor to < 26 volts.
For your design determine:
a) The transformer turn ratio n (5).
b) The duty cycle D (5).
c) The average source current (3).
d) The output voltage of the converter when we include the
effect of a transformer winding losses as 0.05 ohms (7).
Using a MOSFET and...
Hi...please I want the solution of this problem of
steel design of civil Engineering by using ACI_318 Amarican
code
Example: At a certain section in the cover plated beam of figure shown, the external factored shears are Vu=275k. Determine the spacing required for (7/8)in A325 bolts used in a bearing type connection. Assume that the bolt threads are excluded from the shear plane (A325-X), the edge distance is 3.5in, Fy=50ksi, and Fu=65 ksi. Deformation at bolt holes is a design...
PLEASE HELP ME INPUT THIS INTO MATLAB, this is
solutions manual for DESIGN of MACHINERY 5th Edition number
11-12
PROBLEM 11-12 Statement: Figure P11-5b shows a fourbar linkage and its dimensions in meters. The steel crank, coupler, and rocker have uniform cross sections of 60 mm diameter. In the instantaneous position shown, the crank 0,4 has a = -10 rad/sec and a = 10 rad/sec2. There is a honizontal force at P of F = 500 N. Find all pin...
PROBLEM 2: Design a rectangular beam well inside the
tension-controlled zone. Start calculations assuming εt=0.0075
Select b, d and As to resist a factored design moment, Mu = 255
k-ftin the tension-controlled zone.
PROBLEM 2: Design a rectangular beam well inside the tension-controlled zone. Start calculations assuming ε-0.0075 Select b, d and As to resist a factored design moment, Mu 255 k-ft in the tension-controlled zone. Material Characteristics: Compression Strength of Concrete - fc 4,000 psi Yielding stress of steel...
How
do I solve this?
Problem 2(50 points) The roof of the Edwin A. Stevens building is to be redesigned to accommodate a billboard for Stevens Institute of Technology. The new billboard will weigh 40 kips and be supported equally by two columns located 9 ft from the rear of the building. The beams supporting the new roof will be simply supported as shown. (Note there is a 5 ft overhang at the front of the building). For the grade...
