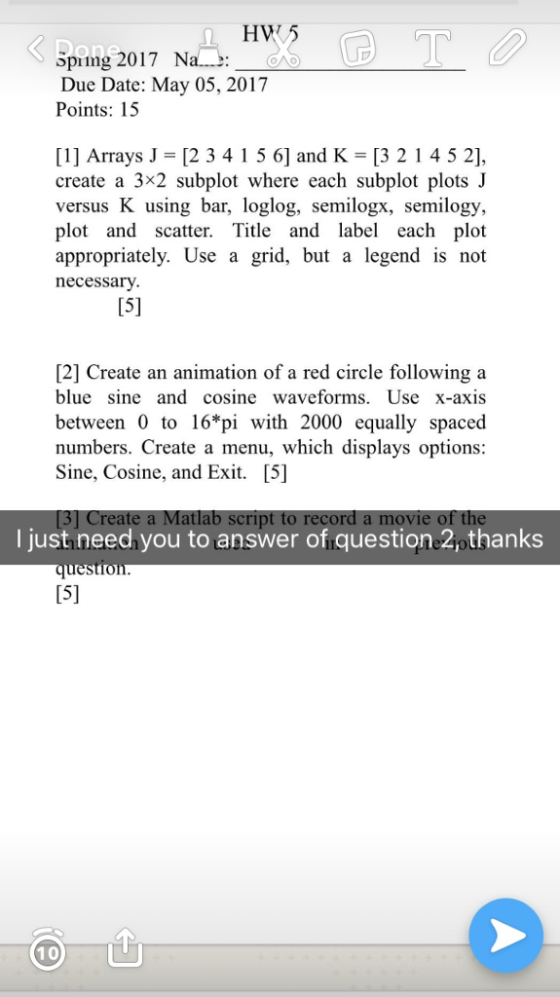

![HW 5 Sprmg 2017 N Due Date: May 05, 2017 Points: 15 [1] Arrays J [2 3 4 1 5 6] and K [3 2 1 4 5 2], create a 3x2 subplot where each subplot plots J versus K using bar, loglog, semilogx, semilogy. plot and scatter. Title and label each plot appropriately. Use a grid, but a legend is not necessary. [5] [2] Create an animation of a red circle following a blue sine and cosine waveforms. Use x-axis between 0 to 16 pi with 2000 equally spaced numbers. Create a menu, which displays options: Sine, Cosine, and Exit. [5] 13 Create a Matlab script to record a movie of the I just need you to answer of question.2, thanks 15] 10](http://img.homeworklib.com/questions/eff52c20-a717-11eb-b22f-9308f499ddea.png?x-oss-process=image/resize,w_560)
Homework Answers
Question 2:

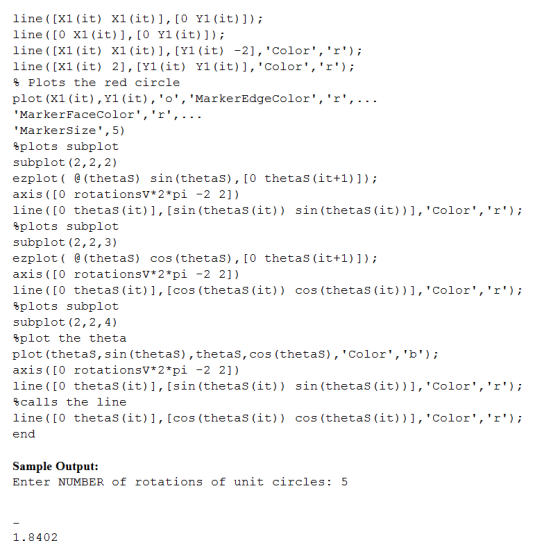

![line ([X1 (it) X1 (it)], [0 Y1 (it)]) line ([0 X1 (it)], [0 Yl (it) ]) line ([X1 (it) X1 (it)1, [Y1 (it) -2, Color, r lin](http://img.homeworklib.com/questions/92c402f0-a71b-11eb-86b1-3d9a5e1547ad.png?x-oss-process=image/resize,w_560)

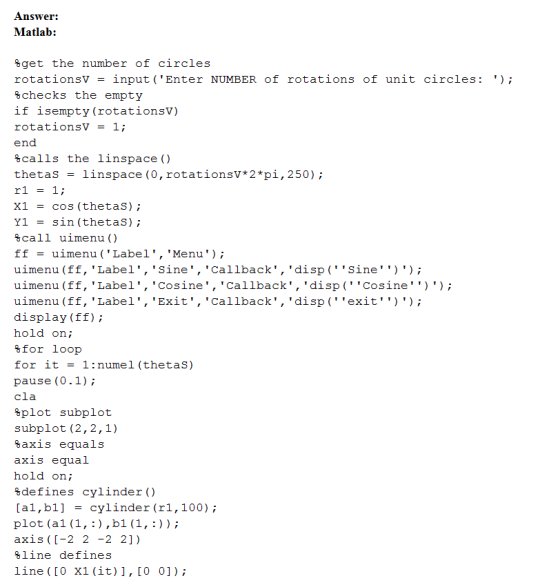

Executable code:
%get the number of circles
rotationsV = input('Enter NUMBER of rotations of unit circles:
');
%checks the empty
if isempty(rotationsV)
rotationsV = 1;
end
%calls the linspace()
thetaS = linspace(0,rotationsV*2*pi,250);
r1 = 1;
X1 = cos(thetaS);
Y1 = sin(thetaS);
%call uimenu()
ff = uimenu('Label','Menu');
uimenu(ff,'Label','Sine','Callback','disp(''Sine'')');
uimenu(ff,'Label','Cosine','Callback','disp(''Cosine'')');
uimenu(ff,'Label','Exit','Callback','disp(''exit'')');
display(ff);
hold on;
%for loop
for it = 1:numel(thetaS)
pause(0.1);
cla
%plot subplot
subplot(2,2,1)
%axis equals
axis equal
hold on;
%defines cylinder()
[a1,b1] = cylinder(r1,100);
plot(a1(1,:),b1(1,:));
axis([-2 2 -2 2])
%line defines
line([0 X1(it)],[0 0]);
line([X1(it) X1(it)],[0 Y1(it)]);
line([0 X1(it)],[0 Y1(it)]);
line([X1(it) X1(it)],[Y1(it) -2],'Color','r');
line([X1(it) 2],[Y1(it) Y1(it)],'Color','r');
% Plots the red circle
plot(X1(it),Y1(it),'o','MarkerEdgeColor','r',...
'MarkerFaceColor','r',...
'MarkerSize',5)
%plots subplot
subplot(2,2,2)
ezplot( @(thetaS) sin(thetaS),[0 thetaS(it+1)]);
axis([0 rotationsV*2*pi -2 2])
line([0 thetaS(it)],[sin(thetaS(it))
sin(thetaS(it))],'Color','r');
%plots subplot
subplot(2,2,3)
ezplot( @(thetaS) cos(thetaS),[0 thetaS(it+1)]);
axis([0 rotationsV*2*pi -2 2])
line([0 thetaS(it)],[cos(thetaS(it))
cos(thetaS(it))],'Color','r');
%plots subplot
subplot(2,2,4)
%plot the theta
plot(thetaS,sin(thetaS),thetaS,cos(thetaS),'Color','b');
axis([0 rotationsV*2*pi -2 2])
line([0 thetaS(it)],[sin(thetaS(it))
sin(thetaS(it))],'Color','r');
%calls the line
line([0 thetaS(it)],[cos(thetaS(it))
cos(thetaS(it))],'Color','r');
end
