The system of differential equations for the currents i1 (t) and i2(t) in the electrical network...

Question

Question

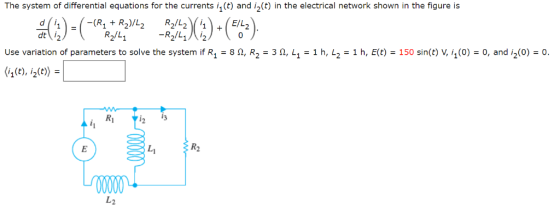

The system of differential equations for the currents i1 (t) and i2(t) in the electrical network shown in the figure is dt(々

engineering Electrical-Engineering

Answer 1

Answer #1

s. 15ος.nt TH ISD JI V ISD 3 s-01 846-32.3 ˇ- 1611 158.Gs volt 150-16.11 Ls. stjl 14.71 LS6-6

Answer 2

Similar Homework Help Questions

(a) Show that the system of differential equations for the currents i2(t) and i3(t) in the...

(a) Show that the system of differential equations for the currents i2(t) and i3(t) in the electrical network shown in the figure below is L1*(di2/dt) + Ri2 + Ri3 = E(t) L2*(di3/dt) + Ri2 + Ri3 = E(t) Solve the system in part (a) if R = 5 Ω, L1 = 0.01 h, L2 = 0.05 h, E = 100 V, i2(0) = 0, and i3(0) = 0. i2(t) = ?? i3(t) = ?? (c) Determine the current i1(t). i1(t)...
(a) Show that the system of differential equations for the currents iz(t) and iz(t) in the...

(a) Show that the system of differential equations for the currents iz(t) and iz(t) in the electrical network shown in the figure below is di2 41 + RI2 + Riz = E(t) dt di3 L2 + RI2 + Riz = E(t). dt R 13 41 i2 E ᏪᎲ L lllll L2 By Kirchhoff's first law we have the following relationship between 11, 12, and iz. 11 - 12+ iz By applying Kirchhoff's second law to the iq, iz loop, we...
determine the currents I1, I2, and I3 for the electrical network shown in Figure 1.23 lineal...

determine the currents I1, I2, and I3 for the electrical network shown in Figure 1.23 lineal algebra Network Analysis 2 71. Determine the currents 1, 2, and Iz for the electrical network shown in Figure 1.23. 3 volls R1 = 3 2 volts HELL

(20 points) Determine the differential equations for the given electrical circuit shown below. Equa- tions should...

(20 points) Determine the differential equations for the given electrical circuit shown below. Equa- tions should be purely in the form of in, and in and their derivatives (no integral terms). Simplify to the simplest form. Assume: E(t) = 2sin(t) Volts, R1 = 11, R2 = 512, L1 = 2H, L2 = 4H, C1 = 0.5F, C2 = 0.25F R1 C L2 + E(1) i2 C2 R2
Please write very clear 1. (20 points) Determine the differential equations for the given electrical circuit...

Please write very clear 1. (20 points) Determine the differential equations for the given electrical circuit shown below. Equa- tions should be purely in the form of i1, and i2 and their derivatives (no integral terms). Simplify to the simplest form. Assume: E(t) = 2sin(t)Volts, R2 = 112, R2 = 512, L1 = 2H, L2 = 4H, C = 0.5F, C2 = 0.25F font E(t)
1. (20 points) Determine the differential equations for the given electrical circuit shown below. Equa- tions...

1. (20 points) Determine the differential equations for the given electrical circuit shown below. Equa- tions should be purely in the form of in, and in and their derivatives (no integral terms). Simplify to the simplest form. Assume: E(t) = 2sin(t)Volts, R1 = 112, R2 = 52, L1 = 2H, L2 = 4H, C1 = 0.5F, C2 = 0.25F R1 C1 L2 E(t) :C2 } R2

1. Determine the differential equations for the given electrical circuit shown below. Equa- tions should be...

1. Determine the differential equations for the given electrical circuit shown below. Equa- tions should be purely in the form of in, and in and their derivatives (no integral terms). Simplify to the simplest form. Assume: E(t) = 2sin(t)Volts, R2 = 11, R2 = 512, L1 = 2H, L2 = 4H, C= 0.5F, C2 = 0.25F C R1 w mm foto E(0)
Write, but do not solve, the mesh equations for the network shown. Put the equations in...

Write, but do not solve, the mesh equations for the network shown. Put the equations in matrix form. L1 R1 L2 12 R2 R4 v(t) 13
5. Figure 5 shows an electrical network, i) obtain the differential equations of the network and nofind the tran...

5. Figure 5 shows an electrical network, i) obtain the differential equations of the network and nofind the transfer function F(s) show that the same transfer function is obtained 12(s)/Vin(s); ii) Analyse the circuit in the s-domain and R. C i2(t) Vin(t) L Figure 5. Electrical Network 4. Find the transfer function X2(s)/F(s) of the spring-mass system shown in Figure 4. The system moves over a frictionless surface. h M2 M1 Figure 4. A 2 DOF spring-mass system over a...

a) [15 marks] Write the differential equations that describe the behavior of the electrical system shown...

a) [15 marks] Write the differential equations that describe the behavior of the electrical system shown in Figure 1. Assume that all electrical components behave linearly. Note that v(t) is an external input voltage signal, and vi(t) is the output voltage signal, respectively. 0000 1H 1Ω 1Ω M v(t) Figure 1. Electrical network for question 1. Use the currents ij, iz, and iz which flow through the inductors next to the red, green, and blue arrows, respectively, as the key...
