6. 014 points ! Previous Answers For the following circuit and given that R1 : 31.5 Ω, R2 = 69.8 Ω, R3-34.3 Ω, R4-586 Ω, Rs 10 n, νί-26V and it :-79 mA. Rs 2 Use the node-voltage method to find the voltage (Vx)across R5 Voltage at node 1 147.09 Voltage at node 2 147.09 Voltage at node 3 218.59

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

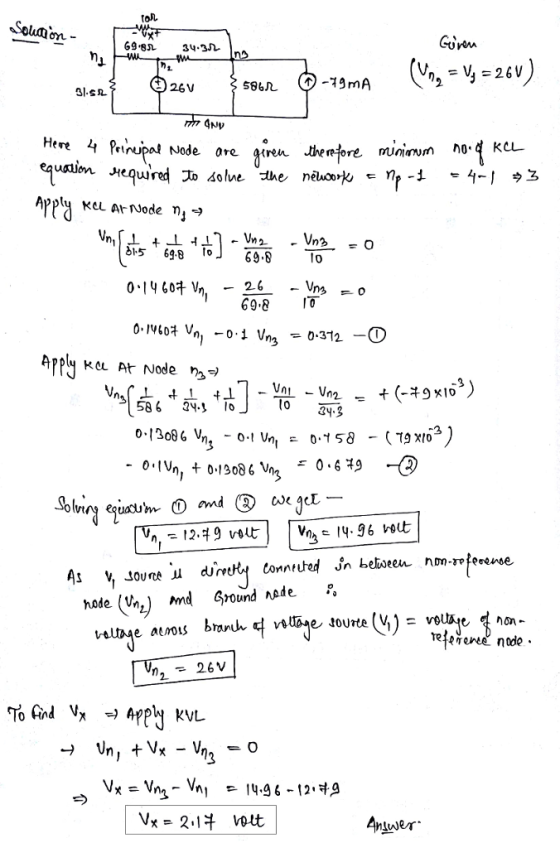

Apply the KCL across node Vn1 and Vn3 to obtain the two KCL equations .Using method of linear equations we can easily obtain the node voltages..

0 0
