Elaina ation PartA Use the mesh-current method to find the power developed in the dependent voltage...
Use the mesh-current method to find the power developed in the dependent voltage source in the...
Use the mesh-current method to find the power developed in the
dependent voltage source in the circuit in figure if v = 44
V .

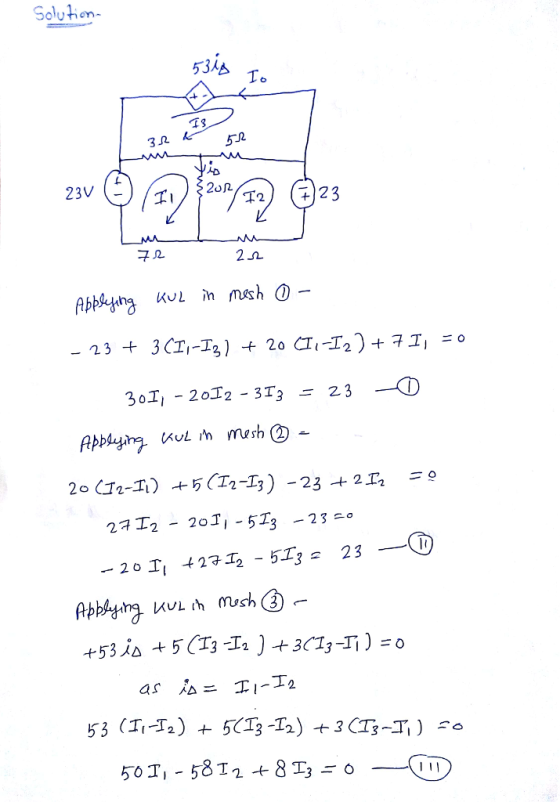

531 820 Ω

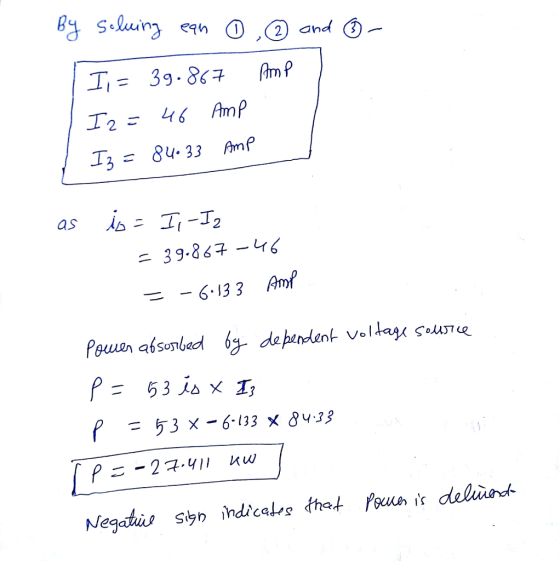

Part A Use the mesh-current method to find the total power developed in the circuit in...
Part A Use the mesh-current method to find the total power developed in the circuit in figure(Figure 1)if i = 20 A. Express your answer with the appropriate units. Figure < 1 of 1 > TI MÅ o 2 ? Pdev = | Value Pdev = W Submit Previous Answers Request Answer X Incorrect; Try Again; 11 attempts remaining 3202 6.5 IN Provide Feedback
Find Pdel Part A Use the mesh-current method to find the power delivered by the dependent...
Find Pdel
Part A Use the mesh-current method to find the power delivered by the dependent voltage source in the circuit seen in figure, if vg 726 V 5Ω 15Ω 10 Ω 25 Ω | 20 ie Tap image to zoom Express your answer with the appropriate units. pdel= 1 Value Units
Review Constants Part A Find the power developed by the current source in the circuit(Figure 1)if...
Review Constants Part A Find the power developed by the current source in the circuit(Figure 1)if v = 38.0 V and i = 30 mA. Express your answer to two significant figures and include the appropriate units. P30mA = Value Units Submit Request Answer Figure < 1 of 1 > Part B Find the power developed by the voltage source. Express your answer to two significant figures and include the appropriate units. 8022 w + 2023 CHA MO O ?...
Please answer showing detailed work. PartA Consider the circuit shown in (Figure 1). Suppose that k...
Please answer showing detailed work.
PartA Consider the circuit shown in (Figure 1). Suppose that k 135 and V 180 V Use the mesh-current method to calculate the power delivered by the dependent voltage source Express your answer to three significant figures and include the appropriate units Figure 1 of 1 .1 Value Units Paelratue Submit 10Ω 30Ω ki, Provide Feedback 20Ω
Problem 4.32 Consider the circuit shown in (Figure 1). Use the mesh- current method to find...
Problem 4.32 Consider the circuit shown in (Figure 1). Use the mesh- current method to find the branch currents ia - ze in the circuit. Take v1 = 32 V and ug = 2 V. Part A Find in Express your answer to three significant figures and include the appropriate units. HÅ ? Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Find is. Express your answer to three significant figures and include...
Problem 4.11 Part A Use the node-voltage method to find vi in the circuit(Figure 1) if...
Problem 4.11 Part A Use the node-voltage method to find vi in the circuit(Figure 1) if y = 150 V , i = 2.3 A. Express your answer with the appropriate units. .'! ? Value Units Submit Request Answer Part B Use the node-voltage method to find vg in the circuit. Express your answer with the appropriate units. LA ? Value Units Submit Request Answer Provide Feedback Figure < 1 of 1 > 40 w 80 w 0310 350
Part B Verify your solution by using the mesh-current method to find io. Express your answer...
Part B Verify your solution by using the mesh-current method to find io. Express your answer with the appropriate units. CH MÅ Value → O O ? Units in = Submit Request Answer Part A Use a series of source transformations to find i, in the circuit in the figure.(Figure 1)Take i = 2.1 A and v = 22 V. Express your answer with the appropriate units. C: HÅR O a ? ie= Value Units Submit Request Answer Figure (...
Problem 4 Part A Find the average power supplied by the voltage source in the circuit...
Problem 4 Part A Find the average power supplied by the voltage source in the circuit in the figure if Ug = 40 cos 10% V. Express your answer with the appropriate units. View Available Hint(s) UNHA to P= 9.69 w Submit Previous Answers Figure 1 of 1 > X Incorrect; Try Again; & attempts remaining Part B 401 Find the reactive power supplied by the voltage source in the circuit. Express your answer with the appropriate units. 80 H...
A.) Use the mesh-current method to find the branch current Ia in the circuit shown in the figure ...
A.) Use the mesh-current method to find the branch current Ia in
the circuit shown in the figure when Io= 2.2 ∠0∘A, Vg1= 22 ∠0∘V,
and
Vg2= 11 ∠0∘V.(Figure 1)
B.) Use the mesh-current method to find the branch current Ib in
the circuit shown in the figure.
C.) Use the mesh-current method to find the branch current Ic in
the circuit shown in the figure.
D.) Use the mesh-current method to find the branch current Id in
the circuit...
Use the mesh-current method to find the power developed in the
dependent voltage source in the circuit in figure if v = 44
V .
531 820 Ω
Part A Use the mesh-current method to find the total power developed in the circuit in figure(Figure 1)if i = 20 A. Express your answer with the appropriate units. Figure < 1 of 1 > TI MÅ o 2 ? Pdev = | Value Pdev = W Submit Previous Answers Request Answer X Incorrect; Try Again; 11 attempts remaining 3202 6.5 IN Provide Feedback
Find Pdel
Part A Use the mesh-current method to find the power delivered by the dependent voltage source in the circuit seen in figure, if vg 726 V 5Ω 15Ω 10 Ω 25 Ω | 20 ie Tap image to zoom Express your answer with the appropriate units. pdel= 1 Value Units
Review Constants Part A Find the power developed by the current source in the circuit(Figure 1)if v = 38.0 V and i = 30 mA. Express your answer to two significant figures and include the appropriate units. P30mA = Value Units Submit Request Answer Figure < 1 of 1 > Part B Find the power developed by the voltage source. Express your answer to two significant figures and include the appropriate units. 8022 w + 2023 CHA MO O ?...
Please answer showing detailed work.
PartA Consider the circuit shown in (Figure 1). Suppose that k 135 and V 180 V Use the mesh-current method to calculate the power delivered by the dependent voltage source Express your answer to three significant figures and include the appropriate units Figure 1 of 1 .1 Value Units Paelratue Submit 10Ω 30Ω ki, Provide Feedback 20Ω
Problem 4.32 Consider the circuit shown in (Figure 1). Use the mesh- current method to find the branch currents ia - ze in the circuit. Take v1 = 32 V and ug = 2 V. Part A Find in Express your answer to three significant figures and include the appropriate units. HÅ ? Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Find is. Express your answer to three significant figures and include...
Problem 4.11 Part A Use the node-voltage method to find vi in the circuit(Figure 1) if y = 150 V , i = 2.3 A. Express your answer with the appropriate units. .'! ? Value Units Submit Request Answer Part B Use the node-voltage method to find vg in the circuit. Express your answer with the appropriate units. LA ? Value Units Submit Request Answer Provide Feedback Figure < 1 of 1 > 40 w 80 w 0310 350
Part B Verify your solution by using the mesh-current method to find io. Express your answer with the appropriate units. CH MÅ Value → O O ? Units in = Submit Request Answer Part A Use a series of source transformations to find i, in the circuit in the figure.(Figure 1)Take i = 2.1 A and v = 22 V. Express your answer with the appropriate units. C: HÅR O a ? ie= Value Units Submit Request Answer Figure (...
Problem 4 Part A Find the average power supplied by the voltage source in the circuit in the figure if Ug = 40 cos 10% V. Express your answer with the appropriate units. View Available Hint(s) UNHA to P= 9.69 w Submit Previous Answers Figure 1 of 1 > X Incorrect; Try Again; & attempts remaining Part B 401 Find the reactive power supplied by the voltage source in the circuit. Express your answer with the appropriate units. 80 H...
A.) Use the mesh-current method to find the branch current Ia in
the circuit shown in the figure when Io= 2.2 ∠0∘A, Vg1= 22 ∠0∘V,
and
Vg2= 11 ∠0∘V.(Figure 1)
B.) Use the mesh-current method to find the branch current Ib in
the circuit shown in the figure.
C.) Use the mesh-current method to find the branch current Ic in
the circuit shown in the figure.
D.) Use the mesh-current method to find the branch current Id in
the circuit...
