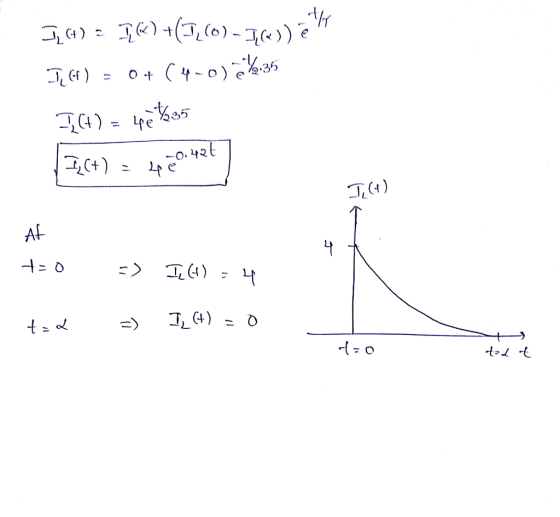

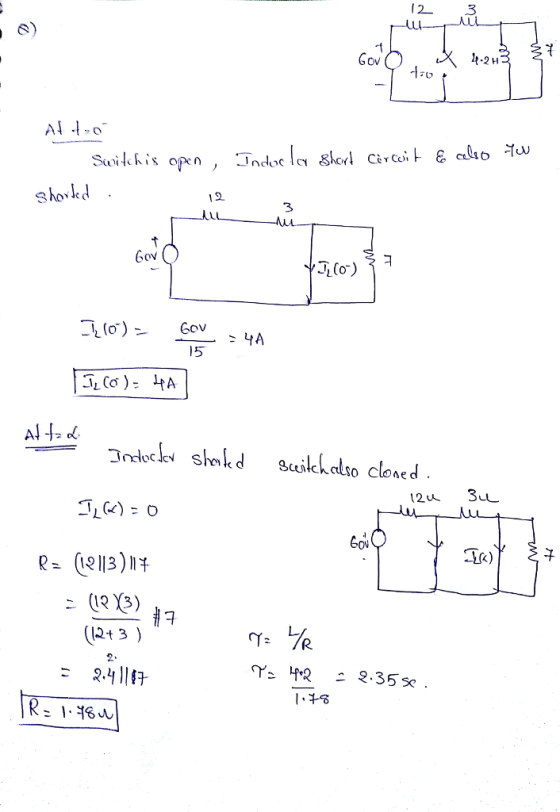

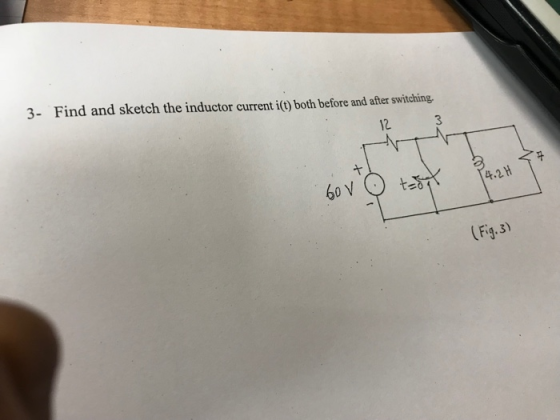

3- Find and sketch the inductor current i() both before and after switching 3 12 .2H...
2- Find and sketch the inductor current i(), both before and after time t-0 Nr 750 250 5H l00v (Fig-2)
Camera flashes charge a capacitor to high voltage by switching
the current through an inductor on and off rapidly.
In how many seconds must the 0.11 A current through a 2.9 mH
inductor be switched on or off to induce an average 485 V emf?
(25%) Problem 4: Camera flashes charge a capacitor to high voltage by switching the current through an inductor on and off rapidly. Randomized Variables L= 2.9 mH I= 0.11 A E = 485 V A...
Consider a 3 ?F capacitor in series with a 2H inductor and 100? resistor connected to an AC voltage source v-10(V)cos(2ft). a) At what frequency is this circuit in resonance? b) Sketch the phasor diagram at the resonance frequency. c) Sketch the phasor diagram at the frequency twice the resonant frequency. d) Sketch the phasor diagram at the frequency 2 of the resonant frequency
. Find the capacitor voltage )for both<0 and 120 in the following circui 20 k? 12 v ( 40 kQ 30 kQ 3. Find the inductor current i() for both 1 < 0 and 1 20 in the following circuit. 3 2 4 H 24 v 8? 4 2
A) Given The .4H inductor at the left is subject to a current signal at the right: Circuit 2H 3 V(t) 0 1 2 3 B) Determine Step 1: The time expression for the current l(t). Step 2: The time expression for the voltage V(t). Step 3: The sketch of the voltage signal V(t). Step 4: The time expression for the power P(t). Step 5: The sketch of the power signal P(t). Step 6: The time expression for the energy...
a9a resistive load. Inductor 3-(35 pts) Design a converter that has an input voltage of 24 V DC and supplies 18 V DC to current is desired to be continuous and must not change more than 30 % of its average value voltage ripple must be lower than 2 %. Switching frequency is 10 kHz. a) Draw the circuit diagram. Calculate the duty ratio. Calculate values for 2 desired conditions of the inductor current and determine the value of the...
2.9 To reduce the switching harmonics present in the input current of a certain buck converter, an input filter consisting of inductor Li and capacitor Ci is added as shown in Fig. 2.32. Such filters are commonly used to meet regulations limiting conducted electromagnetic interference (EMI). For this problem, you may assume that all inductance and capacitance values are sufficiently large, such that all ripple magni- tudes are small CI Fig. 2.32 Addition of L-C input filter to buck converter,...
Assume that the inductor in this circuit is an ideal
(lossless) device, initial current is 0A. At t=0, turn on the
switch; at t= 5t, turn off the switch. a-f please
2. Assume that the inductor in this circuit is an ideal (lossless) device, initial current is OA. At t-o, turn on the switch; at t. 5 τ, turn off the switch. (50pts) For 0 s t s5r: switch on a) Find the Thevenin equivalent circuit for the circuit inside...
Please determine the following:
a) The initial inductor current i(0−)
b) The final inductor current i_final long after the switches
have changed.
c) A neat circuit schematic for the transient period.
d) A differential equation for the inductor current in the
circuit shown in part c.
e) The solution of the differential equation for t ≥ 0
3. You are given the circuit shown below. The switch was open for a long time before t = 0. lit) 5 H...
+ VDS Consider the Buck DC-to-DC converter shown above. Assume it is operated at a switching frequency, f 25 KHz, with a duty cycle, D- 0.4 a) Given the sketch of the inductor current, i(t), shown below, sketch the waveforms for the input current, (t), the output current, i(t), the diode current, ip(), and the capacitor current, ict).Also, compute their average, RMS and peak values. (Note: Some useful formulas are provided on the last page) 10 5 t (s) (b)...
