Question

The force of F = 55 N is applied to the cord when s = 2 m . The 6-kg collar is orginally at rest. Neglect friction. (Figure 1)

The force of F = 55 N is applied to the cord when s = 2 m . The 6-kg collar is orginally at rest. Neglect friction. (Figure 1)



Part A

Determine the velocity of the collar at s = 0.

Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is to the left and negative value if the velocity is to the right.

v = _______

engineering   Mechanical-Engineering
1 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

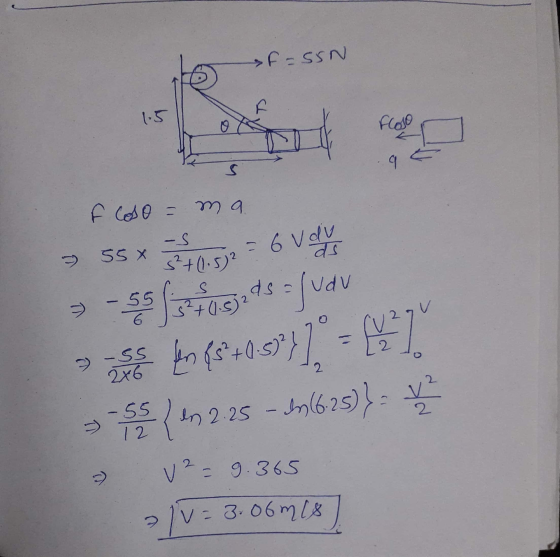

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
The force of F = 55 N is applied to the cord when s = 2 m . The 6-kg collar is orginally at rest. Neglect friction. (Figure 1)
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The force of F = 50 N is applied to the cord when s = 2 m

    The force of F = 50 N is applied to the cord when s = 2 m. If the 6-kg collar is orginally at rest, determine its velocity at s = 0. Neglect friction.

  • Problem 15.83 Part A The 12-lb collar B is at rest, and when it is in...

    Problem 15.83 Part A The 12-lb collar B is at rest, and when it is in the position shown the spring is unstretched. Another 1-1b collar A strikes it so that B slides 4 ft on the smooth rod before momentarily stopping. The coefficient of restitution between A and B is e = 0.4. (Figure 1) Determine the velocity of A just after impact measured to the left. Express your answer to three significant figures and include the appropriate units....

  • If the cord is subjected to a constant force of F 300 N and the 16 kg smooth collar starts from rest at A

     If the cord is subjected to a constant force of F 300 N and the 16 kg smooth collar starts from rest at A, determine the velocity of the collar when it reaches point B. Neglect the size of the pulley. (Figure 1)

  • A 2.0 kg object is moving to the right with a speed of1.0 m/s when it experiences the force shown in the figure.

    A 2.0 kg object is moving to the right with a speed of1.0 m/s when it experiences the force shown in the figure.What are the object’s speed and direction after the force ends? Express your answer to two significant figures and include the appropriate units. Enter positive value if the speed is directed to the right and negative value if the speed is directed to the left.

  • If the cord is subjected to a constant force of F = 300N and the 15 kg smooth collar starts from rest at A

    If the cord is subjected to a constant force of F = 300N and the 15 kg smooth collar starts from rest at A, determine the velocity of the collar when it reaches point B. Neglect the size of the pulley. ANSWER: 3.34 m/s

  • The 2-kg collar has a velocity of 4 m/s to the right when it is at...

    The 2-kg collar has a velocity of 4 m/s to the right when it is at A. It then travels along the smooth guide shown. The spring has an unstretched length of 100 mm and B is located just before the end of the curved portion of the rod. (Figure 1) Determine the collar's speed when its center reaches point B. Express your answer to three significant figures and include the appropriate units LuÀ 5 + 6 = ? Value...

  • 12 m/s When the 9 kg box reaches point it has a speed Neglect friction and...

    12 m/s When the 9 kg box reaches point it has a speed Neglect friction and the sure of the box. (Figure 1) Part A Determine how high the box reaches up the surface before it comes to a stop Express your answer to three significant figures and include the appropriate units. HAR O ? Value Units Figure Submit Request Answ Part B What is the resultant normal force on the surface at this point? Express your answer to three...

  • The 42-kg disk is rotating at w = 110 rad/s. When the force P is applied...

    The 42-kg disk is rotating at w = 110 rad/s. When the force P is applied to the brake as indicated by the graph. The coefficient of kinetic friction at B is mu_k = 0.5. Neglect the thickness of the brake. (Figure 1) Determine the time t needed to stay the disk from rotating. Express your answer to three significant figures and include the appropriate units.

  • Part A The collar A, having a mass of 0.75 kg is attached to a spring...

    Part A The collar A, having a mass of 0.75 kg is attached to a spring having a stiffness of k = 300 N/m. When rod BC rotates about the vertical axis, the collar slides outward along the smooth rod DE The spring is unstretched when s 0. Neglect the size of the collar. (Figure 1) Determine the constant speed of the collar in order that s 100 mm, Express your answer to three significant figures and include the appropriate...

  • it has a speed When the 7-kg box reaches point VA = 13 m/s. (Figure 1)...

    it has a speed When the 7-kg box reaches point VA = 13 m/s. (Figure 1) Part A Determine the normal force the box exerts on the surface when it reaches point B. Neglect friction and the size of the box. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 I Å O2 ? N N = = Value N Submit Previous Answers Request Answer x1/2 + yl/2 = 3 X Incorrect;...
