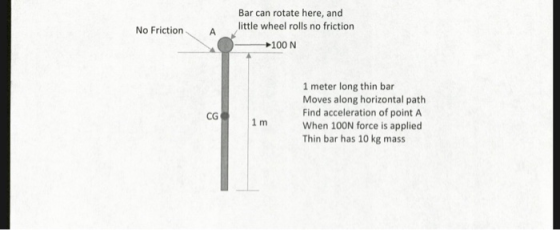

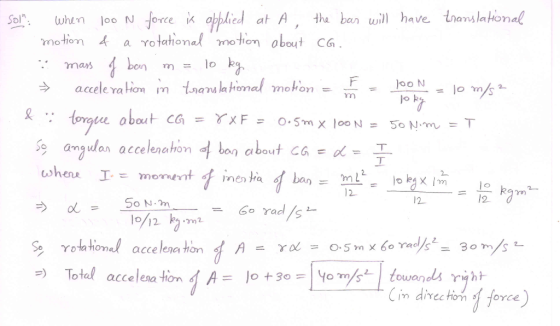

No Friction A Bar can rotate here, and little wheel rolls no friction 100 N CG...
An old grindstone, used for sharpening tools, is a solid cylindrical wheel that can rotate about...
An old grindstone, used for sharpening tools, is a solid cylindrical wheel that can rotate about its central axle with negligible friction. The radius of the wheel is 0.330 m. A constant tangential force of 300 N applied to its edge causes the wheel to have an angular acceleration of 0.908 rad/s2. a) What is the moment of inertia of the wheel (in kg, m2)? b) What is the mass (in kg) of the wheel? c) The wheel starts from...
Force on wheel (hrw8c11p7) A constant horizontal force of 14.0 N is applied to a wheel...
Force on wheel (hrw8c11p7) A constant horizontal force of 14.0 N is applied to a wheel of mass 12.0 kg and radius 0.20 m as shown in the figure. The wheel rolls without slipping on the horizontal surface, and the acceleration of its center of mass is 0.852 m/s2. What is the magnitude of the frictional force on the wheel? Tries 0/8 What is the rotational inertia of the wheel about an axis through its center of mass and perpendicular...
A heavy turntable, used for rotating large objects, is a solid cylindrical wheel that can rotate...
A heavy turntable, used for rotating large objects, is a solid cylindrical wheel that can rotate about its central axle with negligible friction. The radius of the wheel is 0.330 m. A constant tangential force of 200 N applied to its edge causes the wheel to have an angular acceleration of 0.896 rad/s2. (a) What is the moment of inertia of the wheel (in kg ·m2)? kg · m2 (b) What is the mass (in kg) of the wheel? kg...
An old grindstone, used for sharpening tools, is a solid cylindrical wheel that can rotate about...
An old grindstone, used for sharpening tools, is a solid cylindrical wheel that can rotate about its central axle with negligible friction. The radius of the wheel is 0.330 m. A constant tangential force of 300 N applied to its edge causes the wheel to have an angular acceleration of 0.968 rad/s2. (a) What is the moment of inertia of the wheel (in kg · m2)? ______kg · m2 (b) What is the mass (in kg) of the wheel? ________kg...
(hrw8c11p7) A constant horizontal force of 6.0 N is applied to a wheel of mass 12.0...
(hrw8c11p7) A constant horizontal force of 6.0 N is applied to a wheel of mass 12.0 kg and radius 0.30 m as shown in the figure. The wheel rolls without slipping on the horizontal surface, and the acceleration of its center of mass is 0.225 m/s2 What is the magnitude of the frictional force on the wheel? Submit Answer Tries 0/8 What is the rotational inertia of the wheel about an axis through its center of mass and perpendicular to...
A wheel (radius 0.6 m) is rolling on a horizontal surface with a center of mass...
A wheel (radius 0.6 m) is rolling on a horizontal surface with a center of mass acceleration of 0.7 m/s 2. If the force applied to the center of the wheel is 44.759 N and the wheel has a mass of 4.933 kg, what is the friction force acting between the wheel and the surface
The wheel in the figure rolls without sliding on a horizontal surface under the effect of...
The wheel in the figure rolls without sliding on a horizontal surface under the effect of a force applied directly to its center as in the figure. The magnitude of the force is F=54N and wheel has a mass of 11kg. Consider the wheel as a uniform solid cylinder whose moment of inertia about its center of mass is I = (1/2)MR2 Part A (Figure 1) What is the angular acceleration? Express your answer using three significant figures. ΟΙ ΑΣφ...
Q3: In the figure, a constant horizontal force of magnitude 16 N applies to a wheel...
Q3: In the figure, a constant horizontal force of magnitude 16 N applies to a wheel of mass8 kg and radius 0.4 m from its center of mass. The wheel rolls smoothly on the horizontal surface. If the rotational inertia of the wheel is 0.85 kg.m2, find the a) linear and angular acceleration of the wheel, b) direction and magnitude of the frictional force on the wheel? Answer: a) a = 1.2 in/s2 and α = 3 rad/s. b) 6.4...
A wheel with a weight of 390 N comes off a moving truck and rolls without...
A wheel with a weight of 390 N comes off a moving truck and rolls without slipping along a highway. At the bottom of a hill it is rotating at an angular velocity of 24.0 rad/s . The radius of the wheel is 0.555 m and its moment of inertia about its rotation axis is 0.800 MR2. Friction does work on the wheel as it rolls up the hill to a stop, at a height of h above the bottom...
In the figure, a constant horizontal force F app of magnitude 9.7 N is applied to...
In the figure, a constant horizontal force F app of magnitude 9.7 N is applied to a wheel of mass 14 kg and radius 0.44 m. The wheel rolls smoothly on the horizontal surface, and the acceleration of its center of mass has magnitude 0.49 m/s2. (a) What is the magnitude of the frictional force on the wheel? (b) What is the rotational inertia of the wheel about the rotation axis through its center of mass? app
A heavy turntable, used for rotating large objects, is a solid cylindrical wheel that can rotate about its central axle with negligible friction. The radius of the wheel is 0.330 m. A constant tangential force of 200 N applied to its edge causes the wheel to have an angular acceleration of 0.896 rad/s2. (a) What is the moment of inertia of the wheel (in kg ·m2)? kg · m2 (b) What is the mass (in kg) of the wheel? kg...
(hrw8c11p7) A constant horizontal force of 6.0 N is applied to a wheel of mass 12.0 kg and radius 0.30 m as shown in the figure. The wheel rolls without slipping on the horizontal surface, and the acceleration of its center of mass is 0.225 m/s2 What is the magnitude of the frictional force on the wheel? Submit Answer Tries 0/8 What is the rotational inertia of the wheel about an axis through its center of mass and perpendicular to...
The wheel in the figure rolls without sliding on a horizontal surface under the effect of a force applied directly to its center as in the figure. The magnitude of the force is F=54N and wheel has a mass of 11kg. Consider the wheel as a uniform solid cylinder whose moment of inertia about its center of mass is I = (1/2)MR2 Part A (Figure 1) What is the angular acceleration? Express your answer using three significant figures. ΟΙ ΑΣφ...
Q3: In the figure, a constant horizontal force of magnitude 16 N applies to a wheel of mass8 kg and radius 0.4 m from its center of mass. The wheel rolls smoothly on the horizontal surface. If the rotational inertia of the wheel is 0.85 kg.m2, find the a) linear and angular acceleration of the wheel, b) direction and magnitude of the frictional force on the wheel? Answer: a) a = 1.2 in/s2 and α = 3 rad/s. b) 6.4...
In the figure, a constant horizontal force F app of magnitude 9.7 N is applied to a wheel of mass 14 kg and radius 0.44 m. The wheel rolls smoothly on the horizontal surface, and the acceleration of its center of mass has magnitude 0.49 m/s2. (a) What is the magnitude of the frictional force on the wheel? (b) What is the rotational inertia of the wheel about the rotation axis through its center of mass? app
